🔧 Grand Cherokee - A/C Compressor Replacement

Replacing the A/C compressor on your Grand Cherokee involves safely recovering the refrigerant, removing the drive belt, swapping the compressor, then evacuating and recharging the system. This is done when the compressor leaks, seizes, makes loud noise, or won’t build proper A/C pressure.

Difficulty Level: Advanced | Estimated Time: 3-6 hours

Assumption: Your A/C system uses R-134a refrigerant (most 2016 models).

---

⚠️ Safety & Precautions

• ⚠️ Do not vent refrigerant—have it recovered with proper equipment (illegal and dangerous).
• ⚠️ Wear eye protection and gloves—refrigerant can cause frostbite and blindness.
• ⚠️ Disconnect the battery negative cable before unplugging the compressor connector.
• ⚠️ Never run the A/C system empty—low refrigerant can destroy the new compressor.
• ⚠️ Keep dirt out of A/C lines—cap openings immediately after disconnecting.
• ⚠️ Support the vehicle with jack stands—never rely on a jack alone.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Nitrile gloves
• Socket set (8mm-18mm)
• Ratchet (3/8")
• Long extension set (3/8")
• Torque wrench (3/8", 10-100 ft-lbs)
• Serpentine belt tool (specialty)
• Trim clip removal tool
• Line wrench set (13mm-19mm)
• Pick set
• A/C manifold gauge set (R-134a) (specialty)
• Vacuum pump (A/C) (specialty)
• Refrigerant recovery machine (specialty)
• Refrigerant scale (specialty)
• UV dye leak light (optional)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• A/C compressor assembly - Qty: 1
• A/C compressor sealing O-ring set - Qty: 1
• PAG A/C oil (manufacturer-specified type) - Qty: 1 bottle
• R-134a refrigerant - Qty: 2-3 cans
• Serpentine belt (recommended if cracked/glazed) - Qty: 1
• A/C system flush solvent (only if compressor failed internally) - Qty: 1
• Condenser/receiver-drier assembly (only if system contaminated or drier is service-required) - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear wheels.
• Have the refrigerant professionally recovered using a refrigerant recovery machine (specialty).
• Disconnect the battery with a 10mm socket (negative cable first) and isolate the cable so it can’t spring back.
• Raise the front of the SUV with a floor jack and support it securely on jack stands.
• A “line wrench” grips fittings without rounding them.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the lower splash shield

• Use a trim clip removal tool to remove plastic push-pins.
• Use an 8mm socket (or 10mm socket depending on fasteners) to remove shield screws/bolts.
• Set the shield and hardware aside in a tray so nothing gets lost.

Step 2: Relieve serpentine belt tension and remove the belt from the compressor

• Place the serpentine belt tool (specialty) on the belt tensioner and rotate it to release belt tension.
• Slip the belt off the A/C compressor pulley only (you don’t have to remove it from every pulley if you can keep it routed).
• Snap a photo of belt routing first.

Step 3: Disconnect the compressor electrical connector

• Locate the compressor connector near the compressor body.
• Use a pick set to gently lift the lock tab (if equipped), then unplug the connector by hand.

Step 4: Disconnect the A/C refrigerant lines at the compressor

• Verify the system is empty (recovered) before opening any line.
• Use the correct-size line wrench to loosen the A/C line fitting(s) at the compressor.
• Immediately cap/cover the open line ends and compressor ports to keep moisture and dirt out.
• Remove old O-rings with a pick set (do not scratch the sealing surface).

Step 5: Unbolt and remove the A/C compressor

• Support the compressor with one hand as you remove the mounting bolts.
• Use the appropriate socket set (typically 13mm-15mm) with a ratchet (3/8") and long extension to remove the compressor bolts.
• Carefully lower and remove the compressor from the engine bay.
• Torque to OEM specification during reinstallation using a torque wrench.

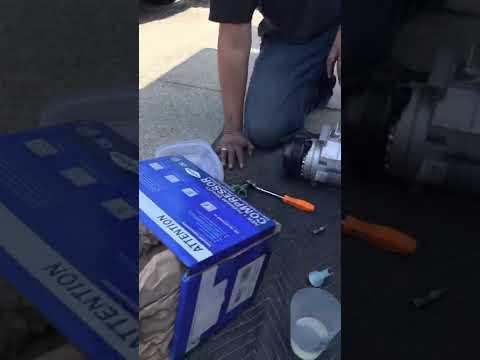

Step 6: Prepare the new compressor (oil balancing)

• Check the new compressor paperwork for “oil pre-fill” information.
• If you are reusing the rest of the system and the old compressor did not grenade internally, match the oil amount: drain the old compressor into a measuring cup (if possible) and add the same amount of PAG A/C oil to the new one.
• Hand-rotate the compressor hub a few turns to distribute oil (do not use power tools).
• Too much oil can reduce cooling.

Step 7: Install the new compressor

• Position the compressor and start all mounting bolts by hand to prevent cross-threading.
• Tighten bolts evenly using a ratchet (3/8").
• Final-tighten with a torque wrench: Torque to OEM specification.

Step 8: Install new O-rings and reconnect A/C lines

• Lightly lubricate new O-rings with PAG A/C oil (a thin film only).
• Install O-rings onto the line ends/ports as designed (don’t twist them).
• Reconnect lines and tighten using the correct line wrench.
• Final-tighten with a torque wrench where applicable: Torque to OEM specification.

Step 9: Reconnect the compressor electrical connector

• Plug the connector in until it clicks/locks.
• Gently tug to confirm it’s fully seated.

Step 10: Reinstall the serpentine belt

• Route the belt correctly using your photo.
• Use the serpentine belt tool (specialty) to rotate the tensioner and slip the belt fully onto the compressor pulley.
• Double-check the belt is centered on every pulley rib.

Step 11: Evacuate (vacuum) the A/C system

• Connect the A/C manifold gauge set (R-134a) (specialty) to the high/low service ports.
• Connect the center hose to the vacuum pump (A/C) (specialty).
• Pull vacuum for at least 30-45 minutes (longer if humidity is high).
• Close valves and verify it holds vacuum for 10-15 minutes (if it doesn’t, you still have a leak).

Step 12: Recharge with refrigerant by weight

• Place refrigerant on a refrigerant scale (specialty) and charge the system by the under-hood label specification.
• Start the engine, set A/C to MAX, blower high, and continue charging as instructed by your gauge set process.
• Do not overcharge—too much refrigerant can raise pressures and reduce cooling.

Step 13: Reinstall splash shield and lower the vehicle

• Reinstall the splash shield using the 8mm socket/10mm socket and trim clip removal tool (for the push-pins).
• Lower the vehicle safely off the jack stands using the floor jack.

Step 14: Reconnect the battery

• Reconnect the negative cable using a 10mm socket.
• Make sure the terminal is snug and doesn’t rotate by hand.

---

✅ After Repair

• Run the A/C and confirm the compressor engages and cycles normally.
• Check vent temperature and listen for abnormal noise.
• Inspect all fittings for oily residue (a common sign of a leak).
• If you used UV dye leak light (optional), inspect for dye at the compressor and line connections.
• If the old compressor failed internally (metal debris), the correct fix is to flush/replace contaminated components before running the new compressor.

---

💰 DIY vs Shop Cost

Shop Cost: ₹25,000-₹55,000 (parts + labor + evac/recharge)

DIY Cost: ₹12,000-₹30,000 (parts + refrigerant/oil; specialty equipment not included)

You Save: ₹13,000-₹25,000 by doing it yourself!

Shop labor rates vary but typically run ₹1,000-₹2,500/hour locally. This repair takes a shop approximately 3-5 hours.

---
