🔧 QX80 - A/C Compressor Replacement

Your A/C compressor is the pump that circulates refrigerant and oil through the A/C system. Replacing it is a bigger job because the refrigerant must be safely recovered, then the system must be vacuumed and recharged to spec to avoid leaks and poor cooling.

Difficulty Level: Advanced | Estimated Time: 4-7 hours

Assumption: Stock A/C system using R-134a; recharge amount is on your under-hood A/C label.

---

⚠️ Safety & Precautions

• ⚠️ Refrigerant is hazardous and illegal to vent—use an A/C recovery machine (or have a shop recover it).
• ⚠️ Keep hands clear of the serpentine belt and pulleys; they can pinch badly.
• ⚠️ Wear eye protection and gloves; refrigerant/oil can cause frostbite and eye injury.
• Disconnect the negative battery cable before unplugging the compressor connector.
• Cap/plug A/C lines immediately after disconnecting to keep moisture out (moisture ruins the system).

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Metric socket set (8mm-19mm)
• 3/8" drive ratchet
• 1/2" drive ratchet
• Torque wrench (10-100 ft-lbs)
• Serpentine belt tool (specialty)
• Trim clip remover
• Flathead screwdriver
• Pick set
• Line caps/plugs assortment
• Drain pan
• A/C manifold gauge set (specialty)
• A/C vacuum pump (specialty)
• Refrigerant recovery machine (specialty)
• Refrigerant scale (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• A/C compressor - Qty: 1
• A/C compressor O-ring/seal kit - Qty: 1
• PAG A/C compressor oil (vehicle-spec) - Qty: 1
• R-134a refrigerant - Qty: As required by under-hood label
• Receiver/drier (or condenser with integrated drier, if required) - Qty: 1
• Serpentine belt - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear wheels.
• Have the refrigerant recovered with an A/C recovery machine (a machine that removes refrigerant into a storage tank).
• Disconnect the negative battery cable using a 10mm socket.
• Let the engine cool fully; you’ll be working around hot metal and tight spaces.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Recover the refrigerant

• Connect the A/C manifold gauge set (specialty) (the red/blue gauges and hoses used to service A/C) to the high/low service ports.
• Use the refrigerant recovery machine (specialty) to recover all refrigerant from the system.
• Once pressures are at/near zero, disconnect the machine per its instructions.

Step 2: Raise the front and remove the lower splash shield

• Lift the front with a floor jack (rated 3-ton minimum) and support with jack stands (rated 3-ton minimum).
• Remove the lower engine splash shield using a trim clip remover, flathead screwdriver, and metric socket set (8mm-19mm) as needed.

Step 3: Remove the serpentine belt from the A/C compressor

• Relieve belt tension using a serpentine belt tool (specialty).
• Slip the belt off the A/C compressor pulley first, then carefully release the tensioner.
• Tip: Take a quick photo of belt routing.

Step 4: Unplug the compressor electrical connector

• Press the connector lock and unplug it by hand; use a pick set gently if the lock is stuck.
• Do not pull on the wires—pull on the connector body.

Step 5: Disconnect the refrigerant lines at the compressor

• Place a drain pan underneath (some oil may drip out).
• Remove the line retaining bolt(s) using the appropriate size from your metric socket set (8mm-19mm) and a 3/8" drive ratchet.
• Carefully wiggle the lines free—do not pry hard on aluminum lines.
• Immediately install line caps/plugs assortment on the open lines and compressor ports.

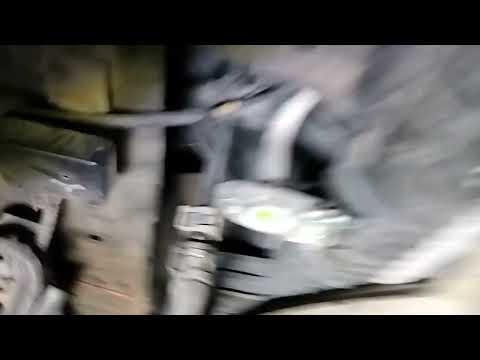

Step 6: Remove the A/C compressor

• Support the compressor with one hand.
• Remove the compressor mounting bolts using a metric socket set (8mm-19mm) and ratchet.
• Remove the compressor from below, guiding it out carefully.
• Torque to Infiniti service manual specification using a torque wrench (10-100 ft-lbs) during reinstallation.

Step 7: Match oil quantity (critical)

• Drain the old compressor oil into a measuring container over your drain pan.
• Add the same amount of fresh PAG A/C compressor oil (vehicle-spec) into the new compressor (unless the new compressor’s instructions state it is pre-filled and how to adjust).
• Slowly rotate the compressor clutch/pulley by hand a few turns to distribute oil.
• Tip: Too much oil reduces cooling.

Step 8: Install new O-rings and reinstall the compressor

• Remove old O-rings from the A/C line ends using a pick set.
• Install new O-rings from the A/C compressor O-ring/seal kit.
• Lightly lubricate O-rings with clean PAG A/C compressor oil (vehicle-spec) so they don’t tear on install.
• Position the compressor and hand-start all mounting bolts using your metric socket set (8mm-19mm).
• Tighten bolts evenly, then torque to Infiniti service manual specification using a torque wrench (10-100 ft-lbs).

Step 9: Reconnect A/C lines and electrical connector

• Remove the line caps/plugs assortment and immediately connect the lines.
• Install and tighten the line retaining bolt(s) using a metric socket set (8mm-19mm) and ratchet, then torque to Infiniti service manual specification with a torque wrench (10-100 ft-lbs).
• Plug in the compressor connector until it clicks.

Step 10: Reinstall the serpentine belt and shields

• Route the belt correctly and relieve tension using the serpentine belt tool (specialty).
• Make sure the belt is fully seated in every pulley groove.
• Reinstall the splash shield using a trim clip remover, flathead screwdriver, and metric socket set (8mm-19mm).
• Lower the vehicle from the jack stands using the floor jack.

Step 11: Vacuum the system and recharge with R-134a

• Reconnect the A/C manifold gauge set (specialty).
• Connect the A/C vacuum pump (specialty) and pull vacuum for at least 30–45 minutes.
• Close the valves and verify it holds vacuum (a vacuum drop suggests a leak).
• Recharge using a refrigerant scale (specialty) to the exact amount listed on your under-hood A/C label.

Step 12: Reconnect battery

• Reconnect the negative battery cable using a 10mm socket.

---

✅ After Repair

• Start the engine and set A/C to MAX; verify the compressor engages and cabin air gets cold.
• Check for abnormal belt noise and confirm the belt tracks straight on all pulleys.
• Inspect the compressor and line connections for oily residue (common sign of a slow leak).
• If cooling is weak or pressures look wrong, stop and recheck for leaks, oil amount errors, or a restricted condenser/expansion device.

---
