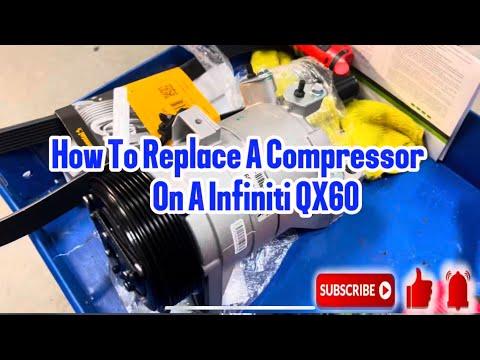

🔧 QX60 - A/C Compressor Replacement

Replacing the A/C compressor on your QX60 means safely recovering the refrigerant, removing the drive belt and compressor, then installing the new compressor with fresh O-rings and the correct oil amount. The job must end with a vacuum leak-check and an accurate refrigerant recharge, or the A/C can fail quickly.

Difficulty Level: Advanced | Estimated Time: 4-7 hours

Assumption: Factory R-134a system; recharge amount is on the under-hood label.

---

⚠️ Safety & Precautions

• ⚠️ Refrigerant is under high pressure—do not vent to air; recover it with proper equipment.
• ⚠️ Wear eye protection and gloves; liquid refrigerant can cause frostbite.
• ⚠️ Keep hands/tools clear of the belt drive; never work near a running engine.
• ⚠️ Support the vehicle with jack stands; never rely on a jack alone.
• ⚠️ Disconnect the negative battery terminal before unplugging the compressor.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 10mm socket
• 12mm socket
• 14mm socket
• 3/8" drive ratchet
• 3/8" drive torque wrench (10–80 ft-lbs range)
• Serpentine belt tool (specialty)
• Trim clip removal tool
• Flat-blade screwdriver
• Pick tool
• Line/cap plug kit
• A/C manifold gauge set for R-134a
• Vacuum pump (specialty)
• Refrigerant recovery machine (specialty)
• Refrigerant scale (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• A/C compressor - Qty: 1
• A/C compressor manifold O-ring set - Qty: 1
• PAG A/C compressor oil (Nissan/Infiniti compatible) - Qty: 1
• R-134a refrigerant - Qty: As specified on under-hood label
• Serpentine drive belt - Qty: 1 (optional if belt is cracked/glazed)

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Have the refrigerant recovered with a refrigerant recovery machine (specialty) before opening any A/C lines.
• Disconnect the negative battery terminal using a 10mm socket.
• Let the engine cool completely so you don’t burn yourself near the radiator and exhaust.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Recover the refrigerant (required)

• Connect the A/C manifold gauge set for R-134a to the high/low service ports.
• Use the refrigerant recovery machine (specialty) to recover the refrigerant until both gauges read near 0 psi.
• Never crack a line “to see if it’s empty.”

Step 2: Raise the front and remove lower covers

• Lift the front with a floor jack (rated 3-ton minimum) and support with jack stands (rated 3-ton minimum).
• Remove the lower splash shield/under-cover clips using a trim clip removal tool and flat-blade screwdriver.

Step 3: Remove the serpentine belt

• Relieve belt tension using a serpentine belt tool (specialty) on the belt tensioner.
• Slip the belt off the A/C compressor pulley, then remove the belt from the engine bay.
• Take a quick photo of belt routing.

Step 4: Disconnect the compressor electrical connector

• Press the lock tab and unplug the compressor connector by hand; use a pick tool gently if the tab is stuck.
• Do not pull on the wires—pull on the connector body.

Step 5: Remove the A/C line manifold from the compressor

• Place caps from the line/cap plug kit nearby so you can seal the lines quickly.
• Remove the manifold retaining bolt(s) using a 12mm socket.
• Carefully wiggle the manifold off the compressor (don’t bend the aluminum lines).
• Immediately cap/plug the open lines using the line/cap plug kit.

Step 6: Remove the compressor

• Remove the compressor mounting bolts using a 14mm socket.
• Support the compressor with one hand as the last bolt comes out, then lower it out from underneath.
• Torque reference for install: Torque to 49 Nm (36 ft-lbs) for compressor mounting bolts.

Step 7: Prep the new compressor (oil + O-rings)

• Remove and replace the O-rings on the line manifold using a pick tool.
• Lightly coat the new O-rings with clean PAG A/C compressor oil (this helps them seal and prevents tearing).
• If your new compressor is not pre-filled, add the correct amount/type of oil for your QX60 using PAG A/C compressor oil.
• Spin the compressor hub by hand 10 turns.

Step 8: Install the new compressor

• Position the compressor and start the mounting bolts by hand to avoid cross-threading.
• Tighten mounting bolts using a 14mm socket, then torque wrench.
• Torque to 49 Nm (36 ft-lbs) for compressor mounting bolts.

Step 9: Reinstall the A/C line manifold

• Remove the caps/plugs and install the manifold straight in (don’t force it) using a 12mm socket.
• Torque to 12 Nm (9 ft-lbs) for the manifold bolt(s).
• Reconnect the compressor electrical connector by hand until it clicks.

Step 10: Reinstall the serpentine belt and covers

• Route the belt correctly and relieve tension using the serpentine belt tool (specialty), then slip the belt on.
• Visually confirm the belt is fully seated in every pulley groove.
• Reinstall the under-cover using the trim clip removal tool and flat-blade screwdriver.

Step 11: Evacuate (vacuum) the system and leak-check

• Reconnect the battery negative terminal using a 10mm socket.
• Connect the A/C manifold gauge set for R-134a and run a vacuum pump (specialty) for at least 30–45 minutes.
• Close the valves and confirm the system holds vacuum for 10–15 minutes (if it rises, you likely have a leak).

Step 12: Recharge by weight (not by pressure)

• Charge the exact refrigerant amount shown on the under-hood label using an R-134a refrigerant source and a refrigerant scale (specialty).
• Start the engine, set A/C to MAX/LO, and confirm the compressor cycles normally and vents blow cold.
• Weight-based charge prevents over/under-fill.

---

✅ After Repair

• Verify cold air at the vents and stable idle with A/C on.
• Check for leaks around the compressor manifold area (listen for hissing; look for oily residue).
• Recheck belt tracking after a short test drive (belt should run centered on pulleys).
• If cooling is weak or pressures look abnormal, stop and re-check for leaks and charge amount.

---

💰 DIY vs Shop Cost

Shop Cost: $1,200-$2,200 (parts + labor)

DIY Cost: $350-$900 (parts only)

You Save: $850-$1,300 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 4-6 hours.

---
