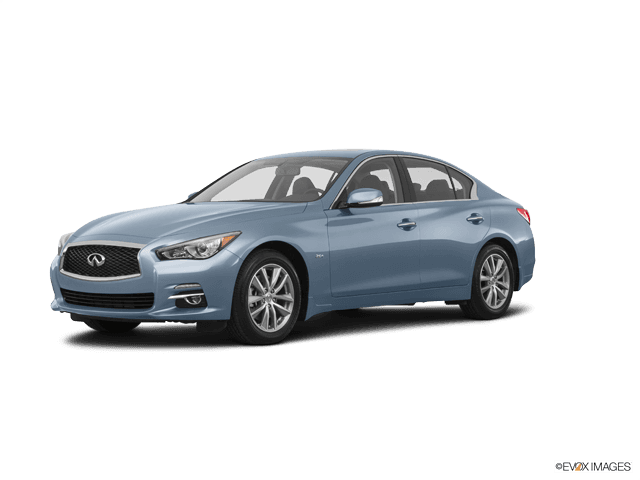

🔧 Q50 - A/C Compressor Replacement

Replacing the A/C compressor on your Q50 means removing the drive belt, disconnecting the refrigerant lines, swapping the compressor, then evacuating and recharging the system. This job is very doable mechanically, but the refrigerant recovery/recharge portion requires A/C service equipment (or a shop).

Difficulty Level: Advanced | Estimated Time: 3-6 hours

---

⚠️ Safety & Precautions

• ⚠️ Refrigerant must be recovered with proper equipment; venting to air is illegal and dangerous.
• ⚠️ Wear safety glasses and gloves; liquid refrigerant can cause instant frostbite.
• ⚠️ Work on a cool engine; hot turbo/exhaust parts can burn you.
• ⚠️ Support the car with jack stands; never rely on a floor jack.
• ⚠️ Keep dirt out of A/C lines; cap/plug openings immediately.
• ⚠️ Battery disconnect is recommended before unplugging compressor wiring.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Metric socket set (8mm-19mm)
• 3/8" drive ratchet
• 1/2" drive breaker bar
• Torque wrench (5-80 ft-lbs range)
• Serpentine belt tool (specialty)
• Trim clip remover tool
• Flathead screwdriver
• Pick tool set
• Line caps/plugs assortment (specialty)
• Catch pan
• Shop rags
• A/C manifold gauge set (specialty)
• Refrigerant recovery machine (specialty)
• Vacuum pump (specialty)
• Refrigerant scale (specialty)
• UV leak detection dye kit (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• A/C compressor (with clutch/control valve as equipped) - Qty: 1
• A/C compressor O-ring set - Qty: 1
• A/C refrigerant (R-134a) - Qty: As needed to match underhood label
• A/C compressor oil (PAG, OEM-specified) - Qty: As needed
• A/C receiver/drier or desiccant element (if serviceable separately) - Qty: 1
• Serpentine belt (recommended if worn or oil-soaked) - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Plan for A/C service equipment: a recovery machine pulls refrigerant out safely; a vacuum pump removes air/moisture so the system cools correctly.
• Disconnect the negative battery cable using a 10mm socket.
• Assumption: Procedure covers the common belt-driven compressor layout on the Q50 2.0T; fastener locations may vary slightly by production date.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Recover the refrigerant (required)

• Connect the A/C manifold gauge set (specialty) to the high/low service ports.
• Use the refrigerant recovery machine (specialty) to recover all refrigerant from the system.
• Never loosen A/C lines before recovery.

Step 2: Raise the front of the car and remove undercovers

• Lift the front with a floor jack (rated 3-ton minimum) and support with jack stands (rated 3-ton minimum).
• Remove the lower engine splash shield/undercover fasteners using a trim clip remover tool and metric sockets (8mm-10mm).

Step 3: Remove the serpentine belt

• Relieve belt tension using a serpentine belt tool (specialty) (this is a long handled tool that rotates the tensioner safely in tight spaces).
• Slip the belt off the A/C compressor pulley and remove the belt from the front accessories.
• If you’re reusing the belt, take a photo of the belt routing before removal.

Step 4: Unplug the compressor electrical connector

• Release the connector lock with a pick tool set (a small hooked tool for clips) and unplug the compressor connector by hand.
• Tuck the harness safely out of the way.

Step 5: Disconnect the refrigerant lines from the compressor

• Place a catch pan under the compressor area.
• Remove the A/C line retaining bolt(s) using the correct metric socket.
• Gently wiggle and pull the lines straight out (do not pry hard).
• Immediately cap the open lines and compressor ports with line caps/plugs assortment (specialty).

Step 6: Remove the compressor from its bracket

• Support the compressor with one hand.
• Remove the compressor mounting bolts using a metric socket set (typically 12mm-14mm) and a ratchet.
• Lower the compressor out carefully; it’s heavier than it looks.

Step 7: Prepare the new compressor (oil + O-rings)

• Remove the shipping caps from the new compressor right before install.
• Drain and measure oil from the old compressor into a catch pan, then add the same amount of A/C compressor oil (PAG, OEM-specified) to the new compressor unless the new unit’s instructions say otherwise.
• Replace the line O-rings using a pick tool set.
• Lightly coat new O-rings with a small amount of A/C compressor oil by hand so they don’t pinch.
• Dry O-rings love to leak.

Step 8: Install the new compressor

• Position the compressor and hand-start all mounting bolts.
• Tighten using a ratchet, then final-tighten with a torque wrench to factory specification.

Step 9: Reconnect the refrigerant lines

• Remove the caps/plugs and insert the lines straight into the compressor ports.
• Install the retaining bolt(s) using the correct metric socket.
• Final-tighten with a torque wrench to factory specification.

Step 10: Reconnect electrical and reinstall the belt

• Plug in the compressor connector until it clicks (use a pick tool set only if needed to align the lock).
• Route the belt correctly and relieve tension with the serpentine belt tool (specialty) to slip it back on.
• Double-check the belt is fully seated in every pulley groove.

Step 11: Reinstall undercovers and lower the car

• Reinstall the splash shield using a trim clip remover tool, flathead screwdriver, and 8mm-10mm sockets.
• Lower the car from the jack stands using the floor jack.

Step 12: Evacuate and recharge the A/C system

• Connect the A/C manifold gauge set (specialty).
• Pull vacuum using the vacuum pump (specialty) for at least 30–45 minutes.
• Close valves and verify it holds vacuum (a drop suggests a leak).
• Recharge by weight using a refrigerant scale (specialty) with R-134a to the exact amount on the underhood A/C label.
• Charge by weight, not pressure.

---

✅ After Repair

• Start the engine and turn A/C to LO with the blower on high.
• Confirm the compressor engages and the center vents blow cold after a few minutes.
• Check for leaks at the compressor line fittings (UV dye helps; use a UV leak detection dye kit (specialty) if desired).
• Listen for belt squeal; if present, recheck belt routing and seating.
• Recheck for oily residue around fittings after a short test drive.

---
