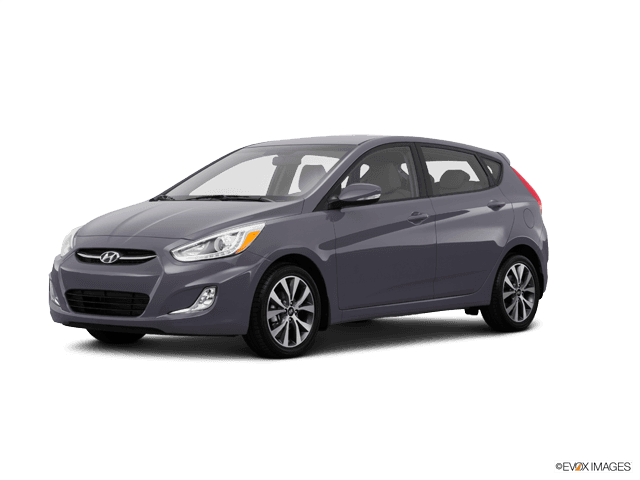

🔧 Accent - A/C Compressor Replacement

Replacing the A/C compressor on your Accent involves safely recovering the refrigerant, removing the drive belt and A/C lines, swapping the compressor, then vacuuming and recharging the system to the correct amount. This repair matters because an incorrect recharge or dirt/moisture in the system can quickly damage the new compressor.

Difficulty Level: Advanced | Estimated Time: 3-6 hours

Assumption: Your Accent uses R-134a refrigerant (most 2016 Accents do).

---

⚠️ Safety & Precautions

• ⚠️ Do not vent refrigerant to the air; it must be recovered with proper equipment.
• ⚠️ Wear safety glasses and gloves; liquid refrigerant can cause frostbite.
• ⚠️ Keep the A/C system sealed; dirt and moisture can ruin the new compressor.
• ⚠️ Let the engine cool before working near the radiator and exhaust.
• ⚠️ Disconnect the negative battery cable before unplugging the compressor clutch connector.
• ⚠️ Support the vehicle with jack stands; never rely on a floor jack alone.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Metric socket set 8mm-17mm
• 3/8" drive ratchet
• 3/8" drive extensions set
• Metric combination wrench set 10mm-17mm
• Torque wrench 10-80 Nm
• Flat trim clip tool
• Phillips screwdriver
• Serpentine belt tool 3/8" drive
• A/C line plug kit
• Manifold gauge set for R-134a (specialty)
• Refrigerant recovery machine (specialty)
• Vacuum pump (specialty)
• Refrigerant scale (specialty)
• UV leak detection light

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• A/C compressor (with clutch/pulley) - Qty: 1
• A/C compressor O-ring set (suction/discharge) - Qty: 1
• Receiver/drier or condenser/drier assembly (if serviced separately) - Qty: 1
• PAG A/C compressor oil (PAG 46 / Hyundai SP-10 equivalent) - Qty: 1 bottle
• R-134a refrigerant - Qty: ~18 oz (system charge by weight)
• Serpentine drive belt (optional if worn/cracked) - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Open the hood and remove the key from the vehicle.
• Use a 10mm socket to disconnect the negative battery terminal and isolate it.
• Have the refrigerant recovered before opening any A/C line.
• Lay out clean caps/plugs; you’ll plug A/C lines immediately after disconnecting them.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Recover the refrigerant (must be done first)

• Use a refrigerant recovery machine (specialty); it’s the device that pulls refrigerant out into a storage tank.
• Connect the manifold gauge set for R-134a (specialty) to the high and low service ports.
• Follow the recovery machine prompts until both gauges read near 0 psi and the machine indicates recovery is complete.

Step 2: Raise the front and remove the lower splash shield

• Use a floor jack (rated 3-ton minimum) to lift the front of the car and set it on jack stands (rated 3-ton minimum).
• Use a flat trim clip tool and Phillips screwdriver to remove the clips/screws holding the lower engine splash shield.

Step 3: Remove the drive belt from the A/C compressor

• Locate the belt tensioner.
• Use a serpentine belt tool 3/8" drive (a long handle that rotates the tensioner safely) to relieve tension.
• Slide the belt off the A/C compressor pulley and slowly release the tensioner.
• Tip: Take a quick photo of belt routing.

Step 4: Unplug the compressor electrical connector

• Use your hand or a flat trim clip tool to release the lock tab and unplug the compressor clutch/coil connector.

Step 5: Disconnect the A/C refrigerant lines from the compressor

• Place a rag under the compressor area.
• Use a 10mm socket (common) or the correct metric socket to remove the refrigerant line retaining bolt(s) at the compressor manifold.
• Carefully pull the lines straight off the compressor.
• Immediately cap the open lines and compressor ports using an A/C line plug kit.

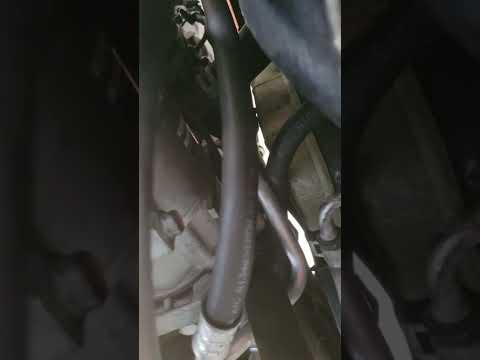

Step 6: Remove the A/C compressor from its bracket

• Support the compressor with one hand.
• Use a 12mm socket or 14mm socket (varies by fastener) with a 3/8" drive ratchet and extensions set to remove the compressor mounting bolts.
• Remove the compressor from below (usually the easiest path) and set it on a clean surface.
• Torque to 25-30 Nm (18-22 ft-lbs) for compressor mounting bolts (typical for this platform).

Step 7: Match and set compressor oil amount

• Drain the old compressor oil into a clean measuring container by rotating the compressor hub by hand and tipping the ports downward.
• Measure the amount you removed.
• Add the same amount of PAG A/C compressor oil (PAG 46 / Hyundai SP-10 equivalent) into the new compressor through the suction port.
• Slowly rotate the compressor hub by hand several turns to distribute oil.
• Tip: Keep everything clean; no shop rags inside ports.

Step 8: Replace O-rings and install the new compressor

• Remove old O-rings from the line ends.
• Lightly coat new O-rings with PAG A/C compressor oil and install them.
• Position the compressor and start all mounting bolts by hand.
• Use a torque wrench 10-80 Nm to tighten mounting bolts: Torque to 25-30 Nm (18-22 ft-lbs).

Step 9: Reconnect A/C lines and electrical connector

• Remove the caps/plugs.
• Seat the A/C lines squarely onto the compressor manifold.
• Use a 10mm socket to install the retaining bolt(s): Torque to 9-12 Nm (80-105 in-lbs).
• Reconnect the compressor electrical connector until it clicks.

Step 10: Reinstall the drive belt and splash shield

• Route the belt correctly.
• Use the serpentine belt tool 3/8" drive to move the tensioner and slip the belt onto the A/C compressor pulley.
• Visually confirm the belt is seated in every pulley groove.
• Reinstall the splash shield using the flat trim clip tool and Phillips screwdriver.

Step 11: Vacuum the A/C system (remove air and moisture)

• Reconnect the manifold gauge set for R-134a (specialty).
• Connect a vacuum pump (specialty); it’s a pump that pulls the system into deep vacuum to boil out moisture.
• Run vacuum for 30-45 minutes.
• Close the manifold valves and verify vacuum holds for 10 minutes (if it rises, you likely have a leak).

Step 12: Recharge refrigerant by weight

• Use a refrigerant scale (specialty) to charge by weight (this prevents under/overcharge).
• Charge the system with R-134a refrigerant to approximately 500 g (17.6 oz) total (common spec for this model).
• Reconnect the negative battery cable using a 10mm socket.

Step 13: Initial start and performance check

• Start the engine.
• Set A/C to MAX, recirculation ON, blower high.
• Confirm the compressor clutch engages and the air gets cold.
• Use a UV leak detection light to check for dye/oil signs at the compressor and line connections.

---

✅ After Repair

• Recheck the belt alignment with the engine off.
• Listen for abnormal squeal/grind noises at the compressor pulley.
• Verify the center vent temperature drops and stays stable at idle.
• If cooling is weak, recheck charge weight and inspect for leaks.

---

💰 DIY vs Shop Cost

Shop Cost: $900-$1,800 (parts + labor + recover/evac/recharge)

DIY Cost: $250-$750 (parts only, assuming you have access to A/C service equipment)

You Save: $650-$1,050 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 3-5 hours.

---
