🔧 Pilot - A/C Compressor Replacement

You’ll remove the old A/C compressor, install the new one with fresh sealing O-rings, then evacuate and recharge the A/C system. This job is very doable for a careful DIYer, but handling refrigerant requires the right equipment and safe procedures to prevent injury and system damage.

Difficulty Level: Advanced | Estimated Time: 3-6 hours

Assumption: Refrigerant is R-134a and recharge amount is read from the under-hood label.

---

⚠️ Safety & Precautions

• ⚠️ Refrigerant can cause frostbite and eye injury—wear gloves and safety glasses.
• ⚠️ Do not vent refrigerant to the air. Recover it with proper equipment.
• ⚠️ Keep hands clear of the serpentine belt and pulleys.
• ⚠️ Let the engine cool before working near the radiator fans and exhaust.
• ⚠️ Disconnecting the battery is recommended before unplugging the compressor clutch/control connector.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Metric socket set (8mm-19mm)
• 10mm socket
• 12mm socket
• 14mm socket
• 3/8" drive ratchet
• 3/8" drive torque wrench (10-80 ft-lbs)
• Serpentine belt tool
• Trim clip remover
• Flat blade screwdriver
• Pick set
• A/C manifold gauge set (specialty)
• Vacuum pump (specialty)
• Refrigerant recovery machine (specialty)
• Refrigerant scale (specialty)
• Line caps/plugs assortment

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• A/C compressor assembly - Qty: 1
• A/C compressor O-ring kit (suction/discharge) - Qty: 1
• PAG A/C oil (correct type for your compressor) - Qty: 1
• R-134a refrigerant - Qty: As specified on under-hood label
• Serpentine belt - Qty: 1 (optional, if worn/cracked)

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Recover the refrigerant using a refrigerant recovery machine (a machine that safely removes and stores refrigerant). Do not loosen A/C lines until the system is empty.
• Disconnect the battery: use a 10mm socket to remove the negative terminal and isolate it so it can’t spring back.
• Raise the front safely with a floor jack and support with jack stands at the proper lift points.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove lower splash shield (if equipped)

• Use a trim clip remover and 10mm socket to remove clips/bolts holding the lower engine cover/splash shield.
• Set the fasteners aside in a small tray so they don’t get lost.

Step 2: Remove the serpentine belt from the compressor

• Locate the belt tensioner.
• Use a serpentine belt tool or 14mm socket on the tensioner to rotate it and relieve belt tension.
• Slip the belt off the A/C compressor pulley first, then slowly release the tensioner.
• Tip: Take a belt-routing photo first.

Step 3: Unplug the compressor electrical connector

• Find the compressor connector and release the lock tab using a flat blade screwdriver (gentle pressure).
• Disconnect the plug and move the harness out of the way.

Step 4: Remove the A/C suction and discharge lines from the compressor

• Verify the refrigerant has been fully recovered before opening the system.
• Use a 10mm socket (typical) to remove the line retaining bolt(s) at the compressor manifold.
• Carefully pull the lines straight off (do not bend them).
• Immediately cap/plug the open lines and compressor ports using line caps/plugs to keep moisture and dirt out.

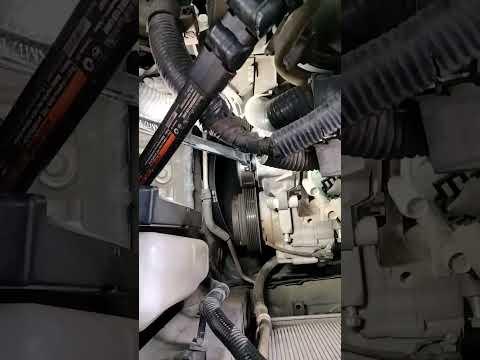

Step 5: Remove the compressor mounting bolts and remove the compressor

• Support the compressor with one hand.
• Use a 12mm socket and/or 14mm socket to remove the compressor mounting bolts.
• Lower the compressor out from underneath the engine bay.
• Torque to 25 N·m (18 ft-lbs) for compressor mounting bolts (verify with service information if your bolt size differs).

Step 6: Match oil amount (critical)

• Drain the old compressor oil into a clean measuring container.
• Add the same amount of new PAG A/C oil to the new compressor unless the new compressor instructions specify a different procedure.
• Slowly rotate the compressor hub by hand a few turns to distribute oil evenly.
• Tip: Too much oil reduces cooling.

Step 7: Install new O-rings on the A/C lines

• Use a pick set to remove old O-rings from the line ends (don’t scratch the metal sealing surface).
• Lightly coat the new O-rings with clean PAG A/C oil and install them on the line ends.

Step 8: Install the new compressor

• Position the compressor and start the mounting bolts by hand to avoid cross-threading.
• Use a 12mm socket/14mm socket to snug the bolts evenly.
• Final tighten with a torque wrench: Torque to 25 N·m (18 ft-lbs) (verify if your bolt size differs).

Step 9: Reconnect the A/C lines to the compressor

• Remove the caps/plugs.
• Push the lines straight onto the compressor manifold to avoid pinching the O-rings.
• Install the retaining bolt(s) using a 10mm socket.
• Final tighten with a torque wrench: Torque to 12 N·m (9 ft-lbs) for the line retaining bolt(s) (verify if your fasteners differ).

Step 10: Reconnect the compressor electrical connector

• Reconnect the plug until the lock clicks in place.
• Give it a gentle tug to confirm it’s fully seated.

Step 11: Reinstall the serpentine belt

• Route the belt using your photo (or the under-hood routing diagram).
• Use the serpentine belt tool or 14mm socket to rotate the tensioner and slide the belt onto the compressor pulley.
• Double-check every pulley groove is aligned before starting the engine.

Step 12: Evacuate (vacuum) and recharge the A/C system

• Reconnect the battery negative terminal using a 10mm socket.
• Connect an A/C manifold gauge set (a 2-gauge hose set that connects to high/low service ports).
• Use a vacuum pump to pull vacuum for at least 30–45 minutes to remove air/moisture.
• Close the manifold valves and watch for vacuum hold (leak check) for 10–15 minutes.
• Recharge by weight using a refrigerant scale with the exact amount listed on the under-hood A/C label.

Step 13: Reinstall splash shield and lower the vehicle

• Reinstall the splash shield using the trim clip remover and 10mm socket.
• Lower the vehicle from the jack stands using the floor jack.

---

✅ After Repair

• Start the engine and set HVAC to MAX A/C, recirculation ON, blower high.
• Confirm the compressor engages and the center vent air gets cold after a few minutes.
• Check for leaks at the compressor line connections (oily residue is a common sign).
• If cooling is weak or pressures are abnormal, stop and recheck charge amount and O-ring sealing.

---

💰 DIY vs Shop Cost

Shop Cost: $1,200-$2,200 (parts + labor + recover/recharge)

DIY Cost: $350-$900 (parts only, assuming you already have A/C service equipment)

You Save: $500-$1,500 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2.5-4.5 hours.

---
