🔧 Civic - A/C Compressor Replacement

Replacing the A/C compressor means safely recovering the refrigerant, removing the drive belt and compressor, swapping seals, then vacuuming and recharging the system to spec. This restores proper cooling and prevents leaks or compressor damage.

Difficulty Level: Advanced | Estimated Time: 3-6 hours

Assumption: Your Civic uses R-134a; verify on under-hood label.

---

⚠️ Safety & Precautions

• ⚠️ Refrigerant is pressurized: Do not vent to air; recover with proper equipment.
• ⚠️ Frostbite/eye injury risk: Wear safety glasses and gloves near A/C lines.
• ⚠️ Hot/rotating parts: Work on a cool engine; keep hands clear of the belt path.
• ⚠️ Support safely: Use jack stands; never rely on a floor jack alone.
• 🔋 Battery: Disconnect the negative terminal before unplugging compressor wiring.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 10mm socket
• 12mm socket
• 14mm socket
• 3/8" drive ratchet
• 3/8" drive torque wrench (10–80 Nm range)
• Serpentine belt tool or 14mm box wrench
• Trim clip remover
• Flat-blade screwdriver
• Pick set
• Manifold gauge set for R-134a
• Vacuum pump (A/C) (specialty)
• Refrigerant recovery machine (specialty)
• Refrigerant charging scale (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• A/C compressor - Qty: 1
• A/C O-ring kit (HNBR/green, R-134a compatible) - Qty: 1
• PAG A/C oil (Honda-compatible) - Qty: 1
• R-134a refrigerant - Qty: As specified on under-hood label
• Serpentine drive belt - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Have the refrigerant professionally recovered, or use a refrigerant recovery machine (a machine that safely pulls refrigerant into a storage tank).
• Disconnect the battery using a 10mm socket on the negative terminal and tuck the cable aside.
• Raise the front of the car with a floor jack and support it with jack stands at the pinch welds.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Recover the refrigerant (required)

• Connect the manifold gauge set for R-134a to the high/low service ports.
• Use the refrigerant recovery machine (specialty) to fully recover the refrigerant from the system.
• Never loosen A/C lines until pressures are zero.

Step 2: Remove the lower splash shield

• Use a trim clip remover and flat-blade screwdriver to remove clips/screws from the undertray.
• Set hardware aside in a tray so nothing gets lost.

Step 3: Release and remove the serpentine belt

• Use a serpentine belt tool or 14mm box wrench to rotate the belt tensioner and relieve tension.
• Slip the belt off the A/C compressor pulley first, then remove the belt.
• Take a photo of belt routing first.

Step 4: Unplug the compressor electrical connector

• Locate the compressor connector from underneath.
• Use a flat-blade screwdriver carefully to release the lock tab, then unplug it.

Step 5: Disconnect the A/C lines from the compressor

• Clean the area around the fittings using a clean rag (keeps dirt out of the system).
• Use a 10mm socket to remove the suction/discharge line retaining bolt(s) at the compressor.
• Gently wiggle and pull the lines straight out.
• Immediately cap/cover open lines and ports to keep moisture out.

Step 6: Replace the O-rings (do not reuse old ones)

• Use a pick set to remove the old O-rings from the line ends.
• Install new O-rings from the A/C O-ring kit.
• Lightly coat the new O-rings with clean PAG A/C oil before assembly.
• Only a thin oil film—don’t soak them.

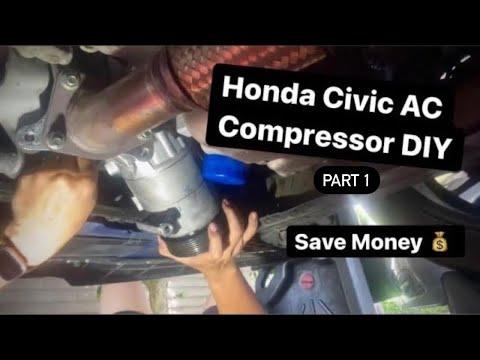

Step 7: Remove the A/C compressor

• Support the compressor with one hand.
• Use a 12mm socket and 3/8" drive ratchet to remove the compressor mounting bolts.
• Lower the compressor out carefully.
• Install the new compressor and start all bolts by hand first.
• Tighten mounting bolts with a torque wrench: Torque to 25 Nm (18 ft-lbs)

Step 8: Reinstall the A/C lines onto the compressor

• Align the lines squarely and push them in evenly (do not force at an angle).
• Install the line retaining bolt(s) using a 10mm socket.
• Tighten with a torque wrench: Torque to 10 Nm (7 ft-lbs)

Step 9: Reconnect compressor electrical connector

• Plug the connector back in until it clicks.

Step 10: Install the serpentine belt

• Route the belt using your photo as reference.
• Use a serpentine belt tool or 14mm box wrench to rotate the tensioner and slip the belt over the last pulley.
• Visually confirm the belt ribs are seated in every pulley groove.

Step 11: Reinstall the lower splash shield

• Reinstall the undertray and clips using a trim clip remover and flat-blade screwdriver.

Step 12: Evacuate (vacuum) and recharge the A/C system

• Reconnect the manifold gauge set for R-134a and connect a vacuum pump (A/C) (specialty).
• Pull vacuum for 30–45 minutes, then close valves and verify it holds vacuum for 10 minutes (basic leak check).
• Recharge by weight using a refrigerant charging scale (specialty): charge exactly the amount listed on the under-hood A/C label.
• Charging by “pressure only” can damage the compressor.

Step 13: Reconnect the battery

• Reconnect the negative terminal using a 10mm socket.

---

✅ After Repair

• Start the engine and set HVAC to MAX A/C and recirculate.
• Confirm the A/C blows cold and the compressor cycles normally (no loud knocking/squealing).
• Check for leaks at the compressor line connections (listen for hiss; look for oily residue).
• Recheck belt alignment with the engine off.
• If cooling is weak or pressures look abnormal, stop and recheck charge amount and O-ring seating.

---

💰 DIY vs Shop Cost

Shop Cost: $900-$1,800 (parts + labor)

DIY Cost: $300-$900 (parts only, assuming you have access to A/C equipment)

You Save: $600-$900 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 3-4 hours.

---
