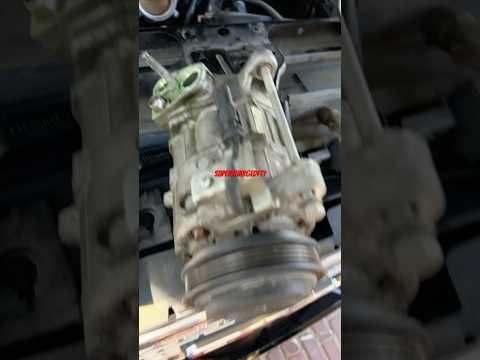

🔧 A/C Compressor - Replacement

Replacing the A/C compressor on your Yukon means safely recovering the refrigerant, removing the drive belt and A/C lines, swapping the compressor, then vacuuming and recharging the system. This is done because a failed compressor can seize, make noise, leak, or contaminate the system with metal debris.

Difficulty Level: Advanced | Estimated Time: 4-7 hours

Assumption: Factory R-134a system with front + rear A/C (common on Denali).

---

⚠️ Safety & Precautions

• ⚠️ Do not vent refrigerant: R-134a must be recovered with approved equipment.
• ⚠️ Wear eye protection: liquid refrigerant can cause frostbite and blindness.
• ⚠️ Keep hands clear of the belt drive: never work near a running engine.
• ⚠️ Disconnect the negative battery cable before unplugging the compressor connector.
• ⚠️ Cleanliness matters: cap/plug A/C lines immediately to prevent moisture entry.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Trim clip removal tool
• Ratchet
• Torque wrench (10-150 ft-lbs range)
• Serpentine belt tool (specialty)
• Socket set: 8mm, 10mm, 13mm, 15mm
• Wrench set: 10mm, 13mm, 15mm
• Torx T15 driver
• Line plug/cap set
• A/C manifold gauge set for R-134a
• Refrigerant recovery machine (specialty)
• Vacuum pump (specialty)
• Refrigerant charging scale (specialty)
• PAG oil injector or measured oil bottle

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• A/C compressor - Qty: 1
• A/C compressor manifold seal O-ring set - Qty: 1
• R-134a refrigerant - Qty: 2-4 cans (or by weight)
• PAG 46 A/C oil - Qty: 1
• Serpentine belt - Qty: 1 (recommended if worn/cracked)
• A/C system flush solvent - Qty: 1 (only if contamination suspected)
• Condenser assembly with desiccant - Qty: 1 (recommended if compressor failed internally)

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Let the engine cool fully; the compressor sits near hot components.
• Use a recovery machine to remove refrigerant from the system before opening any A/C line.
• Disconnect the negative battery cable using a 10mm socket.
• Take photos of routing and connectors first.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Recover the refrigerant

• Connect the A/C manifold gauge set for R-134a to the high and low service ports.
• Use the refrigerant recovery machine (specialty) to fully recover the refrigerant per the machine prompts.
• Confirm both gauges drop to 0 psi before continuing.

Step 2: Disconnect the battery

• Use a 10mm socket to remove the negative battery cable and isolate it so it cannot spring back.

Step 3: Raise and support the front of the SUV

• Lift the front with a floor jack (rated 3-ton minimum) and support with jack stands (rated 3-ton minimum).
• Keep wheel chocks in place.

Step 4: Remove the lower splash shield

• Use an 8mm socket and trim clip removal tool to remove the fasteners and drop the front lower shield for access.

Step 5: Remove the serpentine belt from the A/C compressor

• Use a serpentine belt tool (specialty) with a 15mm drive to rotate the belt tensioner and slip the belt off the compressor pulley.
• Only remove it from the compressor if access is tight.

Step 6: Unplug the compressor electrical connector

• Depress the lock tab and disconnect the compressor connector by hand.
• If needed, gently help the tab with a trim clip removal tool (do not pry hard).

Step 7: Disconnect the A/C lines from the compressor

• Place rags underneath to catch any oil.
• Use a 10mm socket (common) to remove the compressor manifold block bolt(s).
• Carefully pull the manifold off the compressor and immediately install line plug/cap set caps on the open lines.
• Remove and discard the old O-rings from the manifold.
• Torque on install: Torque to 20 Nm (15 ft-lbs)
• New O-rings must be lightly oiled before install.

Step 8: Remove the A/C compressor mounting bolts

• Support the compressor with one hand.
• Use a 13mm socket and ratchet to remove the compressor mounting bolts.
• Lower the compressor out through the bottom.
• Torque on install: Torque to 25 Nm (18 ft-lbs)

Step 9: Measure and set the correct compressor oil amount

• Drain the old compressor oil into a clean measuring cup (rotate the hub by hand as it drains).
• Drain the new compressor into a measuring cup as well (it may be shipped with oil).
• Add PAG 46 A/C oil to the new compressor so the amount in the new compressor matches the amount drained from the old compressor.
• This avoids under/over-oiling (both reduce cooling).

Step 10: Install the new compressor

• Position the compressor and start all mounting bolts by hand.
• Use a 13mm socket to snug them, then use a torque wrench to finish.
• Torque: Torque to 25 Nm (18 ft-lbs)

Step 11: Install new O-rings and reconnect the A/C lines

• Install the new manifold O-rings from the A/C compressor manifold seal O-ring set.
• Lightly coat each O-ring with clean PAG 46 A/C oil using a gloved finger.
• Reinstall the line manifold and bolt(s) using a 10mm socket, then torque.
• Torque: Torque to 20 Nm (15 ft-lbs)

Step 12: Reconnect the compressor electrical connector

• Push the connector on until it clicks and locks.

Step 13: Reinstall the belt

• Route the belt correctly and use the serpentine belt tool (specialty) to rotate the tensioner.
• Slip the belt onto the compressor pulley and visually confirm it’s seated in every pulley groove.

Step 14: Reinstall the splash shield and lower the SUV

• Use an 8mm socket and trim clip removal tool to reinstall the shield fasteners.
• Lower the vehicle from jack stands using the floor jack.

Step 15: Pull vacuum (evacuate) the A/C system

• Reconnect the A/C manifold gauge set for R-134a.
• Connect the center hose to the vacuum pump (specialty).
• Open both manifold valves and run the pump for 30–45 minutes.
• Close both valves, shut off the pump, and watch for vacuum loss for 10–15 minutes.
• If vacuum drops, you likely have a leak.

Step 16: Recharge by weight (most important step)

• Connect refrigerant to the manifold center hose and place the refrigerant source on a refrigerant charging scale (specialty).
• Charge with the engine off at first, through the low side per standard R-134a charging practice.
• Start the engine, set HVAC to MAX A/C, and continue charging until the exact weight is added.
• Refrigerant charge (R-134a):
• Front + rear A/C: 1.05 kg (2.31 lb)
• Front-only A/C: 0.78 kg (1.72 lb)
• Charging by pressure is inaccurate—use weight.

Step 17: Reconnect the battery

• Use a 10mm socket to reinstall the negative battery cable.

---

✅ After Repair

• Start the engine and verify the A/C clutch/compressor engages (you should hear a click and see RPM change slightly).
• Check vent temperature and verify both front and rear A/C cool properly (if equipped).
• Inspect the compressor line connection for oily residue (a common sign of a leak).
• If the old compressor failed loudly or seized: consider replacing the condenser assembly with desiccant and flushing lines to prevent repeat failure.

---

💰 DIY vs Shop Cost

Shop Cost: $1,200-$2,500 (parts + labor)

DIY Cost: $350-$1,200 (parts only)

You Save: $850-$1,300 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 4-7 hours.

---
