🔧 Terrain - A/C Compressor Replacement

Replacing the A/C compressor on your Terrain involves safely recovering the refrigerant, removing the drive belt and compressor, swapping seals, and then pulling a deep vacuum and recharging the system. This job is very doable, but the refrigerant handling and evacuation/recharge steps must be done correctly to avoid damage and leaks.

Difficulty Level: Advanced | Estimated Time: 3-6 hours

Assumption: Factory R-134a system; recharge amount is on under-hood label.

---

⚠️ Safety & Precautions

• ⚠️ Refrigerant can cause frostbite and eye injury—wear gloves and safety glasses.
• ⚠️ Do not vent refrigerant to the air. Have a shop recover the refrigerant first, or use certified recovery equipment.
• ⚠️ Keep hands/tools away from the belt path; the tensioner is spring-loaded.
• ⚠️ Support the vehicle with jack stands on solid, level ground—never rely on a jack alone.
• ⚠️ Disconnect the negative battery cable before unplugging the compressor clutch connector.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Breaker bar 1/2"
• Torque wrench 3/8"
• Torque wrench 1/2"
• Socket set (8mm-18mm)
• Ratchet 3/8"
• Ratchet 1/2"
• Serpentine belt tool 3/8" drive
• Wrench set (10mm-18mm)
• Trim clip remover
• Flathead screwdriver
• Fender cover
• Oil drain pan
• A/C line disconnect tool set (specialty)
• Manifold gauge set for R-134a (specialty)
• Vacuum pump (specialty)
• Refrigerant scale (specialty)
• UV leak light (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• A/C compressor - Qty: 1
• A/C compressor manifold O-ring seal kit - Qty: 1
• Accumulator/drier - Qty: 1
• Orifice tube - Qty: 1
• PAG A/C oil (PAG 46) - Qty: 1
• R-134a refrigerant - Qty: As specified on under-hood label
• Refrigerant dye (R-134a compatible) - Qty: 1 (optional)

---

📋 Before You Begin

• 🧰 Park on level ground, set the parking brake, and chock the rear wheels.
• 🧊 Have the refrigerant professionally recovered before opening any A/C line.
• 🔋 Use a 10mm socket to disconnect the negative battery cable and isolate it.
• 📝 Find the under-hood A/C label and note the exact refrigerant charge amount and oil specification.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Recover the refrigerant

• Have a shop recover the R-134a, or use an R-134a manifold gauge set (specialty) and certified recovery equipment.
• Never loosen A/C fittings under pressure.

Step 2: Disconnect the battery

• Use a 10mm socket to remove the negative battery terminal and tuck it aside.

Step 3: Raise the front-right and remove the splash shield (if equipped)

• Use a floor jack (rated 3-ton minimum) and support with jack stands (rated 3-ton minimum).
• Use a trim clip remover and 8mm socket to remove the right-front lower splash shield fasteners.

Step 4: Remove serpentine belt from the compressor

• Use a serpentine belt tool 3/8" drive to rotate the belt tensioner and slip the belt off the A/C compressor pulley.
• Take a photo of belt routing first.

Step 5: Unplug the compressor electrical connector

• Use a flathead screwdriver (gently) to help release the connector lock if needed, then unplug it.

Step 6: Disconnect the A/C lines from the compressor

• Place an oil drain pan underneath to catch oil.
• Use the correct socket (typically 10mm or 13mm) to remove the compressor manifold/block retaining bolt.
• Carefully pull the manifold/block straight out; cap the lines to keep moisture out.
• Remove and discard the old O-rings; you will install new O-rings later.

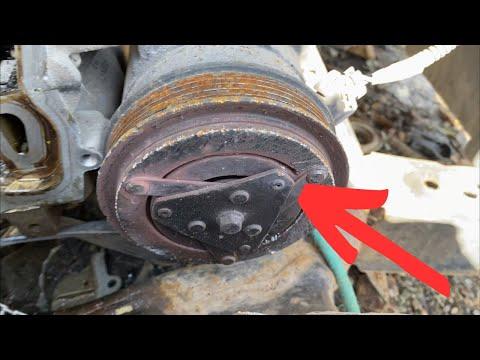

Step 7: Remove the A/C compressor

• Support the compressor with one hand.
• Use the appropriate socket (typically 13mm or 15mm) and ratchet 3/8" to remove the compressor mounting bolts.
• Lower and remove the compressor from the vehicle.
• Torque (reinstall): Compressor mounting bolts: 25 Nm (18 ft-lbs)

Step 8: Drain and measure compressor oil (important)

• Pour oil from the old compressor into a measuring container over the oil drain pan.
• Drain the new compressor the same way (some ship prefilled), then refill the new compressor with the amount you measured (unless your new compressor instructions specify a different method).
• Use PAG A/C oil (PAG 46) and rotate the compressor hub by hand a few turns to distribute oil.
• Too much oil reduces cooling.

Step 9: Replace the accumulator/drier and metering device

• The accumulator/drier removes moisture; replacing it helps prevent repeat failure.
• Accumulator/drier (common on this platform): Use the appropriate wrench set (10mm-18mm) or A/C line disconnect tool set (specialty) to disconnect lines, swap the accumulator, and install new O-rings lubricated with PAG A/C oil (PAG 46).
• Metering device: Replace the orifice tube if equipped (often in a line fitting). Use the A/C line disconnect tool set (specialty) to open the joint, remove the old orifice tube, and install the new one.
• If you find metal debris, the system needs flushing.

Step 10: Install the new compressor

• Position the new compressor and start all mounting bolts by hand.
• Use a torque wrench 3/8" to tighten: Torque to 25 Nm (18 ft-lbs)

Step 11: Reconnect A/C lines with new O-rings

• Install new O-rings from the A/C compressor manifold O-ring seal kit.
• Lightly coat O-rings with PAG A/C oil (PAG 46) so they don’t tear.
• Push the manifold/block in squarely, then install the retaining bolt using the correct socket (typically 10mm or 13mm).
• Torque (typical): Compressor manifold bolt: 10 Nm (89 in-lbs)

Step 12: Reinstall belt and shields

• Use the serpentine belt tool 3/8" drive to rotate the tensioner and reinstall the belt.
• Reinstall the splash shield using the 8mm socket and trim clip remover.

Step 13: Evacuate (vacuum) the A/C system

• A vacuum removes air and moisture; moisture can form acids and destroy the new compressor.
• Connect the manifold gauge set for R-134a (specialty) and vacuum pump (specialty).
• Pull vacuum for at least 30–45 minutes, then close valves and verify it holds vacuum for 10–15 minutes (no major leaks).

Step 14: Recharge with the exact specified amount

• Use a refrigerant scale (specialty) to charge by weight (most accurate).
• Add exactly the amount listed on the under-hood A/C label.
• Start the engine, set A/C to MAX, blower HIGH, and continue charging as needed per your gauge set procedure.

Step 15: Check for leaks and performance

• Use a UV leak light (specialty) if dye was added, and inspect compressor/manifold connections.
• Verify center vent temperature drops and the compressor cycles normally.

---

✅ After Repair

• 🧪 With A/C running, verify no oily residue or hissing at any A/C connection.
• 🧭 Watch the belt for proper tracking; correct immediately if it walks.
• 🧰 If cooling is weak or pressures are abnormal, do not keep running it—incorrect charge can damage the new compressor.
• 🔍 Recheck for leaks after 1–2 days of driving.

---

💰 DIY vs Shop Cost

Shop Cost: $900-$1,800 (parts + labor + evac/recharge)

DIY Cost: $350-$900 (parts only, assuming you already have specialty A/C equipment)

You Save: $550-$900 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 3-5 hours.

---
