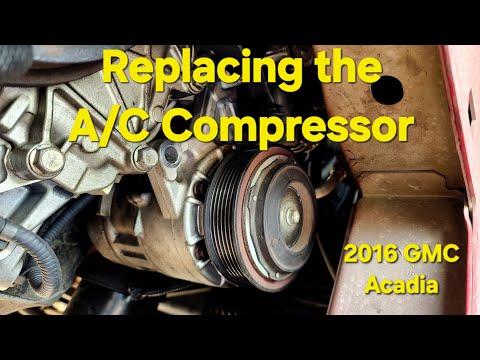

🔧 Acadia - A/C Compressor Replacement

Replacing the A/C compressor on your Acadia means safely removing refrigerant, swapping the compressor, and then vacuuming/charging the system so it cools correctly. This job is very doable for a careful DIYer, but the refrigerant handling and final recharge steps are the “make-or-break” part.

Difficulty Level: Advanced | Estimated Time: 3-6 hours

Assumption: R-134a system; common Acadia layout. Torque specs listed are best-effort—verify with factory data if available.

---

⚠️ Safety & Precautions

• ⚠️ Do not vent refrigerant to the air—have the refrigerant professionally recovered first.
• ⚠️ Wear eye protection and gloves—liquid refrigerant can cause severe frostbite.
• ⚠️ Disconnect the negative battery cable before unplugging the compressor/clutch wiring.
• ⚠️ Keep the A/C lines capped/plugged once opened to prevent moisture contamination.
• ⚠️ Never run the compressor with low/no refrigerant—lubrication can be lost quickly.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Metric socket set (8mm-18mm)
• 3/8" drive ratchet
• 1/2" drive breaker bar
• Torque wrench (10-150 ft-lbs)
• Serpentine belt tool (specialty)
• Trim clip remover
• Flathead screwdriver
• Pliers
• Pick set
• Line caps/plugs kit (A/C)
• Manifold gauge set for R-134a (specialty)
• Vacuum pump (specialty)
• Refrigerant recovery machine (specialty)
• Refrigerant scale (specialty)
• UV leak detection light (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• A/C compressor - Qty: 1
• A/C compressor manifold O-ring kit - Qty: 1
• A/C accumulator/receiver drier - Qty: 1
• A/C orifice tube - Qty: 1
• PAG A/C oil (PAG 46 typical) - Qty: 1 bottle
• R-134a refrigerant - Qty: as needed to match under-hood label
• Serpentine belt - Qty: 1 (recommended if worn/cracked)

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Have a shop recover the refrigerant first (or use a recovery machine). Do not start disassembly until system pressure is at zero.
• Disconnect the negative battery cable using a 10mm socket.
• Let the engine cool fully; you’ll work near the radiator and belt drive.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Recover the refrigerant (required)

• Connect a refrigerant recovery machine (specialty) and follow the machine prompts to fully recover the R-134a.
• Verify the system holds at 0 psi using a manifold gauge set for R-134a (specialty).
• Recovery is mandatory before any line is opened.

Step 2: Raise and support the front of the Acadia

• Place wheel chocks behind the rear wheels.
• Lift the front with a floor jack (rated 3-ton minimum) and support with jack stands (rated 3-ton minimum).

Step 3: Remove the lower splash shield (if equipped)

• Remove fasteners using a trim clip remover and metric socket set (8mm-10mm).
• Set the panel and clips aside.

Step 4: Remove the serpentine belt

• Use a serpentine belt tool (specialty) (or 1/2" drive breaker bar if it fits) to rotate the belt tensioner and slip the belt off the A/C compressor pulley.
• Remove the belt from the front drive if you need extra room.
• Take a photo of belt routing first.

Step 5: Unplug the compressor electrical connector

• Disconnect the negative battery cable (if not already) using a 10mm socket.
• Release the connector lock using a flathead screwdriver and unplug it by hand.

Step 6: Disconnect the A/C lines at the compressor

• Locate the compressor rear manifold (the block where the lines bolt on).
• Remove the manifold retaining bolt using a metric socket set (commonly 10mm or 13mm depending on manifold).
• Gently wiggle the manifold free; do not pry hard on aluminum lines.
• Immediately cap the open lines and compressor ports using a line caps/plugs kit (A/C).
• Remove old O-rings using a pick set (do not scratch sealing surfaces).

Step 7: Remove the A/C compressor

• Support the compressor with one hand.
• Remove mounting bolts using a metric socket set and 3/8" drive ratchet.
• Lower the compressor out carefully.
• Torque to 25-30 Nm (18-22 ft-lbs) for compressor mounting bolts during install (verify if possible).

Step 8: Replace the accumulator/receiver drier

• The accumulator is typically mounted near the firewall on the low-pressure side.
• Remove fasteners with a metric socket set and disconnect lines carefully.
• Install the new accumulator with new O-rings from the A/C compressor manifold O-ring kit, lightly lubricated with PAG A/C oil (PAG 46 typical).
• Torque to 18-25 Nm (13-18 ft-lbs) for line/manifold bolts (verify if possible).
• Accumulator replacement helps prevent repeat failure.

Step 9: Replace the orifice tube

• Find the orifice tube location (usually in the liquid line fitting).
• Open the fitting using pliers and/or the appropriate metric socket set fasteners (varies by connection style).
• Extract the old orifice tube with a pick set.
• Install the new orifice tube in the same orientation.
• If the old tube is full of metal, flushing is needed.

Step 10: Prep the new compressor (oil balancing)

• Drain the shipping oil from the new compressor into a clean container (rotate the hub by hand while draining).
• Measure what came out, then add the correct amount of fresh PAG A/C oil (PAG 46 typical) to match system needs.
• PAG oil is the lubricant carried by refrigerant.

Step 11: Install the new compressor

• Position the compressor and hand-start all mounting bolts.
• Tighten using a torque wrench (10-150 ft-lbs): Torque to 25-30 Nm (18-22 ft-lbs) (verify if possible).
• Reconnect the electrical connector by hand until it clicks.

Step 12: Reconnect A/C lines with new O-rings

• Install new O-rings (from the O-ring kit) on the line manifold, using a pick set carefully.
• Lightly coat O-rings with PAG A/C oil (PAG 46 typical) so they don’t tear during assembly.
• Install the manifold and tighten the retaining bolt using a metric socket set and torque wrench: Torque to 18-25 Nm (13-18 ft-lbs) (verify if possible).

Step 13: Reinstall the serpentine belt

• Route the belt correctly, then rotate the tensioner using a serpentine belt tool (specialty).
• Slip the belt onto the last pulley and slowly release the tensioner.

Step 14: Reinstall splash shield and lower the Acadia

• Reinstall the lower shield using a trim clip remover and metric socket set (8mm-10mm).
• Lower the vehicle using the floor jack (rated 3-ton minimum).

Step 15: Vacuum test and recharge

• Connect a manifold gauge set for R-134a (specialty) and pull vacuum using a vacuum pump (specialty) for 30-45 minutes.
• Close valves and confirm it holds vacuum for 10-15 minutes (leak check).
• Recharge by weight using a refrigerant scale (specialty) to the exact amount listed on the under-hood A/C label.
• Charging “by pressure” is inaccurate—use weight.

---

✅ After Repair

• Reconnect the negative battery cable using a 10mm socket.
• Start the engine and turn A/C to MAX; confirm the compressor engages and both lines at the compressor change temperature (one cool/sweating, one warm).
• Check vent temperature after a few minutes; cooling should steadily improve.
• Inspect all fittings for oil residue and use a UV leak detection light (specialty) if dye is present.
• Listen for belt squeal or knocking; re-check belt routing if anything sounds wrong.

---

💰 DIY vs Shop Cost

Shop Cost: $1,200-$2,200 (parts + labor)

DIY Cost: $350-$900 (parts only, assuming you already have refrigerant equipment)

You Save: $600-$1,500 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 3-5 hours.

---
