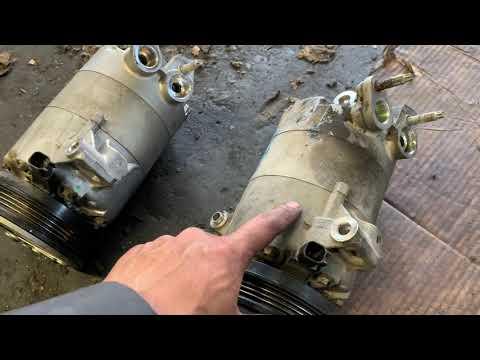

🔧 Transit Connect - A/C Compressor Replacement

Replacing the A/C compressor restores cooling when the compressor is seized, noisy, leaking, or not building pressure. This job also requires opening the refrigerant system, so the refrigerant must be properly recovered, then the system must be vacuum-evacuated and recharged by exact weight.

Difficulty Level: Advanced | Estimated Time: 3-6 hours

---

⚠️ Safety & Precautions

• ⚠️ Refrigerant is hazardous: Do not vent R-134a to the air; have the system professionally recovered if you don’t have recovery equipment.
• ⚠️ High pressure risk: Never open A/C lines until the system is fully recovered (pressure at 0 psi).
• ⚠️ Hot/rotating parts: Work on a cool engine and keep hands clear of the belt path.
• ⚠️ Support the vehicle safely: Use jack stands on solid, level ground.
• ⚠️ Battery: Disconnect the negative cable before unplugging the compressor or working near the belt.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 1/4" drive ratchet
• 3/8" drive ratchet
• Socket set (8mm, 10mm, 13mm, 15mm)
• Torx bit set (T25, T30)
• Extensions set (3", 6")
• Serpentine belt tool (specialty)
• Trim clip removal tool
• Flat-blade screwdriver
• Pick set
• Line plug/cap kit
• Torque wrench (10–80 ft-lbs)
• A/C manifold gauge set (specialty)
• Vacuum pump (specialty)
• Refrigerant recovery machine (specialty)
• Refrigerant scale (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• A/C compressor - Qty: 1
• A/C compressor clutch/pulley (if serviced separately, if applicable) - Qty: 1
• A/C manifold line O-ring set - Qty: 1
• PAG A/C compressor oil (Ford-spec) - Qty: 1
• R-134a refrigerant - Qty: As required by under-hood label
• Serpentine belt (recommended if cracked/glazed) - Qty: 1
• A/C receiver/drier or accumulator (recommended when compressor fails) - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear wheels.
• Have the A/C refrigerant professionally recovered, or recover it with a refrigerant recovery machine (a machine that removes and stores refrigerant safely).
• Read the under-hood A/C label and note the exact R-134a charge weight and the specified PAG oil type/amount.
• Disconnect the negative battery cable using a 10mm socket.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Confirm the system is empty (recovered)

• Connect the A/C manifold gauge set (specialty) (gauges that read A/C pressure on high/low sides) to the low and high service ports.
• Verify both gauges read 0 psi before opening any A/C line.

Step 2: Raise and support the front of the vehicle

• Use a floor jack (rated 3-ton minimum) at the proper front jacking point.
• Set the vehicle on jack stands (rated 3-ton minimum) and keep the wheel chocks in place.

Step 3: Remove the lower splash shield (if equipped)

• Remove fasteners using a Torx T25 bit and 8mm socket as needed.
• Pop any plastic clips with a trim clip removal tool.

Step 4: Remove the serpentine belt from the A/C compressor

• Use the serpentine belt tool (specialty) (a long handle tool that releases belt tension) to rotate the belt tensioner and relieve tension.
• Slip the belt off the compressor pulley first, then slowly release the tensioner.
• Tip: Take a belt-routing photo first.

Step 5: Unplug the compressor electrical connector

• Release the lock tab using a pick set or flat-blade screwdriver.
• Pull the connector straight off (don’t yank the wires).

Step 6: Disconnect the A/C lines from the compressor

• Place rags under the compressor area.
• Remove the refrigerant line retaining bolt(s) using a 10mm socket.
• Carefully wiggle the lines free; immediately cap the open lines using a line plug/cap kit to keep moisture out.
• Remove old O-rings with a pick set (do not scratch the aluminum sealing surfaces).

Step 7: Remove the compressor mounting bolts

• Support the compressor with one hand.
• Remove the compressor bolts using a 13mm socket and extensions set (3", 6").
• Lower the compressor out carefully.
• Torque on install: Torque to 25 Nm (18 ft-lbs) (common Ford M8 mounting spec). Assumption: typical compressor mount torque.

Step 8: Prepare the new compressor (oil and O-rings)

• Install new line O-rings from the A/C manifold line O-ring set.
• Lightly lubricate O-rings using PAG A/C compressor oil (Ford-spec) (this prevents tearing during assembly).
• If the new compressor is not pre-filled correctly, adjust oil to the amount specified on your A/C under-hood label using PAG A/C compressor oil (Ford-spec).
• Rotate the compressor hub by hand a few turns to distribute oil.

Step 9: Install the new compressor

• Position the compressor and start mounting bolts by hand to avoid cross-threading.
• Tighten bolts with a 13mm socket, then finish with a torque wrench (10–80 ft-lbs).
• Torque to 25 Nm (18 ft-lbs).

Step 10: Reconnect the A/C lines

• Remove the caps/plugs and carefully seat the lines squarely into the compressor.
• Install the retaining bolt(s) using a 10mm socket.
• Torque to 10 Nm (89 in-lbs) (typical line clamp bolt spec). Assumption: typical Ford A/C line clamp torque.

Step 11: Reconnect the electrical connector

• Push the connector on until it clicks and the lock tab is fully seated.

Step 12: Reinstall the serpentine belt

• Route the belt per your photo.
• Use the serpentine belt tool (specialty) to move the tensioner and slip the belt onto the last pulley.
• Visually confirm the belt ribs are seated in every pulley groove.

Step 13: Reinstall the splash shield and lower the vehicle

• Reinstall fasteners using a Torx T25 bit and 8mm socket.
• Lower the vehicle using a floor jack (rated 3-ton minimum).

Step 14: Evacuate the A/C system (vacuum)

• Connect the A/C manifold gauge set (specialty) and connect the center hose to the vacuum pump (specialty) (a pump that removes air/moisture from the system).
• Pull vacuum for at least 30–45 minutes, then close valves and verify it holds vacuum for 10–15 minutes (leak check).

Step 15: Recharge with R-134a by weight

• Place the refrigerant source on a refrigerant scale (specialty) (a scale that measures exact charge weight).
• Charge the system with the exact amount listed on the under-hood label.
• Start the engine, set A/C to MAX, and finish charging as needed while monitoring pressures with the A/C manifold gauge set (specialty).
• Tip: Charging by weight prevents compressor damage.

---

✅ After Repair

• Reconnect the battery negative cable using a 10mm socket.
• With A/C running, confirm cold vent temps and that the compressor is quiet and smooth.
• Check for leaks at the compressor line connections (oil residue usually means a leak).
• Recheck belt tracking with the engine idling (belt should run centered on pulleys).
• If cooling is weak or pressures look abnormal, stop and re-check for leaks or incorrect charge weight.

---
