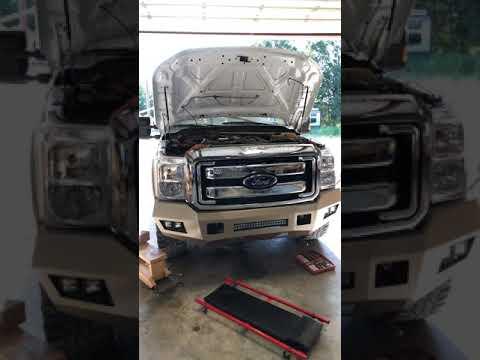

🔧 F-250 Super Duty - A/C Compressor Replacement

Replacing the A/C compressor fixes issues like no cold air, loud grinding/squealing from the compressor, or a seized pulley that can shred the belt. This job also requires evacuating and recharging the A/C system by weight, which is critical for performance and to prevent compressor damage.

Difficulty Level: Advanced | Estimated Time: 3-6 hours

Assumption: Your A/C uses R-134a (typical for this model); always follow the underhood refrigerant label for the exact charge amount.

---

⚠️ Safety & Precautions

• ⚠️ Do not vent refrigerant to the air—recover it with proper equipment.
• ⚠️ Wear eye protection and gloves—liquid refrigerant can cause severe frostbite.
• ⚠️ Keep hands/tools clear of the belt drive; the fan/belt area can injure you.
• ⚠️ Disconnect the negative battery cable before unplugging compressor wiring.
• ⚠️ If the old compressor failed internally, metal debris may be in the system and can destroy the new compressor without proper flushing/part replacement.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 8mm socket
• 10mm socket
• 13mm socket
• Ratchet
• Socket extension set
• Torque wrench (10–100 ft-lbs range)
• Serpentine belt tool (1/2" drive) (specialty)
• A/C manifold gauge set for R-134a (specialty)
• Vacuum pump (specialty)
• Refrigerant recovery machine (specialty)
• Refrigerant scale (specialty)
• Trim clip remover
• Pick tool
• Shop rags

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• A/C compressor - Qty: 1
• A/C compressor manifold O-ring set - Qty: 1
• PAG A/C compressor oil (Ford-spec equivalent) - Qty: 1
• R-134a refrigerant - Qty: As specified on underhood label
• Serpentine belt - Qty: 1 (recommended if belt shows cracks/glazing)
• A/C receiver/drier or accumulator - Qty: 1 (recommended if compressor failed internally)
• A/C orifice tube - Qty: 1 (recommended if compressor failed internally)

---

📋 Before You Begin

• Park on level ground, set the parking brake, and install wheel chocks.
• Recover the refrigerant using a refrigerant recovery machine. This pulls refrigerant out into a storage tank.
• Disconnect the negative battery cable using a 10mm socket.
• Raise the front safely with a floor jack and support with jack stands if you need better access from below.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Recover the refrigerant

• Connect the A/C manifold gauge set for R-134a (specialty) to the high and low service ports.
• Use the refrigerant recovery machine (specialty) to fully recover the system.
• Confirm both gauges show no pressure before opening any A/C lines.

Step 2: Remove lower shields (if equipped)

• Use a trim clip remover and 8mm socket to remove any lower splash shields for access.
• Set clips/bolts aside in a tray so nothing gets lost.

Step 3: Remove the serpentine belt from the A/C compressor

• Use a serpentine belt tool (1/2" drive) (specialty) to rotate the belt tensioner and relieve tension.
• Slip the belt off the A/C compressor pulley first, then release the tensioner slowly.
• Tip: Take a quick photo of belt routing.

Step 4: Unplug the compressor electrical connector

• Locate the compressor connector and release the lock tab using a pick tool (gently).
• Disconnect the connector and move the harness aside.

Step 5: Remove the A/C refrigerant line manifold from the compressor

• Place shop rags under the connection to catch any oil drips.
• Use a 10mm socket to remove the line manifold retaining bolt(s).
• Carefully pull the manifold straight away from the compressor (do not pry hard).
• Remove the old O-rings using a pick tool.
• Torque to 10 Nm (89 in-lbs) for the line/manifold bolt(s) during reassembly.

Step 6: Remove the A/C compressor

• Support the compressor with one hand while removing bolts.
• Use a 13mm socket with a ratchet and socket extension set to remove the compressor mounting bolts.
• Remove the compressor from its bracket and lower it out carefully.
• Torque to 25 Nm (18 ft-lbs) for the compressor mounting bolts during reassembly.

Step 7: Set oil amount in the new compressor

• Drain oil from the old compressor into a measuring container (tilt and rotate the hub by hand).
• Add the same amount of new PAG A/C compressor oil (Ford-spec equivalent) into the new compressor.
• Rotate the compressor hub by hand several turns to distribute oil evenly.
• Tip: Too much oil can reduce cooling.

Step 8: Install the new compressor

• Position the compressor and start all mounting bolts by hand to avoid cross-threading.
• Use a 13mm socket to snug bolts, then use a torque wrench.
• Torque to 25 Nm (18 ft-lbs).

Step 9: Reinstall the A/C line manifold with new O-rings

• Install new A/C compressor manifold O-ring set onto the manifold.
• Lightly coat O-rings with clean PAG A/C compressor oil (Ford-spec equivalent) so they don’t tear.
• Push the manifold straight into the compressor until fully seated.
• Use a 10mm socket to install retaining bolt(s), then use a torque wrench.
• Torque to 10 Nm (89 in-lbs).

Step 10: Reconnect electrical connector and reinstall belt

• Reconnect the compressor electrical connector until it clicks.
• Route the belt correctly, then use the serpentine belt tool (1/2" drive) (specialty) to move the tensioner.
• Slip the belt fully onto the pulleys and slowly release the tensioner.
• Visually confirm the belt is centered on every pulley groove.

Step 11: Reinstall shields and reconnect battery

• Reinstall splash shields using a trim clip remover and 8mm socket.
• Reconnect the negative battery cable using a 10mm socket.

Step 12: Evacuate (vacuum) and recharge the A/C system by weight

• Connect the A/C manifold gauge set for R-134a (specialty).
• Use the vacuum pump (specialty) to pull vacuum for at least 30–45 minutes.
• Close the valves and verify it holds vacuum (no rise) for 10–15 minutes.
• Recharge using a refrigerant scale (specialty) with R-134a refrigerant to the exact amount on the underhood label.
• Tip: Charging “by can pressure” is inaccurate.

---

✅ After Repair

• Start the engine and turn A/C to MAX with blower on high.
• Verify the compressor clutch engages and cycles normally (no loud squeal or grinding).
• Check vent temperature and confirm steady cold air at idle.
• Inspect the compressor manifold area for oily residue (a common sign of a leak).
• If the old compressor failed internally, monitor cooling closely—debris can plug the orifice tube and reduce cooling.

---

💰 DIY vs Shop Cost

Shop Cost: $900-$2,000 (parts + labor)

DIY Cost: $250-$900 (parts only)

You Save: $650-$1,100 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 3-5 hours.

---
