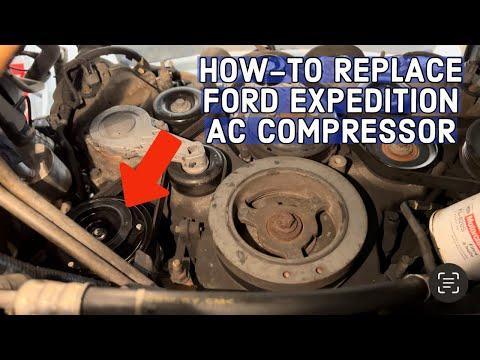

🔧 Expedition - A/C Compressor Replacement

Replacing the A/C compressor on your Expedition is a mix of mechanical work (remove/install the compressor and belt) and A/C system service (recovering refrigerant, replacing seals, vacuuming, and recharging). The compressor can’t be safely removed until the refrigerant is properly recovered, because venting refrigerant is dangerous and illegal.

Difficulty Level: Advanced | Estimated Time: 3-6 hours

---

⚠️ Safety & Precautions

• ⚠️ Do NOT vent refrigerant to the air; have refrigerant recovered with proper equipment.
• ⚠️ Wear eye protection and gloves; liquid refrigerant can cause frostbite and blindness.
• ⚠️ Keep hands/tools clear of the belt drive; do not work near moving pulleys.
• ⚠️ Work on a cool engine; turbo/engine bay parts can burn you.
• ⚠️ Battery disconnect is recommended before unplugging the compressor clutch connector.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Wheel chocks
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• 8mm socket
• 10mm socket
• 13mm socket
• 15mm socket
• 1/4" drive ratchet
• 3/8" drive ratchet
• 3/8" drive torque wrench (10–80 Nm range)
• Serpentine belt tool (specialty)
• Trim clip removal tool
• Flathead screwdriver
• Line/flare-nut wrench set (specialty)
• A/C manifold gauge set for R-134a (specialty)
• A/C vacuum pump (specialty)
• Refrigerant recovery machine (specialty)
• Refrigerant scale (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• A/C compressor (correct for your Expedition) - Qty: 1
• A/C compressor manifold O-ring set - Qty: 1
• A/C accumulator/drier - Qty: 1
• A/C orifice tube - Qty: 1
• PAG A/C oil (vehicle-spec) - Qty: 1
• R-134a refrigerant (vehicle-spec charge amount) - Qty: 1
• Serpentine belt - Qty: 1 (recommended if worn/cracked)

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Recover the A/C refrigerant using proper recovery equipment before opening any A/C lines.
• Disconnect the negative battery cable using a 10mm socket.
• “Orifice tube” is a small metering filter in the A/C line.
• “Accumulator/drier” removes moisture from refrigerant.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Recover the refrigerant

• Connect the A/C manifold gauge set for R-134a (specialty) to the high and low service ports.
• Use a refrigerant recovery machine (specialty) to fully recover the refrigerant from the system.
• Verify both gauges read zero pressure before disconnecting anything.

Step 2: Raise and support the front of the vehicle

• Lift the front using a floor jack (rated 3-ton minimum) at the proper front jacking point.
• Set the truck down on jack stands (rated 3-ton minimum).
• Keep wheel chocks in place.

Step 3: Remove the lower splash shield (as needed for access)

• Remove fasteners using an 8mm socket and trim clip removal tool.
• Use a flathead screwdriver only if a clip is stuck.

Step 4: Remove the serpentine belt from the A/C compressor

• Rotate the belt tensioner using a serpentine belt tool (specialty) or 15mm socket (depending on access).
• Slip the belt off the A/C compressor pulley, then slowly release the tensioner.
• Take a quick photo of belt routing.

Step 5: Disconnect the compressor electrical connector

• Unplug the compressor clutch/control connector by hand; use a flathead screwdriver gently on the lock tab if needed.
• Do not pull on the wires.

Step 6: Remove the A/C line manifold from the compressor

• Place a drain pan under the compressor area.
• Remove the manifold retaining bolt using a 10mm socket.
• Carefully wiggle and pull the manifold straight out.
• Remove and discard the old O-rings.
• Cap/cover open lines to keep moisture out.

Step 7: Unbolt and remove the A/C compressor

• Support the compressor with one hand.
• Remove the compressor mounting bolts using a 13mm socket and 3/8" drive ratchet.
• Lower the compressor out carefully without bending nearby lines.

Step 8: Drain/measure oil and set compressor oil correctly

• Drain the old compressor oil into a measuring container (note the amount and condition).
• Drain the shipping oil from the new compressor (many arrive pre-oiled).
• Add the correct amount/type of PAG A/C oil (vehicle-spec) to the new compressor to match system requirements.
• If oil amount is unknown, use the underhood label/service info.

Step 9: Replace the accumulator/drier and orifice tube (strongly recommended)

• Remove the accumulator/drier fasteners using a 10mm socket and/or 13mm socket (mounting varies by location).
• Disconnect A/C line fittings using a line/flare-nut wrench set (specialty) to avoid rounding fittings.
• Install the new accumulator/drier with new O-rings lightly coated in clean PAG A/C oil (vehicle-spec).
• Remove and replace the orifice tube in its line location using a flathead screwdriver carefully (or an appropriate pull tool if equipped).
• If the old orifice tube is full of metal debris, the system may need flushing and possibly more parts (condenser replacement is common when debris is present).

Step 10: Install the new compressor

• Position the new compressor and start all mounting bolts by hand.
• Tighten mounting bolts using a 3/8" drive torque wrench (10–80 Nm range): Torque to 25 Nm (18 ft-lbs).

Step 11: Reinstall the A/C line manifold with new O-rings

• Install new O-rings and lightly coat them with PAG A/C oil (vehicle-spec).
• Push the manifold in straight to avoid pinching O-rings.
• Install the manifold bolt using a 10mm socket and torque: Torque to 10 Nm (89 in-lbs).

Step 12: Reconnect electrical and reinstall the belt

• Reconnect the compressor electrical connector until it clicks.
• Route the belt correctly and rotate the tensioner using the serpentine belt tool (specialty) or 15mm socket.
• Slip the belt fully onto the pulleys and slowly release the tensioner.
• Visually confirm the belt is seated in every pulley groove.

Step 13: Reinstall splash shield and lower the vehicle

• Reinstall the splash shield using an 8mm socket and any clips with a trim clip removal tool.
• Lower the truck safely off the jack stands (rated 3-ton minimum).

Step 14: Vacuum and recharge the A/C system

• Reconnect the A/C manifold gauge set for R-134a (specialty).
• Pull vacuum with an A/C vacuum pump (specialty) for at least 30–45 minutes.
• Verify it holds vacuum (no leak) before charging.
• Recharge by weight using a refrigerant scale (specialty) with the exact underhood label specification.

Step 15: Reconnect the battery

• Reconnect the negative battery cable using a 10mm socket.

---

✅ After Repair

• Start the engine and set A/C to MAX; confirm the compressor engages and air gets cold.
• Check for leaks at the compressor manifold and any lines you opened (listen/inspect, and use dye if available).
• Verify both front and rear A/C cool properly (your Expedition uses a front/rear A/C system).
• If cooling is weak, pressures are abnormal, or the compressor is noisy, stop and recheck oil amount, charge weight, and leaks.

---

💰 DIY vs Shop Cost

Shop Cost: $1,200-$2,200 (parts + labor + evac/recharge)

DIY Cost: $350-$900 (parts only, assuming you already have A/C service equipment)

You Save: $600-$1,500 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 3-5 hours.

---

🎯 Ready to get started?

HowToo makes it easy: same-day/2-day shipping on every part, plus all the tools and specialty tools you need! Check out the parts and tools sections below to add everything to your cart.

Assumption: R-134a system; use the underhood label for exact charge/oil specs.
