🔧 Escape - A/C Compressor Replacement

Replacing the A/C compressor fixes issues like no cold air, compressor noise, or a seized pulley. This job also requires properly recovering and recharging the refrigerant, so the “repair” is part mechanical work and part A/C service work.

Difficulty Level: Advanced | Estimated Time: 3-6 hours

Assumptions: U.S.-spec R-134a system; torque/charge specs should be verified on the under-hood A/C label or service info.

---

⚠️ Safety & Precautions

• ⚠️ Refrigerant can cause frostbite and eye injury—wear gloves and safety glasses.
• ⚠️ Do not vent refrigerant to the air. Have the system recovered with an A/C recovery machine.
• ⚠️ Keep hands/tools away from the serpentine belt path—pinch hazard.
• ⚠️ Work on a cool engine; exhaust and radiator parts can burn you.
• ⚠️ Battery disconnect is recommended before unplugging the compressor clutch connector.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 10mm socket
• 13mm socket
• 15mm socket
• 3/8" drive ratchet
• 3/8" drive torque wrench (10–100 Nm range)
• Serpentine belt tool (specialty)
• Flat trim tool
• Pick tool
• A/C line disconnect tool set (specialty)
• Manifold gauge set for R-134a (specialty)
• Vacuum pump (specialty)
• Refrigerant scale (specialty)
• R-134a recovery machine (specialty)
• UV dye leak light (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• A/C compressor - Qty: 1
• A/C compressor O-ring set - Qty: 1
• Orifice tube - Qty: 1
• Receiver/drier or accumulator (as equipped) - Qty: 1
• PAG A/C oil (typically PAG 46) - Qty: 1 bottle
• R-134a refrigerant - Qty: 2-3 cans (charge by weight)
• Serpentine belt (optional if worn/cracked) - Qty: 1

---

📋 Before You Begin

• Park the Escape on level ground, set the parking brake, and chock the rear wheels.
• Have the A/C refrigerant professionally recovered first, or use an R-134a recovery machine (a machine that safely removes refrigerant into a tank).
• Disconnect the negative battery cable using a 10mm socket.
• Raise the front of the Escape with a floor jack and support it on jack stands.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Recover the refrigerant (A/C service step)

• Connect the manifold gauge set for R-134a (specialty) to the high/low service ports.
• Recover the refrigerant using an R-134a recovery machine (specialty) until the system is fully empty.
• Skipping recovery is dangerous and illegal.

Step 2: Remove access panels/splash shield

• Remove the lower splash shield/undertray fasteners using a 10mm socket and a flat trim tool.
• Set all clips/screws aside in a small container so they don’t get lost.

Step 3: Release the serpentine belt from the A/C compressor

• Use a serpentine belt tool (specialty) on the belt tensioner and rotate it to relieve tension.
• Slip the belt off the A/C compressor pulley only (no need to fully remove the belt if you can move it aside safely).
• Take a quick photo of belt routing.

Step 4: Unplug the compressor connector

• Press the lock tab and unplug the compressor electrical connector by hand.
• If it’s stuck, use a pick tool gently on the lock tab (don’t break it).

Step 5: Disconnect the A/C lines from the compressor

• Place a drain pan under the compressor (a small amount of oil may drip).
• Remove the suction/discharge line retaining bolt(s) using a 10mm socket (some setups may use 13mm socket).
• If your Escape uses spring-lock style connections, use an A/C line disconnect tool set (specialty) (a plastic ring tool that releases the internal spring).
• Cap or cover the open lines right away to keep moisture out.

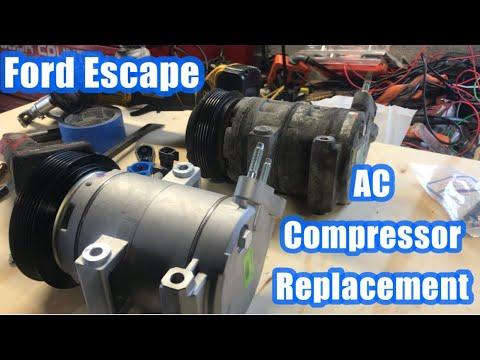

Step 6: Remove the A/C compressor

• Support the compressor with one hand.
• Remove the compressor mounting bolts using a 13mm socket and 3/8" drive ratchet.
• Lower and remove the compressor from underneath.
• Torque spec (typical): Torque to 25 Nm (18 ft-lbs) when reinstalling.

Step 7: Replace the receiver/drier/accumulator and orifice tube (recommended)

• Replace the receiver/drier or accumulator as equipped (this part absorbs moisture; once opened, it can saturate quickly).
• Replace the orifice tube using a pick tool to remove it (the orifice tube is a small metering filter in the A/C line).
• If the old orifice tube is packed with metal debris, the system likely needs a full flush and possibly more component replacement.

Step 8: Prep the new compressor (oil balancing)

• Drain and measure oil from the old compressor into a clean measuring cup (if possible).
• Add the same amount of fresh PAG A/C oil (typically PAG 46) to the new compressor (unless the new compressor comes pre-filled with a specified amount).
• Rotate the compressor hub by hand a few turns to distribute oil evenly.
• Too much oil reduces cooling performance.

Step 9: Install the new compressor

• Position the compressor and start all mounting bolts by hand.
• Tighten using a 13mm socket, then final-tighten with a 3/8" drive torque wrench.
• Torque spec (typical): Torque to 25 Nm (18 ft-lbs)

Step 10: Install new O-rings and reconnect A/C lines

• Remove old O-rings with a pick tool (don’t scratch the metal sealing surfaces).
• Install new O-rings and lightly coat them with clean PAG A/C oil before assembly.
• Reconnect the A/C lines and tighten the retaining bolt using a 10mm socket.
• Torque spec (typical): Torque to 18 Nm (13 ft-lbs)

Step 11: Reinstall the belt and shields

• Reinstall the serpentine belt using the serpentine belt tool (specialty), ensuring it sits fully in every pulley groove.
• Reinstall the splash shield/undertray using a 10mm socket and flat trim tool.

Step 12: Evacuate (vacuum) the A/C system

• Reconnect the manifold gauge set for R-134a (specialty).
• Connect the vacuum pump (specialty) and pull vacuum for at least 30–45 minutes.
• Close the valves and verify vacuum holds for 10–15 minutes (a drop suggests a leak).

Step 13: Recharge with R-134a by weight

• Charge using a refrigerant scale (specialty) (charging by pressure alone is not accurate).
• Add the exact refrigerant weight listed on the under-hood A/C label.
• Overcharge can damage the new compressor.

Step 14: Reconnect battery and function test

• Reconnect the negative battery cable using a 10mm socket.
• Start the engine, set A/C to MAX, blower high, and confirm the compressor engages and air gets cold.
• Check for leaks using a UV dye leak light (specialty) if dye is present, or watch for oily residue at fittings.

---

✅ After Repair

• Verify stable vent temperature and normal cycling (no rapid clicking on/off).
• Recheck the belt alignment with the engine off (belt should be centered on pulleys).
• Listen for abnormal noises (grinding/squeal). Shut it off if heard.
• If cooling is weak, confirm the exact refrigerant charge amount was installed by weight.

---

💰 DIY vs Shop Cost

Shop Cost: $1,100-$2,000 (parts + labor, includes recover/evac/recharge)

DIY Cost: $350-$900 (parts only, assuming you already have A/C specialty tools)

You Save: $300-$1,200 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 3-5 hours.

---
