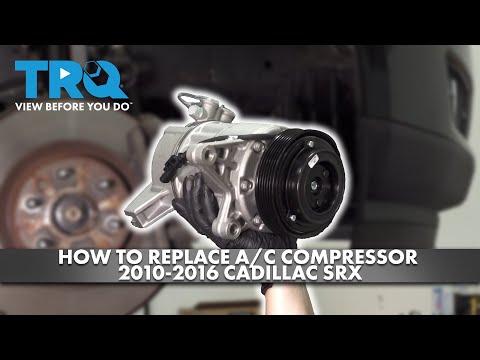

🔧 SRX - A/C Compressor Replacement

Replacing the A/C compressor on your SRX means removing the drive belt from the compressor, disconnecting the refrigerant lines, swapping the compressor, then pulling a vacuum and recharging the system. The “why” matters: the A/C system must be properly evacuated and recharged by weight, or you can damage the new compressor and get poor cooling.

Difficulty Level: Advanced | Estimated Time: 3-6 hours

Assumption: Stock A/C system using R-134a (check underhood label).

---

⚠️ Safety & Precautions

• ⚠️ Do not vent refrigerant to the air; it must be recovered with proper equipment.
• ⚠️ Wear eye protection and gloves; liquid refrigerant can cause frostbite instantly.
• ⚠️ Keep dirt out of open A/C lines; cap/plug every line immediately.
• ⚠️ Disconnect the negative battery cable before unplugging the compressor electrical connector.
• ⚠️ Support the vehicle on jack stands if you lift it; never rely on a jack alone.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Metric socket set (8mm-18mm)
• 3/8" drive ratchet
• 1/2" drive breaker bar
• Torque wrench (10-150 ft-lbs)
• Serpentine belt tool (specialty)
• A/C manifold gauge set for R-134a (specialty)
• Vacuum pump (specialty)
• Refrigerant recovery machine (specialty)
• Trim clip remover
• Flat-blade screwdriver
• Picks or O-ring removal tool
• Line caps/plugs assortment
• Shop rags
• Flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• A/C compressor assembly - Qty: 1
• A/C compressor manifold O-ring set - Qty: 1
• R-134a refrigerant - Qty: As needed to match underhood label
• A/C compressor oil (PAG oil per underhood label/service info) - Qty: As needed
• Serpentine belt - Qty: 1 (recommended if belt is cracked/glazed)
• A/C system flush solvent - Qty: 1 (only if contamination is present)

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Have the refrigerant professionally recovered first, or use a refrigerant recovery machine (a machine that safely pulls refrigerant into a storage tank).
• Open the hood and let the engine cool completely.
• Disconnect the negative battery cable using a 10mm socket.
• Locate the underhood A/C label and note the exact refrigerant charge amount; you must recharge by weight.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Recover the refrigerant (required)

• Connect your A/C manifold gauge set for R-134a (specialty) to the high and low service ports.
• Use a refrigerant recovery machine (specialty) to recover the refrigerant completely.
• If you can’t recover refrigerant, stop here.

Step 2: Gain access to the compressor

• Remove any upper engine covers using a flat-blade screwdriver and/or trim clip remover as needed.
• If the intake duct blocks access, loosen clamps using an 8mm socket and remove the duct.
• If needed for access from below, raise the front with a floor jack (rated 3-ton minimum) and support with jack stands (rated 3-ton minimum).

Step 3: Remove the serpentine belt from the A/C compressor

• Use a serpentine belt tool (specialty) (a long handled tool that turns the belt tensioner) to rotate the tensioner and relieve belt tension.
• Slip the belt off the A/C compressor pulley only, then slowly release the tensioner.
• Take a photo of belt routing first.

Step 4: Unplug the compressor electrical connector

• Find the compressor connector and release the lock using a pick or flat-blade screwdriver.
• Unplug the connector and move it aside.

Step 5: Disconnect the A/C lines from the compressor

• Place shop rags under the compressor to catch any oil drips.
• Remove the compressor manifold/block retaining bolt(s) using the correct metric socket.
• Carefully pull the line manifold straight off the compressor.
• Immediately install line caps/plugs on the open lines and compressor ports to keep moisture/dirt out.
• Remove old O-rings using picks or O-ring removal tool.

Step 6: Remove the compressor mounting bolts and remove the compressor

• Support the compressor by hand.
• Remove the compressor mounting bolts using a ratchet and metric socket.
• Lower and remove the compressor from the vehicle.
• Torque: Reinstall fasteners to factory GM specification using a torque wrench.

Step 7: Prepare the new compressor (oil balancing)

• Check the new compressor instructions for oil amount already installed.
• If the old compressor still has oil, drain it into a measuring container (use shop rags and a flashlight to see).
• Add the correct type/amount of A/C compressor oil (PAG oil per underhood label/service info) so the system total is correct.
• Wrong oil amount can kill the new compressor.

Step 8: Install the new compressor

• Position the new compressor and start mounting bolts by hand to avoid cross-threading.
• Tighten mounting bolts using a ratchet and metric socket.
• Torque: Tighten to factory GM specification using a torque wrench.

Step 9: Reconnect the A/C lines with new O-rings

• Install new O-rings from the A/C compressor manifold O-ring set.
• Lightly lubricate O-rings with a small dab of PAG oil before assembly.
• Push the manifold/block straight into the compressor to avoid cutting O-rings.
• Install and tighten the manifold retaining bolt(s) using a ratchet and metric socket.
• Torque: Tighten to factory GM specification using a torque wrench.

Step 10: Reinstall the belt and remaining components

• Route the belt correctly, then use the serpentine belt tool (specialty) to rotate the tensioner.
• Slip the belt onto the A/C compressor pulley and slowly release the tensioner.
• Reinstall intake ducting using an 8mm socket for clamps.
• Reconnect the compressor electrical connector by hand until it clicks.
• Reconnect the negative battery cable using a 10mm socket.

Step 11: Evacuate (vacuum) the A/C system

• Connect the A/C manifold gauge set for R-134a (specialty).
• Connect a vacuum pump (specialty) and pull vacuum.
• Hold vacuum for a proper leak check (a steady vacuum indicates no large leaks).
• Moisture in the system causes poor cooling.

Step 12: Recharge the system by weight

• Recharge with R-134a refrigerant to the exact amount listed on the underhood label (by weight, not by pressure).
• Use the A/C manifold gauge set for R-134a (specialty) and follow the charging equipment instructions.
• Start the engine and set HVAC to MAX A/C and recirculation; verify the compressor engages.

---

✅ After Repair

• Confirm cold air at the vents and stable idle.
• Check for leaks at the compressor manifold connection (look for oily residue) using a flashlight.
• Listen for abnormal noise (grinding/squeal) from the compressor area.
• If the old compressor failed violently (metal debris), poor cooling may continue unless the system is cleaned and affected components are replaced.

---

💰 DIY vs Shop Cost

Shop Cost: $1,200-$2,500 (parts + labor + evac/recharge)

DIY Cost: $350-$1,200 (parts only, assuming you already have A/C equipment)

You Save: $850-$1,300 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2.5-4.5 hours.

---
