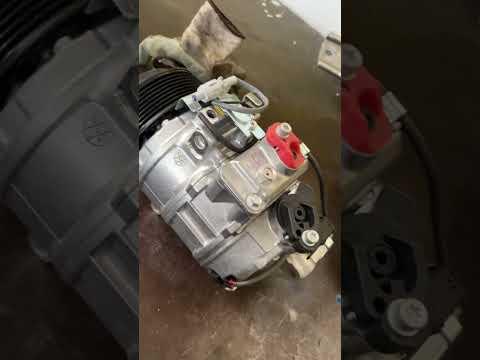

🔧 X5 - A/C Compressor Replacement

Replacing the A/C compressor on your X5 involves safely recovering the refrigerant, removing the drive belt, swapping the compressor, and then pulling a deep vacuum and recharging the system. This job is very doable for a careful DIYer, but the refrigerant handling and final recharge are the parts that usually require shop equipment.

Difficulty Level: Advanced | Estimated Time: 3-6 hours

Assumption: Your X5 uses R-134a refrigerant (typical for this model year).

---

⚠️ Safety & Precautions

• 🛑 Do NOT vent refrigerant to the air; recover it with proper equipment.
• 🧤 Wear safety glasses and nitrile gloves; liquid refrigerant can cause frostbite.
• 🔥 Work on a cool engine; keep hands clear of the belt drive area.
• 🔋 Disconnect the negative battery terminal before unplugging the compressor.
• ⚠️ Support the vehicle safely with jack stands; never rely on a jack alone.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Metric socket set 8mm-18mm
• Metric wrench set 8mm-18mm
• Torx bit set T20-T30
• E-Torx socket set E10-E14
• 3/8" drive ratchet
• 1/2" drive breaker bar
• Serpentine belt tool set (specialty)
• Torque wrench 5-60 Nm
• Trim clip removal tool
• Pick tool
• Drain pan
• Shop rags
• A/C manifold gauge set for R-134a (specialty)
• Refrigerant recovery machine for R-134a (specialty)
• Vacuum pump (specialty)
• Refrigerant scale (specialty)
• UV dye light (optional)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• A/C compressor (complete) - Qty: 1
• A/C compressor O-ring set - Qty: 1
• A/C receiver-drier / desiccant cartridge - Qty: 1
• PAG A/C compressor oil (R-134a compatible) - Qty: 1
• R-134a refrigerant - Qty: As required
• Serpentine belt - Qty: 1 Recommended if worn/cracked

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear tires.
• Have the refrigerant professionally recovered first if you don’t have a recovery machine.
• Disconnect the battery: open the rear cargo area battery access and use a 10mm socket to remove the negative terminal.
• Know these terms:
  • Receiver-drier: a moisture filter for the A/C system; replace it when the system is opened.
  • Pulling vacuum: using a vacuum pump to remove air/water before recharging.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Recover the refrigerant

• Connect the A/C manifold gauge set for R-134a (specialty) to the high/low service ports.
• Use the refrigerant recovery machine for R-134a (specialty) to fully recover the refrigerant per the machine’s instructions.
• Confirm both gauges read near zero before opening any A/C fittings.

Step 2: Raise the front and remove the lower splash shield

• Lift the front using a floor jack (rated 3-ton minimum) and support with jack stands (rated 3-ton minimum).
• Remove the belly pan / splash shield fasteners using a Torx T25 bit and 8mm socket (fastener types can vary).
• Use a trim clip removal tool for plastic clips to avoid breaking them.

Step 3: Remove the serpentine belt from the A/C compressor

• Before removing the belt, take a photo of the belt routing.
• Use a serpentine belt tool set (specialty) (a long handle tool made to move the tensioner) to rotate the belt tensioner and slip the belt off the A/C compressor pulley.
• Tip: Keep fingers out of pinch points.

Step 4: Disconnect the compressor electrical connector

• Locate the connector on the compressor.
• Release the lock tab using a pick tool, then unplug it by hand.

Step 5: Disconnect the A/C lines from the compressor

• Place a drain pan under the compressor and have shop rags ready.
• Remove the line retaining bolt(s) using an E-Torx socket (often E10/E12 depending on build).
• Gently wiggle the lines free; do not pry hard on aluminum tubes.
• Remove old O-rings with a pick tool. Do not scratch the sealing surfaces.
• Install new O-rings from the A/C compressor O-ring set and lightly lubricate them with PAG A/C compressor oil.
• Torque to 8 Nm (71 in-lbs) for the A/C line retaining bolt(s). Verify if your fastener differs.

Step 6: Remove the A/C compressor

• Support the compressor with one hand.
• Remove the compressor mounting bolts using an E-Torx socket and ratchet.
• Lower the compressor out carefully without bending nearby lines.
• Torque to 22 Nm (16 ft-lbs) for the compressor mounting bolts during install. Typical BMW spec—verify for your bolt size.

Step 7: Set the oil amount in the new compressor

• If the old compressor still has oil, pour it into a measuring cup (over a drain pan) to see how much came out.
• Add the same amount of fresh PAG A/C compressor oil into the new compressor (unless the new compressor instructions specify a different amount).
• Rotate the compressor hub by hand a few turns to distribute oil evenly.
• Tip: Too much oil can reduce cooling.

Step 8: Install the new compressor

• Position the compressor and hand-start the mounting bolts.
• Tighten evenly using an E-Torx socket and ratchet.
• Final tighten with a torque wrench 5-60 Nm: Torque to 22 Nm (16 ft-lbs).
• Reconnect the electrical connector until it clicks.

Step 9: Reconnect A/C lines with new O-rings

• Confirm new, oil-lubed O-rings are installed on the line ends.
• Seat the lines squarely, then install the retaining bolt(s) using the correct E-Torx socket.
• Final tighten with a torque wrench 5-60 Nm: Torque to 8 Nm (71 in-lbs).

Step 10: Replace the receiver-drier / desiccant cartridge

• The receiver-drier may be integrated into the condenser on many BMW setups; follow the part’s instructions for access.
• Use the appropriate Torx bit and socket to remove the drier cover/retainer, swap the cartridge, and install new seals if included.
• Tip: Keep openings capped to block moisture.

Step 11: Reinstall the serpentine belt and splash shield

• Route the belt exactly like your photo, then use the serpentine belt tool set (specialty) to move the tensioner and slip the belt back on.
• Double-check the belt sits fully in every pulley groove.
• Reinstall the belly pan using a Torx T25 bit and 8mm socket.

Step 12: Evacuate (vacuum) the system and recharge by weight

• Reconnect the battery negative terminal using a 10mm socket.
• Connect the A/C manifold gauge set for R-134a (specialty) and the vacuum pump (specialty).
• Pull vacuum for at least 30–45 minutes, then close valves and verify it holds vacuum for 10–15 minutes (leak check).
• Recharge using R-134a refrigerant measured on a refrigerant scale (specialty) (charge by weight, not by pressure).
• Tip: Under/overcharge causes poor cooling.

---

✅ After Repair

• Start the engine and set A/C to LO, max fan; confirm the compressor engages and air gets cold.
• Check for leaks at the compressor line connections (oily residue is a clue). Use a UV dye light (optional) if dye is present.
• Listen for belt squeal or abnormal compressor noise.
• If the A/C performance is weak, the most common causes are incorrect charge weight or an O-ring leak.

---
