🔧 550i - A/C Compressor Replacement

Replacing the A/C compressor means removing the old compressor, transferring the correct amount/type of compressor oil, installing new sealing O-rings, then pulling a vacuum and recharging the system. This repair matters because an incorrect install or recharge can quickly damage the new compressor and contaminate the A/C system.

Difficulty Level: Advanced | Estimated Time: 4-7 hours

Assumption: Your 550i uses R-134a; verify on the underhood A/C label.

---

⚠️ Safety & Precautions

• ⚠️ Refrigerant is hazardous and regulated—have the system professionally recovered before opening any A/C lines.
• ⚠️ Never vent refrigerant to the atmosphere; it can cause frostbite and eye injury.
• ⚠️ Work only on a fully cool engine; turbo/engine bay heat can burn you.
• ⚠️ Use jack stands anytime you’re under the car; never rely on a jack alone.
• ⚠️ Keep dirt out of A/C lines; cap/plug openings immediately to prevent moisture contamination.
• ⚠️ Disconnecting the battery is recommended to prevent accidental shorts at the compressor connector.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Metric socket set (8mm-16mm)
• 10mm socket
• 13mm socket
• 16mm socket
• Ratchet (3/8")
• Torque wrench (5-60 Nm range)
• E-Torx socket set (E10-E14)
• Torx bit set (T20-T30)
• Flat trim clip tool
• Serpentine belt tool (specialty)
• Line plug/cap kit (specialty)
• A/C manifold gauge set (specialty)
• Vacuum pump (specialty)
• Refrigerant scale (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• A/C compressor - Qty: 1
• A/C compressor O-ring seal set - Qty: 1
• A/C refrigerant (R-134a) - Qty: As required by underhood label
• PAG compressor oil (R-134a compatible) - Qty: As required
• Serpentine belt - Qty: 1 Optional but smart if worn

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Have an A/C shop recover the refrigerant first (system must be empty before you disconnect lines).
• Open the trunk and disconnect the battery negative cable using a 10mm socket.
• Gather a line plug/cap kit; you will cap the A/C lines immediately after disconnecting them.
• Locate the underhood A/C label and note the exact refrigerant type and charge amount.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise and support the front of the car

• Place wheel chocks behind the rear wheels.
• Lift the front with a floor jack (rated 3-ton minimum) and support it with jack stands (rated 3-ton minimum).
• Give the car a firm push to confirm it’s stable before crawling underneath.

Step 2: Remove the lower splash shield/undertray

• Use a Torx T25 bit and 8mm socket to remove the fasteners holding the undertray.
• Use a flat trim clip tool to pop out any plastic clips without breaking them.
• Set the undertray and hardware aside in a tray so nothing gets lost.

Step 3: Remove the serpentine belt from the A/C compressor

• Use a serpentine belt tool (specialty) to rotate the belt tensioner and release belt tension.
• Slide the belt off the A/C compressor pulley first, then slowly release the tensioner.
• Tip: Take a photo of belt routing first.

Step 4: Disconnect the A/C compressor electrical connector

• Locate the compressor connector at the rear/side of the compressor.
• Release the lock tab carefully and unplug it by hand (use a small pick tool only if needed).

Step 5: Remove the A/C refrigerant lines from the compressor

• Confirm refrigerant has been professionally recovered before proceeding.
• Use an E-Torx socket (commonly E10) with a 3/8" ratchet to remove the line retaining bolts.
• Gently wiggle the lines free—do not pry hard on aluminum lines.
• Immediately cap the open lines and compressor ports using a line plug/cap kit (specialty).
• Torque to 8 Nm (71 in-lbs) for the refrigerant line retaining bolts (typical BMW spec for small A/C line fasteners).

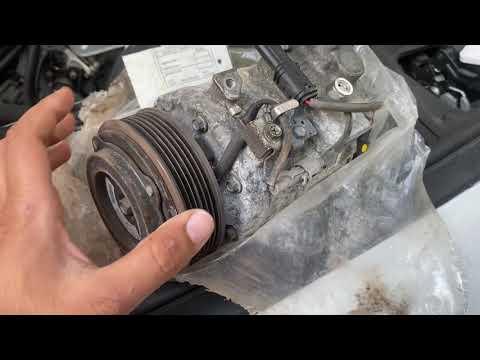

Step 6: Unbolt and remove the A/C compressor

• Support the compressor with one hand while removing bolts with a socket/E-Torx socket as equipped.
• Remove the compressor mounting bolts using an E12 socket (common on BMW accessory brackets).
• Lower the compressor out carefully; it’s heavier than it looks.
• Torque to 25 Nm (18 ft-lbs) for A/C compressor mounting bolts (typical BMW accessory mounting torque).

Step 7: Prepare the new compressor (oil + seals)

• Remove and replace the compressor line O-rings with the new ones from the A/C compressor O-ring seal set.
• Lightly coat each O-ring with clean PAG compressor oil (R-134a compatible) before installation.
• If your new compressor is not pre-filled correctly, measure and set oil amount to match what was removed from the old compressor (drain old into a measuring cup).
• Tip: Too much oil reduces cooling.

Step 8: Install the new compressor

• Position the compressor and start all mounting bolts by hand to avoid cross-threading.
• Tighten with an E12 socket and finish with a torque wrench.
• Torque to 25 Nm (18 ft-lbs) for A/C compressor mounting bolts.

Step 9: Reconnect the A/C lines

• Remove the caps/plugs and connect the lines straight in (don’t force them at an angle).
• Install retaining bolts using an E10 socket and tighten evenly.
• Torque to 8 Nm (71 in-lbs) for the line retaining bolts.

Step 10: Reconnect the compressor electrical connector

• Plug the connector in until it clicks and the lock is fully seated.

Step 11: Reinstall the serpentine belt

• Route the belt correctly and use the serpentine belt tool (specialty) to rotate the tensioner.
• Slip the belt onto the compressor pulley last, then release the tensioner slowly.
• Inspect that the belt is centered on every pulley.

Step 12: Reinstall undertray and lower the car

• Reinstall the undertray using a Torx T25 bit and 8mm socket.
• Lower the car safely from the jack stands using the floor jack.

Step 13: Evacuate (vacuum) and recharge the A/C system

• Connect an A/C manifold gauge set (specialty) to the high/low service ports.
• Use a vacuum pump (specialty) to pull vacuum for at least 30–45 minutes to remove air and moisture.
• Close the manifold valves and confirm it holds vacuum (leak check) for 10–15 minutes.
• Recharge by weight using a refrigerant scale (specialty) to the exact amount on the underhood label.
• Tip: Charging “by pressure” is often wrong.

Step 14: Reconnect the battery

• Reconnect the negative terminal using a 10mm socket.

---

✅ After Repair

• Start the engine and set HVAC to LO temp, A/C ON, recirculation ON, and blower medium.
• Confirm the compressor engages and vent air gets cold within a few minutes.
• Check for abnormal belt noise and confirm the belt tracks straight.
• Inspect all A/C line connections for oily residue (a common sign of a leak).
• If cooling is weak or pressures look abnormal, stop and re-check charge amount and seals.

---

💰 DIY vs Shop Cost

Shop Cost: ₹45,000-₹120,000 (parts + labor + evac/recharge)

DIY Cost: ₹25,000-₹80,000 (parts only, assuming you have access to A/C service tools)

You Save: ₹20,000-₹40,000 by doing it yourself!

Shop labor rates vary but typically run ₹1,500-₹3,000/hour. This repair takes a shop approximately 4-6 hours.

---
