🔧 340i - A/C Compressor Replacement

The A/C compressor pressurizes refrigerant so your A/C can cool. Replacing it involves removing the drive belt, swapping the compressor, and then properly vacuuming and recharging the refrigerant system so it cools correctly and doesn’t leak.

Difficulty Level: Advanced | Estimated Time: 3-6 hours

Assumption: typical F30 340i (B58) layout; torque values can vary—verify if you have factory specs.

---

⚠️ Safety & Precautions

• ⚠️ Refrigerant must be recovered properly; venting is illegal and dangerous (frostbite/eye injury).
• ⚠️ Do not open A/C lines unless the system is fully empty (professionally recovered).
• ⚠️ Wear safety glasses and gloves; refrigerant oil can irritate skin and eyes.
• ⚠️ Keep hands clear of the belt path; the tensioner is spring-loaded.
• ⚠️ Battery disconnect is recommended if you’ll unplug connectors near the front of the engine.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Nitrile gloves
• Socket set (8mm, 10mm, 13mm)
• E-Torx socket set (E10, E12)
• Torx bit set (T20, T25, T30)
• 3/8" ratchet
• 3/8" torque wrench (10-80 Nm range)
• Trim clip removal tool
• Pick tool
• Serpentine belt tool (specialty)
• A/C manifold gauge set (specialty)
• A/C vacuum pump (specialty)
• Refrigerant scale (specialty)
• UV leak detection glasses (optional)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• A/C compressor - Qty: 1
• A/C compressor O-ring kit - Qty: 1
• PAG A/C oil (BMW-compatible) - Qty: 1
• R134a refrigerant (vehicle-specific charge amount) - Qty: As required
• Serpentine belt - Qty: 1 (recommended if belt is worn/oil-soaked)

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear tires.
• Let the engine cool fully; you’ll be working close to hot pipes and the radiator area.
• Have the refrigerant professionally recovered first, or confirm the system is completely empty.
• Disconnect the negative battery terminal using a 10mm socket (recommended).
• Know your refrigerant charge amount: read the underhood A/C label and recharge by weight (not “by pressure”).

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise and support the car

• Use a floor jack (rated 3-ton minimum) to lift the front of the car at the proper jack point.
• Set the car down onto jack stands (rated 3-ton minimum).
• Add wheel chocks at the rear wheels.

Step 2: Remove the lower splash shield (undertray)

• Use Torx T25 / Torx T30 and an 8mm socket (varies by fastener) to remove the undertray screws/bolts.
• Use a trim clip removal tool for any plastic push-clips.
• Set hardware aside in a tray so nothing gets lost.

Step 3: Relieve tension and remove the serpentine belt

• Use a serpentine belt tool (specialty) on the belt tensioner and rotate to relieve tension (the tensioner is a spring-loaded arm that keeps the belt tight).
• Slip the belt off the A/C compressor pulley first, then remove the belt from the other pulleys.
• Tip: take a quick photo of belt routing.

Step 4: Disconnect the compressor electrical connector

• Locate the compressor on the lower front/side of the engine.
• Use a pick tool to gently release the connector lock (don’t force it).
• Unplug the connector by hand.

Step 5: Remove the refrigerant lines from the compressor

• Put on safety glasses and nitrile gloves.
• Use the correct socket/bit for the line retaining bolt (commonly E10 or 10mm socket, depending on fitting).
• Carefully pull the lines straight off the compressor (do not pry hard on the aluminum tubes).
• Immediately cap/cover the open lines to keep dirt/moisture out.
• Remove old O-rings using a pick tool.

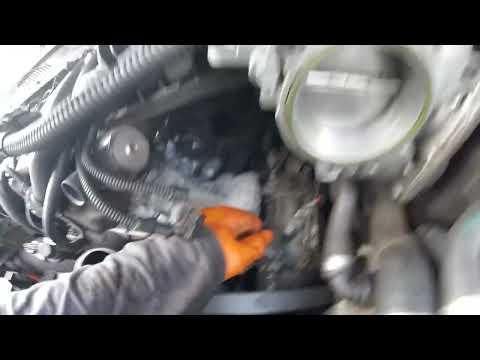

Step 6: Unbolt and remove the A/C compressor

• Support the compressor with one hand.
• Use an E12 / E10 socket (commonly used on BMW front accessory hardware) with a 3/8" ratchet to remove the compressor mounting bolts.
• Remove the compressor from below the car.
• Torque to 25 Nm (18 ft-lbs) for compressor mounting bolts (common BMW spec; verify if available).

Step 7: Prep the new compressor (oil + O-rings)

• Compare the new compressor to the old one (same ports, connector, mounting ears).
• Install new O-rings from the A/C compressor O-ring kit.
• Lightly lubricate O-rings with PAG A/C oil (this helps sealing and prevents tearing).
• If your compressor doesn’t come pre-filled, add the correct oil amount per BMW procedure (oil balance depends on what was replaced).
• Tip: keep ports capped until install.

Step 8: Install the new compressor

• Position the compressor and start all mounting bolts by hand.
• Tighten with an E10/E12 socket and 3/8" ratchet.
• Final-tighten using a 3/8" torque wrench: Torque to 25 Nm (18 ft-lbs) (verify if available).

Step 9: Reinstall the refrigerant lines

• Carefully align the lines squarely to the compressor ports.
• Install the retaining bolt using the same tool as removal (E10 or 10mm socket, as equipped).
• Snug first, then torque: Torque to 9 Nm (80 in-lbs) for line retaining bolt (typical BMW A/C fitting spec; verify if available).
• Reconnect the compressor electrical connector until it clicks.

Step 10: Reinstall the serpentine belt

• Route the belt according to the belt routing diagram (often on a sticker underhood) or the photo you took.
• Use the serpentine belt tool (specialty) to move the tensioner and slip the belt onto the last pulley.
• Double-check the belt is fully seated in every pulley groove.

Step 11: Reinstall the undertray

• Refit the undertray.
• Install fasteners using Torx T25/Torx T30 and an 8mm socket.
• Torque to 8 Nm (71 in-lbs) for small undertray screws (typical; don’t overtighten into plastic).

Step 12: Vacuum and recharge the A/C system

• Connect an A/C manifold gauge set (specialty) (it shows high/low side pressures) to the high and low service ports.
• Connect the A/C vacuum pump (specialty) and pull vacuum for at least 30 minutes to boil out moisture.
• Close valves and verify it holds vacuum (a loss indicates a leak).
• Recharge with R134a refrigerant using a refrigerant scale (specialty) by weight: Use the exact grams shown on the underhood A/C label.
• Tip: “By weight” prevents compressor damage.

---

✅ After Repair

• Reconnect the battery terminal using a 10mm socket (if disconnected).
• Start the engine and set A/C to LO with the blower on medium.
• Verify the compressor engages and the center vents get cold within a few minutes.
• Check for leaks at the compressor fittings (look for oily residue; UV dye helps if used).
• Listen for belt noise; if you hear squeal, re-check belt routing and seating.

---

💰 DIY vs Shop Cost

Shop Cost: $1,200-$2,200 (parts + labor + evac/recharge)

DIY Cost: $350-$900 (parts only, plus $150-$300 if a shop evacuates/recharges)

You Save: $450-$1,400 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 3-5 hours.

---
