🔧 A4 - A/C Compressor Replacement

Your A4’s A/C compressor is the “pump” that circulates refrigerant and builds the pressure difference needed to make cold air. Replacing it is mostly bolt-on work, but the refrigerant must be properly recovered and the system must be vacuumed and recharged to the exact spec.

Difficulty Level: Advanced | Estimated Time: 3-6 hours (plus evac/recharge time)

Assumption: R-134a system with OE-style compressor.

---

⚠️ Safety & Precautions

• ⚠️ Do not vent refrigerant to the air—have it recovered with proper equipment.
• ⚠️ Wear eye protection and gloves; liquid refrigerant can cause frostbite.
• ⚠️ Work on a cool engine; keep hands clear of the belt drive.
• ⚠️ Support the car on jack stands before working underneath.
• ⚠️ Battery disconnect is recommended to prevent accidental fan/belt engagement.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Nitrile gloves
• Metric socket set (8mm-18mm)
• Ratchet (3/8" drive)
• Torque wrench (10-200 Nm range)
• Torx bit set (T25, T30)
• Hex bit set (5mm, 6mm)
• Serpentine belt tool or long 16mm wrench
• Trim clip remover
• Pick set
• Line plug/cap set
• Catch pan
• Measuring cup (graduated, mL/oz)
• Manifold gauge set for R-134a (specialty)
• Vacuum pump (specialty)
• Refrigerant recovery machine (specialty)
• Refrigerant scale (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• A/C compressor - Qty: 1
• A/C compressor O-ring set (suction/discharge line seals) - Qty: 1
• Refrigerant (R-134a) - Qty: As required by underhood label
• A/C compressor oil (PAG, OE-correct spec) - Qty: As required
• Receiver/drier or desiccant service kit (if externally serviceable) - Qty: 1
• Serpentine belt (optional, if worn/cracked) - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear wheels.
• Have a shop recover the refrigerant first, or use a refrigerant recovery machine (a device that safely pulls refrigerant into a storage tank).
• Disconnect the negative battery cable using a 10mm socket.
• Plan to replace every opened A/C seal (O-rings) and keep all A/C lines capped to prevent moisture entry.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Recover the refrigerant (required)

• Connect the manifold gauge set for R-134a (specialty) to the A/C service ports.
• Use a refrigerant recovery machine (specialty) to recover the refrigerant completely.
• Once recovered, disconnect the gauges and keep port caps installed.

Step 2: Raise the car and remove the lower covers

• Lift the front with a floor jack (rated 3-ton minimum) and support with jack stands (rated 3-ton minimum).
• Remove the lower engine undertray using a Torx T25 bit and ratchet (3/8" drive).
• Set hardware aside in a tray. Keep screws grouped by location.

Step 3: Remove the serpentine belt from the compressor

• Rotate the belt tensioner using a serpentine belt tool or long 16mm wrench to relieve tension.
• Slip the belt off the A/C compressor pulley and let it rest out of the way.
• Inspect the belt; replace it if cracked, glazed, or frayed.

Step 4: Disconnect the compressor electrical connector

• Unplug the compressor connector by releasing the lock tab using a pick set (a small hook tool used to lift clips without breaking them).
• Move the harness aside so it can’t snag during removal.

Step 5: Disconnect the A/C lines at the compressor

• Place a catch pan under the compressor.
• Remove the refrigerant line retaining bolt(s) using the correct metric socket or hex bit (varies by fitting).
• Carefully pull the lines straight off the compressor (do not pry hard).
• Immediately cap/plug the open lines and compressor ports using a line plug/cap set.
• Torque to 10 Nm (7 ft-lbs) for the A/C line retaining bolt(s) during reassembly.

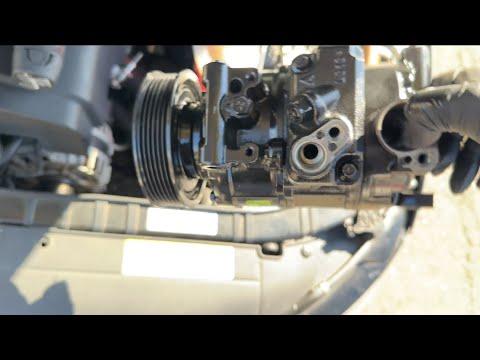

Step 6: Remove the A/C compressor mounting bolts

• Support the compressor with one hand.
• Remove the compressor mounting bolts using a metric socket and ratchet (3/8" drive).
• Lower the compressor out from below.
• Torque to 25 Nm (18 ft-lbs) for compressor mounting bolts during reassembly.

Step 7: Match the oil amount (critical)

• Drain the old compressor oil into a measuring cup (graduated, mL/oz) and record the amount.
• Check the new compressor documentation: some come pre-filled, some are shipped with oil for storage.
• Add/remove oil so the new compressor has the correct oil amount for your A4 (use A/C compressor oil (PAG, OE-correct spec)).
• Too much oil reduces cooling.

Step 8: Install new O-rings and reinstall the lines

• Remove old O-rings with a pick set.
• Lightly coat the new O-rings with a small film of A/C compressor oil (PAG, OE-correct spec) and install them on the line ends.
• Reconnect the suction/discharge lines straight onto the compressor (no twisting).
• Install and tighten the line retaining bolt(s) using the correct metric socket or hex bit.
• Torque to 10 Nm (7 ft-lbs).

Step 9: Install the new compressor

• Position the compressor and start all mounting bolts by hand to avoid cross-threading.
• Tighten with a metric socket and ratchet (3/8" drive), then final-tighten with a torque wrench.
• Torque to 25 Nm (18 ft-lbs).
• Reconnect the electrical connector until it clicks.

Step 10: Reinstall the serpentine belt and undertray

• Route the belt correctly, then relieve tension using a serpentine belt tool or long 16mm wrench and slip the belt back onto the compressor pulley.
• Verify the belt is seated in every pulley groove by sight and feel.
• Reinstall the undertray using a Torx T25 bit and ratchet (3/8" drive).

Step 11: Vacuum the system (remove air/moisture)

• Connect the manifold gauge set for R-134a (specialty) and a vacuum pump (specialty).
• Pull vacuum for at least 30–45 minutes.
• Close the valves and verify it holds vacuum (a big rise suggests a leak).

Step 12: Recharge with the exact refrigerant weight

• Recharge using Refrigerant (R-134a) on a refrigerant scale (specialty).
• Charge to the exact amount listed on your underhood A/C label (do not guess by pressure).
• If you don’t have the equipment, have a shop perform the vacuum/charge step after you finish the mechanical install.

---

✅ After Repair

• Reconnect the battery using a 10mm socket.
• Start the engine and set A/C to LO, recirculation ON, and blower medium.
• Verify the compressor engages and the center vents blow cold after a few minutes.
• Check for abnormal noises, belt squeal, and any oily residue at A/C fittings (a common leak sign).
• If cooling is weak, have the system leak-checked and confirm the charge weight is correct.

---

💰 DIY vs Shop Cost

Shop Cost: $1,200-$2,200 (parts + labor + evac/recharge)

DIY Cost: $350-$900 (parts only, assuming a shop handles recovery/charge)

You Save: $850-$1,300 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 3-5 hours.

---
