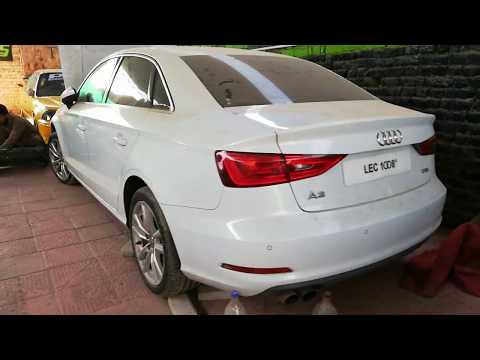

🔧 A3 - A/C Compressor Replacement

The A/C compressor pressurizes refrigerant so your A/C can blow cold. Replacing it involves removing the belt, disconnecting the refrigerant lines, swapping the compressor, then vacuuming and recharging the system to the exact factory specification.

Difficulty Level: Advanced | Estimated Time: 3-6 hours

---

⚠️ Safety & Precautions

• ⚠️ Refrigerant is high-pressure and can cause severe frostbite or eye injury—do not loosen A/C lines until the system is properly recovered.
• ⚠️ In the U.S., venting refrigerant is illegal—have the refrigerant recovered with proper equipment.
• ⚠️ Keep dirt/moisture out of the A/C system—cap/plug lines immediately after disconnecting.
• ⚠️ Let the engine cool before working near the radiator fans and belt drive.
• ⚠️ Support the car on jack stands—never rely on a floor jack alone.
• ⚠️ Battery disconnect is recommended when unplugging the compressor electrical connector.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Nitrile gloves
• Torx T25 bit
• Torx T30 bit
• 10mm socket
• 13mm socket
• 16mm socket
• 3/8" ratchet
• 3/8" torque wrench (10–60 Nm range)
• 6mm hex bit socket
• Trim clip remover
• Pick tool
• Line caps/plugs assortment
• A/C manifold gauge set (specialty)
• A/C vacuum pump (specialty)
• Refrigerant recovery machine (specialty)
• Refrigerant scale (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• A/C compressor - Qty: 1
• A/C compressor sealing O-ring set - Qty: 1
• PAG A/C oil (correct spec for compressor) - Qty: 1
• R-134a refrigerant (charge amount per under-hood label) - Qty: 1
• Serpentine belt - Qty: 1
• Receiver/drier or condenser/drier assembly (if required for your A/C system design) - Qty: 1

---

📋 Before You Begin

• 🅿️ Park on level ground, set the parking brake, and chock the rear wheels.
• 🔌 Disconnect the negative battery terminal using a 10mm socket.
• 🧰 Have the refrigerant professionally recovered, or use a refrigerant recovery machine (specialty) before opening the system.
• 🏷️ Read the A/C label under the hood for the exact refrigerant type and fill weight—charge by weight, not by pressure.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Recover the refrigerant

• Connect an A/C manifold gauge set (specialty) to the high- and low-side service ports (a manifold gauge set shows system pressure on two gauges).
• Use a refrigerant recovery machine (specialty) to fully recover the refrigerant from the system.
• Do not crack lines “to see if empty”.

Step 2: Raise the front and remove the belly pan

• Lift the front with a floor jack (rated 3-ton minimum) and support with jack stands (rated 3-ton minimum).
• Remove the lower engine cover/belly pan fasteners using Torx T25 bit and Torx T30 bit.
• Use a trim clip remover for any plastic push clips.

Step 3: Remove the serpentine belt

• Place a 16mm socket on the belt tensioner and rotate it to relieve belt tension.
• Slip the belt off the A/C compressor pulley, then remove it fully.
• Snap a photo of belt routing first.

Step 4: Disconnect the compressor electrical connector

• Locate the compressor connector and release the lock using a pick tool.
• Unplug the connector and move the harness aside.

Step 5: Disconnect the A/C lines from the compressor

• Remove the line retaining bolt(s) at the compressor using a 6mm hex bit socket (common for Audi line manifolds).
• Carefully pull the line block straight off the compressor—do not bend the aluminum lines.
• Immediately cap/plug the open lines and compressor ports using line caps/plugs assortment.
• Remove old O-rings with a pick tool (don’t scratch the sealing surfaces).
• Assumption: Typical line-manifold bolt torque is Torque to 9 Nm (80 in-lbs); verify for your compressor/line set.

Step 6: Unbolt and remove the compressor

• Support the compressor by hand.
• Remove the compressor mounting bolts using a 13mm socket.
• Lower and remove the compressor from below.
• Assumption: Typical compressor mounting bolt torque is Torque to 25 Nm (18 ft-lbs); verify for your compressor bracket.

Step 7: Prepare the new compressor (oil balancing)

• Drain the old compressor oil into a measuring container by rotating the hub by hand and tipping it out (this tells you how much oil was in it).
• Add the same amount of the correct PAG A/C oil to the new compressor unless the new unit’s instructions specify otherwise.
• Rotate the new compressor hub by hand 10–15 turns to distribute oil.
• Too much oil can reduce cooling.

Step 8: Install the new compressor

• Position the compressor and hand-start all mounting bolts.
• Tighten the mounting bolts evenly using a 13mm socket, then final tighten with a 3/8" torque wrench.
• Torque to 25 Nm (18 ft-lbs) (verify if your compressor kit specifies different).

Step 9: Install new O-rings and reconnect the A/C lines

• Lubricate new O-rings with clean PAG A/C oil.
• Install O-rings onto the line manifold (make sure they aren’t twisted).
• Push the line manifold straight onto the compressor and install the retaining bolt(s) using a 6mm hex bit socket.
• Torque to 9 Nm (80 in-lbs) (verify if your compressor kit specifies different).

Step 10: Reinstall the belt and belly pan

• Route the belt correctly and rotate the tensioner with a 16mm socket.
• Slip the belt onto the last pulley and slowly release the tensioner.
• Reinstall the belly pan using Torx T25 bit and Torx T30 bit.

Step 11: Evacuate and recharge the A/C system by weight

• Reconnect the battery negative terminal using a 10mm socket.
• Connect the A/C manifold gauge set (specialty).
• Pull a deep vacuum with an A/C vacuum pump (specialty) for 30–45 minutes (this removes air and moisture).
• Close the valves and do a 10–15 minute vacuum hold test—if vacuum drops, you still have a leak.
• Recharge using a refrigerant scale (specialty) to the exact amount listed on the under-hood label.

---

✅ After Repair

• 🧪 Start the engine and set HVAC to LO, A/C ON, blower mid-high, and recirculation ON.
• 🕵️ Check for leaks at the compressor line manifold (listen for hiss; look for oily residue).
• 📈 Verify vent temperatures drop and that pressures look stable on the manifold gauges.
• 🔍 If cooling is weak, do not “top off”—recover and recharge by weight again.

---

💰 DIY vs Shop Cost

Shop Cost: $1,200-$2,200 (parts + labor + evac/recharge)

DIY Cost: $350-$900 (parts only, assuming you have access to A/C service equipment)

You Save: $600-$1,500 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2.5-4.5 hours.

---
