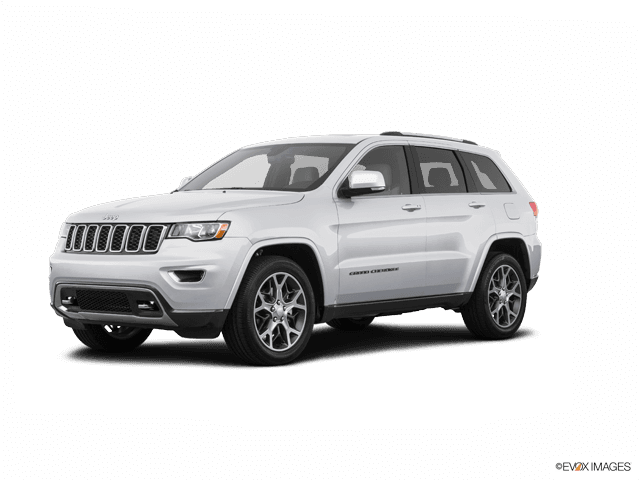

🔧 Grand Cherokee - A/C Compressor Replacement

Replacing the A/C compressor on your Grand Cherokee requires safely recovering the refrigerant, removing the drive belt, disconnecting the A/C lines and electrical connector, then installing the new compressor with fresh O-rings and the correct refrigerant oil balance.

This repair also requires vacuuming and recharging the A/C system with the correct refrigerant amount. Because refrigerant handling is regulated and can injure you, the refrigerant recovery and final recharge should be done with certified A/C equipment.

Difficulty Level: Advanced | Estimated Time: 3-5 hours

---

⚠️ Safety & Precautions

• ⚠️ Do not vent refrigerant into the air. Have the A/C system professionally recovered before opening any A/C lines.
• ⚠️ Refrigerant can cause frostbite and eye injury. Wear safety glasses and nitrile gloves.
• ⚠️ Disconnect the negative battery terminal before working near the compressor wiring and engine accessory drive.
• ⚠️ Keep hands, tools, and clothing away from the serpentine belt path.
• ⚠️ The engine, radiator, and A/C lines may be hot. Let the engine cool fully before starting.
• ⚠️ If the old compressor failed internally, metal debris may be in the A/C system. Replace the condenser and receiver/drier, and flush approved lines before installing the new compressor.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 13mm socket
• 15mm socket
• 3/8-inch ratchet
• 3/8-inch drive extension set
• Serpentine belt tool (specialty)
• Torque wrench 10-100 Nm
• Flat trim clip remover
• Plastic pick tool
• A/C manifold gauge set R-134a (specialty)
• A/C vacuum pump 2-stage (specialty)
• Refrigerant recovery machine R-134a (specialty)
• Digital refrigerant scale (specialty)
• PAG oil measuring cup
• Floor jack rated 3-ton minimum
• Jack stands rated 3-ton minimum
• Wheel chocks
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• A/C compressor with clutch - Qty: 1
• A/C compressor line O-ring seal kit - Qty: 1
• PAG refrigerant oil - Qty: As needed
• R-134a refrigerant - Qty: Charge by under-hood label specification
• Serpentine belt - Qty: 1
• A/C condenser with receiver/drier - Qty: 1 if compressor failed internally
• A/C expansion valve - Qty: 1 if compressor failed internally or system was contaminated

---

📋 Before You Begin

• Park your Grand Cherokee on level ground and set the parking brake.
• Place wheel chocks behind the rear wheels so the vehicle cannot roll.
• Have the A/C refrigerant recovered using a refrigerant recovery machine R-134a before loosening any A/C fitting.
• Open the hood and let the engine cool completely.
• Use a 10mm socket to disconnect the negative battery cable, then isolate the cable so it cannot touch the battery post.
• Use a floor jack rated 3-ton minimum to lift the front of the vehicle, then support it with jack stands rated 3-ton minimum.
• A serpentine belt tool is a long-handled tool that moves the belt tensioner so you can remove or install the belt safely.
• An A/C manifold gauge set connects to the high- and low-side A/C service ports so the system can be vacuumed, checked, and charged correctly.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Recover the Refrigerant

• Connect a refrigerant recovery machine R-134a and A/C manifold gauge set R-134a to the A/C service ports.
• Recover the refrigerant until the machine shows the system is empty.
• Do not continue until both gauge readings are at zero pressure.
• Never loosen pressurized A/C lines.

Step 2: Disconnect the Battery

• Use a 10mm socket and 3/8-inch ratchet to loosen the negative battery terminal clamp.
• Remove the negative cable from the battery and position it away from the terminal.

Step 3: Raise and Support the Vehicle

• Place wheel chocks behind the rear wheels.
• Use a floor jack rated 3-ton minimum to lift the front of your Grand Cherokee at the proper front lift point.
• Place jack stands rated 3-ton minimum under the front support points.
• Lower the vehicle gently onto the stands and give the vehicle a light shake to confirm it is stable.

Step 4: Remove Lower Access Panels if Equipped

• Use a 10mm socket to remove the lower splash shield fasteners.
• Use a flat trim clip remover to remove any plastic push clips.
• Set the splash shield aside.
• Keep clips in a small cup.

Step 5: Remove the Serpentine Belt from the Compressor Pulley

• Take a picture of the belt routing before removal.
• Place the serpentine belt tool on the belt tensioner.
• Rotate the tensioner to release belt tension.
• Slide the belt off the A/C compressor pulley, then slowly release the tensioner.
• If replacing the belt, remove it fully from all pulleys.

Step 6: Disconnect the Compressor Electrical Connector

• Use a plastic pick tool to release the compressor clutch connector lock tab.
• Pull the connector straight off by the connector body, not the wires.
• Inspect the connector for melted plastic, corrosion, or loose terminals.

Step 7: Remove the A/C Line Block from the Compressor

• Use a 13mm socket, 3/8-inch ratchet, and 3/8-inch drive extension to remove the A/C line block retaining bolt from the compressor.
• Carefully pull the line block straight away from the compressor.
• Use a plastic pick tool to remove the old O-rings from the line fittings.
• Cap or cover the open A/C lines immediately to keep moisture and dirt out.
• Moisture is bad for A/C systems.

Step 8: Remove the A/C Compressor

• Support the compressor with one hand.
• Use a 15mm socket, 3/8-inch ratchet, and 3/8-inch drive extension to remove the compressor mounting bolts.
• Lower the compressor out carefully from underneath.
• Compare the old compressor and new compressor before installation. The pulley, connector, and line ports must match.

Step 9: Balance the Refrigerant Oil

• Drain the oil from the old compressor into a PAG oil measuring cup.
• Drain the shipping oil from the new compressor into a clean PAG oil measuring cup.
• Add the correct amount of PAG refrigerant oil to the new compressor based on the amount removed and the compressor supplier instructions.
• Rotate the new compressor clutch hub by hand 10 turns to spread the oil inside.
• Too much oil reduces cooling.

Step 10: Install the New Compressor

• Position the new compressor onto the mounting bracket.
• Start all compressor mounting bolts by hand to prevent cross-threading.
• Use a 15mm socket and torque wrench 10-100 Nm to tighten the compressor mounting bolts to Torque to 54 Nm (40 ft-lbs).

Step 11: Install New A/C Line O-Rings

• Lightly coat the new O-rings with clean PAG refrigerant oil.
• Install the new O-rings onto the A/C line fittings by hand.
• Push the line block straight into the compressor ports.
• Use a 13mm socket and torque wrench 10-100 Nm to tighten the A/C line block bolt to Torque to 23 Nm (17 ft-lbs).

Step 12: Reconnect the Compressor Electrical Connector

• Push the compressor electrical connector on until it clicks.
• Use a plastic pick tool only if needed to guide the lock tab into place.

Step 13: Reinstall the Serpentine Belt

• Route the belt around the pulleys using your photo as a guide.
• Use the serpentine belt tool to rotate the tensioner.
• Slide the belt over the final pulley, then slowly release the tensioner.
• Check every pulley groove to confirm the belt is seated correctly.
• One rib off can shred the belt.

Step 14: Reinstall Lower Access Panels

• Position the splash shield under the vehicle.
• Use a flat trim clip remover to guide plastic clips back into place if needed.
• Use a 10mm socket to reinstall the lower shield fasteners.
• Tighten the small splash shield fasteners snugly; do not overtighten plastic-mounted fasteners.

Step 15: Lower the Vehicle and Reconnect the Battery

• Use a floor jack rated 3-ton minimum to lift the vehicle slightly off the jack stands.
• Remove the jack stands rated 3-ton minimum.
• Lower the vehicle to the ground slowly.
• Use a 10mm socket to reconnect the negative battery cable.
• Tighten the terminal clamp securely.

Step 16: Vacuum the A/C System

• Connect the A/C manifold gauge set R-134a to the high- and low-side service ports.
• Connect the A/C vacuum pump 2-stage to the manifold gauge set.
• Run the vacuum pump for at least 30-45 minutes.
• Close the manifold valves and confirm the system holds vacuum for at least 10 minutes.
• If vacuum drops, stop and repair the leak before charging.

Step 17: Recharge the A/C System

• Place the refrigerant container on a digital refrigerant scale.
• Charge the system with R-134a refrigerant by weight using the exact amount shown on the under-hood A/C label.
• Start the engine and set A/C to MAX, blower high, and recirculation on.
• Use the A/C manifold gauge set R-134a to monitor pressures while charging.
• Do not charge by “can feel” or pressure alone. Charge by weight.

---

✅ After Repair

• Start the engine and let it idle with the A/C on MAX for several minutes.
• Confirm the compressor clutch engages and cycles normally.
• Check the A/C line connections with your eyes and ears for oil residue, bubbles, or hissing.
• Measure vent temperature from the center vents. It should become noticeably cold after the system stabilizes.
• Check that the serpentine belt runs smoothly with no wobble, squeal, or misalignment.
• If the battery was disconnected, reset clock, radio presets, and one-touch window functions if needed.
• If cooling is weak, stop using the A/C and recheck charge weight, leaks, blend door operation, and cooling fan operation.

---

💰 DIY vs Shop Cost

Shop Cost: $1,100-$1,900 (parts + labor)

DIY Cost: $450-$950 (parts only, plus recovery/recharge service if outsourced)

You Save: $400-$900 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 3-5 hours.

---
