🔧 Explorer - A/C Compressor Replacement

You’ll be removing the old A/C compressor, swapping any needed parts (like the clutch connector bracket or mounting hardware), and installing a new compressor, then recharging the system. This restores cold air when the compressor has failed or is noisy/seized.

Difficulty Level: Advanced | Estimated Time: 4-6 hours (not including A/C evac/recharge)

---

⚠️ Safety & Precautions

• ⚠️ Do NOT vent refrigerant to the air. It is illegal and dangerous. The A/C system must be evacuated with a certified recovery machine at a shop.
• ⚠️ Refrigerant can cause frostbite if it contacts skin or eyes. Always wear safety glasses and gloves.
• ⚠️ You’ll be working under the front of your Explorer; always support it on jack stands, never only on a jack.
• ⚠️ The engine and exhaust parts can be very hot. Let the vehicle cool fully before starting.
• ⚠️ Disconnect the negative battery cable before unplugging A/C electrical connectors to avoid shorts.
• ⚠️ After compressor replacement, the system must be evacuated, leak-tested, and recharged with the correct amount of R-134a using proper A/C equipment.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum, Qty: 2-4)
• Wheel chocks
• Safety glasses
• Mechanic’s gloves
• 1/4" drive ratchet
• 3/8" drive ratchet
• 1/2" drive ratchet
• 1/4" drive socket set (8mm-14mm)
• 3/8" drive socket set (8mm-19mm)
• 1/2" drive socket set (15mm-21mm)
• 10mm deep socket
• 13mm deep socket
• 15mm socket
• 18mm socket
• Assorted extensions (3", 6", 10")
• Universal swivel adapter (3/8" drive)
• Torque wrench (3/8" drive, 5-80 ft-lbs range)
• Torque wrench (1/2" drive, 30-150 ft-lbs range)
• Flat-blade screwdriver (medium)
• Trim clip removal tool
• Serpentine belt tool or long-handled 3/8" breaker bar
• Pick set (straight and 90° picks)
• Plastic scraper
• Clean shop rags
• Drain pan (for any accidental oil drips)
• A/C manifold gauge set (R-134a)
• Vacuum pump for A/C systems
• Refrigerant scale (for accurate recharge)
• OBD2 scan tool (basic)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• A/C compressor (correct for 3.5L EcoBoost AWD) - Qty: 1
• A/C compressor mounting bolt set (if not reusing) - Qty: 1 kit
• A/C manifold O-ring set (high and low side at compressor) - Qty: 1 set
• Serpentine drive belt - Qty: 1
• PAG oil (Ford-specified type for this compressor) - Qty: As specified by compressor manufacturer
• Refrigerant R-134a - Qty: Correct system charge (check under-hood label, usually in grams)
• Brake cleaner or A/C-safe solvent - Qty: 1 can
• Nitrile gloves - Qty: 1 box
• Replacement plastic clips for lower splash shield - Qty: As needed

---

📋 Before You Begin

• Park your Explorer on level ground, set the parking brake, and place wheel chocks behind the rear wheels.
• Have a licensed A/C shop recover the refrigerant from the system before you open any A/C lines.
• Once refrigerant is recovered, disconnect the negative battery cable using a 10mm socket and move it aside so it cannot spring back.
• Gather all tools and parts so you are not crawling out from under the vehicle repeatedly.
• Plan to either:
  • Take the Explorer to a shop after compressor installation for evacuation, leak test, and recharge, or
  • If you have the tools and training, perform proper vacuum and recharge yourself.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise and Support the Front

• Use the floor jack to lift the front of your Explorer at the front jacking point (center under the front subframe).
• Place jack stands under the factory pinch welds or frame points on both sides and lower the vehicle onto the stands.
• Give the vehicle a shake test by hand to be sure it is stable.
• Never work under a car supported only by a jack.

Step 2: Remove the Lower Splash Shield

• Use a trim clip removal tool to remove plastic push clips holding the lower splash shield.
• Use an 8mm or 10mm socket on your 1/4" ratchet to remove any small bolts.
• Lower the splash shield and set it aside, keeping the clips and bolts together.

Step 3: Confirm Refrigerant is Empty

• Visually inspect the A/C service ports; remove caps using your fingers.
• Briefly connect your A/C manifold gauge set to the high and low ports to confirm 0 pressure.
• If pressure is present, stop and have a shop recover the system again.
• System must be fully empty before opening lines.

Step 4: Remove the Serpentine Belt

• Note the belt routing or take a clear photo.
• Insert a serpentine belt tool or long 3/8" breaker bar into the tensioner square drive.
• Rotate the tensioner (usually clockwise) to relieve tension, using your tool for leverage.
• With the tension relieved, slide the belt off the A/C compressor pulley using your free hand.
• Slowly release the tensioner back to its rest position.
• Remove the belt from the pulleys and set aside. If installing a new belt, you can discard the old one.

Step 5: Disconnect Compressor Electrical Connector

• Locate the A/C compressor on the lower front of the engine (passenger side area).
• Find the electrical connector on the compressor body.
• Use a pick tool gently to lift the locking tab while pulling the connector off by hand.
• Move the wiring aside so it does not get pinched.

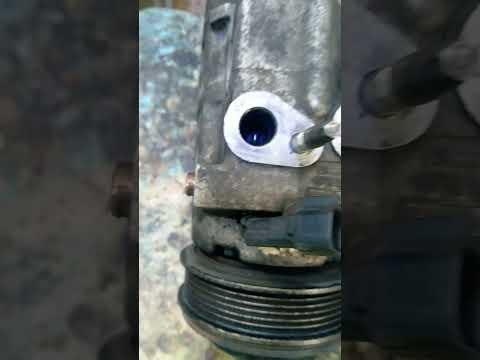

Step 6: Disconnect A/C Lines from Compressor

• Place a drain pan or rags under the compressor to catch any oil drips.
• Use a 10mm or 13mm socket with a 1/4" or 3/8" ratchet (depending on bolt head size) to remove the bolt securing the A/C line manifold to the compressor.
• Gently wiggle and pull the manifold block straight off the compressor ports; do not pry hard with metal tools.
• Immediately cap or cover the open lines with clean plastic and rubber bands, or clean rags, to keep dirt and moisture out.
• Remove the old O-rings from the manifold with a pick tool, being careful not to scratch the metal.

Step 7: Remove the Compressor Mounting Bolts

• Locate the compressor mounting bolts (usually 3 or 4 along the front and rear of the compressor body).
• Use a 13mm or 15mm socket with a 3/8" ratchet and necessary extensions to remove each bolt.
• Support the compressor with one hand while removing the last bolt so it does not drop.
• Carefully lower and remove the compressor from the vehicle.

Step 8: Prepare the New Compressor

• Compare the new compressor to the old one to ensure the mounting ears, pulley, and ports match.
• Check the new compressor’s label or included instructions for PAG oil amount and type. Many come pre-filled; others require you to add or adjust oil.
• If oil needs adjusting:
  • Drain oil from the old compressor into a clean container.
  • Measure how much came out, and match that amount (up to the specification) in the new compressor using the correct PAG oil.
• Rotate the compressor clutch or hub by hand several turns to distribute oil inside.
• Always follow the compressor manufacturer’s oil instructions.

Step 9: Install the New Compressor

• Lift the new compressor into position from below.
• Align the mounting holes and start all compressor bolts by hand to avoid cross-threading.
• Use a 13mm or 15mm socket with a 3/8" ratchet to snug the bolts evenly.
• Then use a 3/8" torque wrench with the same socket to tighten each bolt to 25 Nm (18 ft-lbs) unless otherwise specified by Ford service data.
• Tighten in a crisscross pattern for even clamping.

Step 10: Install New O-Rings and Reattach A/C Lines

• Clean the manifold sealing surfaces with a plastic scraper and a bit of brake cleaner on a rag. Let dry.
• Install new O-rings on the manifold ports from your O-ring set.
• Lightly coat the new O-rings with a small amount of clean PAG oil using your finger.
• Carefully align the manifold with the compressor ports and push it straight on.
• Install the manifold bolt using a 10mm or 13mm socket and a 1/4" ratchet, snugging it down.
• Torque the manifold bolt with a 3/8" torque wrench and the same socket to 10 Nm (89 in-lbs).

Step 11: Reconnect Electrical Connector

• Reconnect the compressor electrical connector by pushing it straight on until you hear or feel a click.
• Gently tug on the connector to be sure it is locked in place.

Step 12: Install the New Serpentine Belt

• Route the new belt according to your photo or under-hood diagram.
• Leave the belt off the easiest-access pulley (often the A/C compressor or idler) until last.
• Use your serpentine belt tool or 3/8" breaker bar to rotate the tensioner and create slack.
• Slip the belt fully onto the last pulley, then slowly release the tensioner.
• Visually inspect every pulley to ensure the belt ribs are seated correctly in the grooves.

Step 13: Reinstall the Lower Splash Shield

• Lift the splash shield into place under the front bumper and subframe area.
• Install any bolts using an 8mm or 10mm socket and 1/4" ratchet; snug them firmly, but do not over-tighten.
• Reinstall plastic clips using your fingers or the trim clip tool if needed.

Step 14: Lower the Vehicle and Reconnect Battery

• Use the floor jack to raise the front slightly, remove the jack stands, then lower the vehicle to the ground.
• Reconnect the negative battery cable using a 10mm socket and 1/4" ratchet, and snug the nut.

Step 15: Evacuate and Recharge the A/C System

• If you do not have an A/C manifold gauge set and vacuum pump, drive the Explorer to a reputable A/C shop and ask for:
  • Vacuum and leak test
  • Correct charge of R-134a by weight
• If you do have the tools and are comfortable:
  • Connect the manifold gauges to high and low ports and the vacuum pump to the center hose.
  • Run the vacuum pump for at least 30–45 minutes to pull deep vacuum.
  • Close manifold valves and verify vacuum holds for 10–15 minutes (no leak).
  • Charge R-134a by weight using a refrigerant scale to the exact amount on the under-hood label (in grams or ounces).
• Correct charge amount is critical for performance.

Step 16: Initial Test of A/C Operation

• Start the engine and let it idle.
• Turn A/C on, set to MAX A/C, fan high, and recirculation on.
• Verify the compressor clutch engages (you may feel the engine load change slightly and hear a soft click).
• Check that the air from the front vents becomes cold after a few minutes.
• Inspect under the vehicle and around the compressor and line connections for any signs of oil or refrigerant leakage.

---

✅ After Repair

• Check A/C performance at idle and while driving. The air should remain consistently cold.
• Listen for any unusual noises from the compressor area (squeals, grinding, or rattles).
• Use your OBD2 scan tool to check for stored trouble codes and clear any related to A/C or battery disconnect.
• Recheck belt alignment and tension visually after a short test drive.
• Over the next few days, inspect the compressor and hose connections for any new oil or dye traces that would indicate a slow leak.

---

💰 DIY vs Shop Cost

Shop Cost: $900-$1,400 (parts + labor + evac/recharge)

DIY Cost: $350-$650 (compressor, belt, O-rings, oil; plus evac/recharge fee if shop does that part)

You Save: $250-$700 by doing most of it yourself!

Shop labor rates typically run $100-$150/hour. This repair takes a shop approximately 3-4 hours including A/C service.

---
