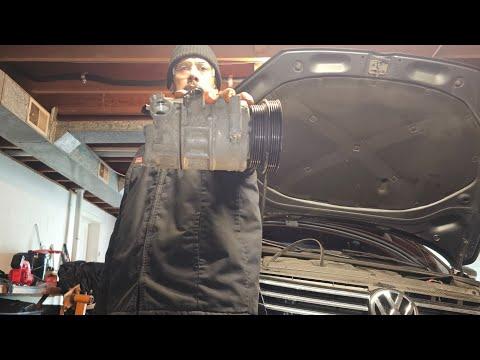

🔧 AC Compressor - Replacement

On your Passat, the AC compressor is part of the refrigerant system, so the refrigerant must be recovered before anything is disconnected. After the new compressor is installed, the system needs the correct oil amount and a proper vacuum/recharge so it cools correctly and doesn’t get damaged.

Difficulty Level: Advanced | Estimated Time: 4-6 hours

---

⚠️ Safety & Precautions

• Have the refrigerant recovered by proper equipment before opening the AC system. Do not vent refrigerant to the air.
• Wear safety glasses and gloves. Refrigerant and PAG oil can injure skin and eyes.
• Keep the engine off and cold before starting work.
• Disconnect the negative battery terminal before unplugging the compressor connector.
• Replace the receiver/drier or desiccant component if the system was open to air for long.
• Do not reuse contaminated oil. If the old compressor failed internally, the system should be flushed before reassembly.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 13mm socket
• 16mm socket
• Torx T25 screwdriver
• Torx T30 screwdriver
• Ratchet
• Extensions
• Serpentine belt tool
• Floor jack (rated 3-ton minimum)
• Jack stands
• Drain pan
• Trim clip tool
• Torque wrench
• AC manifold gauge set (specialty)
• Vacuum pump (specialty)
• Refrigerant recovery/recharge machine (specialty)
• Safety glasses
• Nitrile gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• AC compressor - Qty: 1
• AC compressor O-ring seal set - Qty: 1
• PAG AC compressor oil - Qty: 1 bottle
• Serpentine belt - Qty: 1
• Receiver/drier or desiccant element - Qty: 1
• R-134a refrigerant - Qty: 1 service fill

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Recover the refrigerant with approved AC service equipment before opening the system.
• Disconnect the negative battery terminal.
• Raise the front of the vehicle and support it securely on jack stands.
• If the old compressor failed badly, plan to flush the lines and condenser before installing the new one.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Recover refrigerant and disconnect battery

• Use the refrigerant recovery/recharge machine to remove all refrigerant from the AC system.
• Disconnect the negative battery terminal using a 10mm socket.
• Never open an AC line under pressure.

Step 2: Remove the lower engine cover and right front splash shield

• Use a Torx T25 screwdriver and Torx T30 screwdriver to remove the fasteners.
• Remove the lower covers to access the belt drive and compressor area.

Step 3: Remove the serpentine belt

• Use the serpentine belt tool to relieve tension from the belt tensioner.
• Slip the belt off the pulleys and remove it from the engine bay.
• Take a quick belt routing photo first.

Step 4: Disconnect compressor electrical connector and refrigerant lines

• Use a trim clip tool if needed to move any retaining clips or harness retainers.
• Unplug the compressor electrical connector by hand.
• Use the correct 13mm socket or 16mm socket for the refrigerant line fasteners, depending on the line style on the compressor.
• Remove the refrigerant lines and immediately cap the openings.
• Torque on reassembly: refrigerant line fasteners to 10 Nm (7 ft-lbs).

Step 5: Remove the compressor

• Use a 13mm socket and ratchet to remove the compressor mounting bolts.
• Support the compressor with one hand as the last bolt comes out.
• Lower the compressor out of the vehicle.
• Torque on reassembly: compressor mounting bolts to 25 Nm (18 ft-lbs).

Step 6: Prepare the new compressor

• Drain and measure any oil from the old compressor if it was not seized internally.
• Add the correct amount of fresh PAG AC compressor oil to the new compressor.
• Install new AC compressor O-ring seal set on the line connections.
• Rotate the compressor by hand before installation.

Step 7: Install the new compressor

• Position the new compressor in place and start the mounting bolts by hand.
• Use a 13mm socket and torque wrench to tighten the bolts to 25 Nm (18 ft-lbs).
• Reconnect the refrigerant lines and tighten the fasteners to 10 Nm (7 ft-lbs).
• Reconnect the compressor electrical connector.

Step 8: Reinstall the serpentine belt and covers

• Use the serpentine belt tool to release the tensioner and install the belt on all pulleys.
• Make sure the belt is seated fully in every pulley groove.
• Reinstall the splash shield and lower engine cover with the Torx T25 screwdriver and Torx T30 screwdriver.

Step 9: Evacuate, leak test, and recharge the AC system

• Use the vacuum pump and AC manifold gauge set to pull the system into a deep vacuum.
• Hold vacuum to confirm there are no leaks.
• Recharge the system with the correct amount of R-134a refrigerant using the service machine.
• Use the exact charge amount on the under-hood label.

Step 10: Reconnect battery and verify operation

• Reconnect the negative battery terminal with a 10mm socket.
• Start the engine and turn the AC on.
• Check for cold air, abnormal noise, and leaks at all line connections.

---

✅ After Repair

• Verify the compressor clutch or variable compressor operation.
• Check vent temperature after several minutes of idling.
• Inspect all fittings for refrigerant oil seepage.
• If the old compressor failed internally, monitor system performance for contamination issues.

---

💰 DIY vs Shop Cost

Shop Cost: $1,100-$1,900 (parts + labor)

DIY Cost: $450-$900 (parts only)

You Save: $650-$1,000 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 4-6 hours.

---
