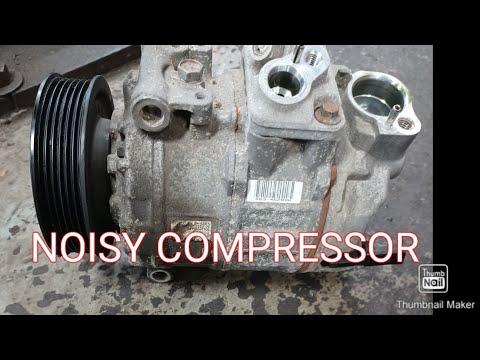

🔧 AC Compressor - Replacement

The AC compressor on your GTI must be removed carefully because the refrigerant system is sealed and pressurized. This job requires refrigerant recovery before any lines are opened, then the compressor, belt, and related hardware are removed and replaced. Since the compressor can shed metal into the system, inspect the old unit and the system before charging it back up.

Difficulty Level: Advanced | Estimated Time: 4-6 hours

---

⚠️ Safety & Precautions

• Have the refrigerant professionally recovered before opening any AC line.
• Do not vent refrigerant to the atmosphere.
• Wear safety glasses and gloves; refrigerant can cause severe frostbite.
• Disconnect the negative battery cable before working near the belt drive.
• Keep dirt out of the open AC lines and compressor ports.
• If the old compressor failed internally, the system may need flushing and a new receiver/drier or desiccant component.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 13mm socket
• 16mm socket
• Torx T25 screwdriver
• Triple-square socket set
• Serpentine belt tool
• R134a recovery/recharge machine (specialty)
• Torque wrench
• Floor jack (rated 3-ton minimum)
• Jack stands
• Drain pan
• Trim clip tool
• Safety glasses
• Nitrile gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• AC compressor - Qty: 1
• AC compressor oil - Qty: 1
• AC line O-ring set - Qty: 1
• Serpentine belt - Qty: 1
• Front bumper liner clips - Qty: 1 set
• Receiver/drier or desiccant element - Qty: 1

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Let the engine and exhaust cool fully.
• Have the refrigerant recovered before you start.
• Disconnect the negative battery cable.
• Raise the front of the car and support it with jack stands.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Recover refrigerant and disconnect power

• Use an R134a recovery/recharge machine (specialty) to recover the refrigerant charge.
• Disconnect the negative battery cable with a 10mm socket.
• Do not open AC lines until fully recovered.

Step 2: Gain access to the compressor

• Raise the front of the GTI with a floor jack (rated 3-ton minimum) and support it with jack stands.
• Remove the lower engine splash shield with a Torx T25 screwdriver.
• If needed for access, remove the front lower liner fasteners with a trim clip tool.

Step 3: Remove the serpentine belt

• Use a serpentine belt tool to rotate the belt tensioner.
• Slip the belt off the compressor pulley and remove it from the engine bay.
• Inspect the belt for cracks or glazing. Replace it if worn.

Step 4: Disconnect the AC lines

• Remove the refrigerant line fasteners with the correct triple-square socket set or 13mm socket, depending on the line bracket style.
• Carefully pull the lines away from the compressor.
• Replace the line O-rings with new ones lightly coated in AC compressor oil.
• Cap the open lines right away.

Step 5: Remove the compressor

• Remove the compressor mounting bolts with a 13mm socket and 16mm socket.
• Support the compressor as the last bolt comes out.
• Lower it out of the engine bay carefully.
• Torque on installation: torque compressor mounting bolts to 25 Nm (18 ft-lbs).

Step 6: Prepare and install the new compressor

• Compare the new compressor to the old one before installing.
• Drain and measure the oil from the old compressor if possible.
• Add the correct amount of AC compressor oil to the new compressor.
• Install the new compressor into position.
• Install the mounting bolts and tighten them with a torque wrench to 25 Nm (18 ft-lbs).

Step 7: Reconnect lines and belt

• Install new lubricated O-rings on the AC lines.
• Reconnect the refrigerant lines and tighten the fasteners with a 13mm socket or the correct triple-square socket.
• Torque line fasteners to 10 Nm (7 ft-lbs).
• Reinstall the serpentine belt using the serpentine belt tool.
• Make sure the belt is seated in every pulley groove.

Step 8: Reassemble the underbody parts

• Reinstall the splash shield with a Torx T25 screwdriver.
• Reinstall any liner clips with the trim clip tool.
• Lower the vehicle from the jack stands.
• Reconnect the negative battery cable with a 10mm socket.

Step 9: Evacuate and recharge the system

• Use an R134a recovery/recharge machine (specialty) to evacuate the system.
• Hold vacuum and check for leaks.
• Recharge the system with the correct refrigerant amount for your GTI.
• Do not guess the charge amount.

---

✅ After Repair

• Start the engine and turn the AC on max.
• Check that the compressor engages and the center vents get cold.
• Inspect the compressor, line fittings, and underbody for leaks.
• Listen for belt noise or pulley noise.
• If cooling is weak, recheck refrigerant charge and system pressures.

---

💰 DIY vs Shop Cost

Shop Cost: $1,100-$1,900 (parts + labor)

DIY Cost: $450-$900 (parts only)

You Save: $650-$1,000 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 4-6 hours.

---
