🔧 Sentra - A/C Compressor Replacement

Replacing the A/C compressor on your Sentra means safely removing refrigerant, swapping the compressor, renewing the sealing O-rings, then vacuuming and recharging the system to the exact under-hood label specification. The big “why”: a failing compressor can seize, leak, or contaminate the system with metal debris, which can quickly destroy the new compressor if not handled carefully.

Difficulty Level: Advanced | Estimated Time: 3-6 hours (plus evacuation/recharge time)

Assumption: stock R-134a system; final charge amount is per under-hood A/C label.

---

⚠️ Safety & Precautions

• ⚠️ Do not vent refrigerant: it must be recovered with proper equipment.
• ⚠️ Wear eye protection: refrigerant/oil can cause severe eye injury.
• ⚠️ Let the engine cool completely before working near the radiator/fan.
• ⚠️ Keep dirt out of A/C lines: cap/plug lines immediately after opening.
• ⚠️ Disconnect the negative battery cable before unplugging the compressor clutch connector.
• ⚠️ If the old compressor failed “internally” (metal/shavings), the system may need flushing and additional parts to prevent repeat failure.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• Metric socket set 8mm-19mm
• 3/8" drive ratchet
• 3/8" drive torque wrench (10-100 Nm range)
• Serpentine belt tool 14mm
• Metric combination wrench set 10mm-19mm
• Line/flare-nut wrench set 10mm-19mm
• Phillips screwdriver #2
• Trim clip remover
• Pick tool
• Drain pan
• Shop rags
• A/C manifold gauge set for R-134a (specialty)
• Vacuum pump (specialty)
• Refrigerant scale (specialty)
• Refrigerant recovery machine (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• A/C compressor (R-134a compatible) - Qty: 1
• A/C compressor manifold O-ring set - Qty: 1
• PAG A/C compressor oil (correct viscosity for your compressor) - Qty: 1
• R-134a refrigerant - Qty: As specified on under-hood A/C label
• Serpentine belt - Qty: 1 (optional if worn/cracked)
• A/C receiver/drier or desiccant element - Qty: 1 (recommended if system was open or compressor failed)
• A/C expansion valve - Qty: 1 (recommended if compressor failed internally)

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Have the refrigerant professionally recovered first, or use a proper recovery machine.
• Disconnect the negative battery cable using a 10mm socket.
• Identify the exact refrigerant charge amount on the under-hood A/C label; you’ll recharge by weight later using a refrigerant scale (specialty).
• Understand the terms: a manifold gauge set measures A/C pressures; a vacuum pump removes air/moisture from the system before recharging.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Recover the refrigerant safely

• Connect the refrigerant recovery machine (specialty) and A/C manifold gauge set for R-134a (specialty) to the high/low service ports.
• Recover the refrigerant fully per the machine instructions, then verify both gauges are at/near zero pressure.

Step 2: Raise the front of the car and remove the lower splash shield

• Lift the front using a floor jack (rated 2-ton minimum) and support it on jack stands (rated 2-ton minimum).
• Remove undercovers/splash shield fasteners using a trim clip remover, Phillips screwdriver #2, and 10mm socket as needed.

Step 3: Remove serpentine belt from the A/C compressor pulley

• Use a serpentine belt tool 14mm to rotate the belt tensioner and slip the belt off the A/C compressor pulley.
• Tip: take a belt-routing photo first.

Step 4: Unplug the compressor electrical connector

• Locate the compressor clutch/solenoid connector at the compressor and disconnect it by hand; use a pick tool gently if the tab is stuck.

Step 5: Remove the A/C line manifold from the compressor

• Place a drain pan under the compressor and have shop rags ready for oil drips.
• Remove the manifold retaining bolt(s) using a 10mm socket (common) or the appropriate socket from your metric socket set 8mm-19mm.
• Pull the line manifold straight off the compressor.
• Immediately cap/cover the open lines with shop rags to keep moisture and dirt out.

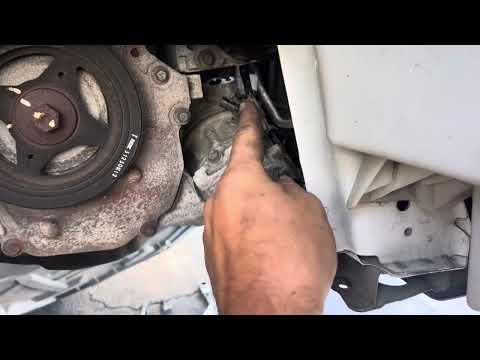

Step 6: Remove the A/C compressor mounting bolts and compressor

• Support the compressor with one hand and remove the mounting bolts using a metric socket set 8mm-19mm and 3/8" drive ratchet.
• Lower and remove the compressor from underneath.

Step 7: Set the oil amount in the new compressor

• Drain the oil from the old compressor into a drain pan and measure what came out (this helps you match oil quantity).
• Add the correct amount/type of oil to the new compressor using PAG A/C compressor oil.
• Rotate the compressor hub by hand a few turns to distribute oil evenly.
• Tip: too much oil hurts cooling performance.

Step 8: Install new O-rings on the line manifold

• Remove old O-rings with a pick tool (do not scratch the metal).
• Install new O-rings from the A/C compressor manifold O-ring set.
• Lightly coat O-rings with clean PAG A/C compressor oil so they don’t pinch during installation.

Step 9: Install the new compressor

• Position the compressor and hand-start all mounting bolts.
• Tighten mounting bolts evenly using a 3/8" drive torque wrench (10-100 Nm range) to the Nissan service-manual specification for your compressor bracket/bolt size.

Step 10: Reinstall the A/C line manifold

• Align the manifold squarely and push it straight into the compressor.
• Install and tighten the retaining bolt(s) using a 10mm socket and finish with a 3/8" drive torque wrench (10-100 Nm range) to Nissan service-manual specification.

Step 11: Reconnect electrical connector and reinstall the belt

• Reconnect the compressor connector until it clicks.
• Route the belt correctly and use the serpentine belt tool 14mm to rotate the tensioner while you slip the belt back on.

Step 12: Reinstall splash shield and lower the car

• Reinstall undercovers using the trim clip remover, Phillips screwdriver #2, and 10mm socket.
• Lower the vehicle safely from the jack stands (rated 2-ton minimum) using the floor jack (rated 2-ton minimum).

Step 13: Evacuate (vacuum) the system and recharge by weight

• Reconnect the A/C manifold gauge set for R-134a (specialty).
• Use the vacuum pump (specialty) to pull a deep vacuum; hold vacuum to confirm no leaks (a loss of vacuum suggests a leak).
• Recharge with R-134a refrigerant using a refrigerant scale (specialty) to the exact under-hood label amount (recharge by weight, not by pressure).

Step 14: Reconnect battery

• Reconnect the negative battery cable using a 10mm socket.

---

✅ After Repair

• Start the engine and set A/C to MAX; confirm the compressor engages and the center vents blow cold.
• Check for leaks at the compressor/manifold area (look for oily residue).
• Verify both radiator fans operate when A/C is on (important for proper cooling at idle).
• If cooling is weak: confirm the charge is correct by weight and that the condenser fans are working.

---

💰 DIY vs Shop Cost

Shop Cost: $900-$1,700 (parts + labor + recover/evac/recharge)

DIY Cost: $250-$750 (parts only, assuming you have access to recovery/evac/recharge equipment)

You Save: $400-$1,200 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2.5-4.0 hours.

---
