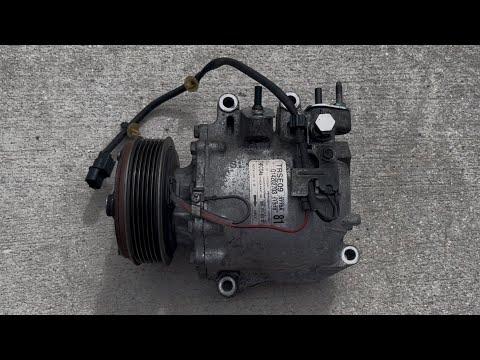

🔧 Civic - A/C Compressor Replacement

Replacing your A/C compressor means removing the old unit, installing a new compressor with new sealing O-rings, and then properly evacuating and recharging the refrigerant system. This job is part mechanical and part A/C service—if the refrigerant isn’t recovered/recharged correctly, the A/C won’t cool and parts can be damaged.

Difficulty Level: Advanced | Estimated Time: 3-6 hours

Assumption: Your A/C uses R-134a and factory routing; recharge amount is on the under-hood label.

---

⚠️ Safety & Precautions

• ⚠️ Do not vent refrigerant—have the system recovered with proper equipment.
• ⚠️ Wear safety glasses and gloves; liquid refrigerant can cause frostbite.
• ⚠️ Keep hands clear of the belt path; the tensioner is spring-loaded.
• ⚠️ Support the car securely on jack stands; never rely on a jack.
• 🔋 Disconnect the negative battery cable before unplugging the compressor.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• Safety glasses
• Nitrile gloves
• 10mm socket
• 12mm socket
• 14mm socket
• 3/8" ratchet
• 3/8" torque wrench (10–80 Nm range)
• 3/8" breaker bar
• Serpentine belt tool or 14mm long-handled wrench
• Phillips screwdriver
• Trim clip remover
• Drain pan
• Shop rags
• A/C manifold gauge set (specialty)
• Vacuum pump (specialty)
• Refrigerant recovery machine (specialty)
• Refrigerant scale (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• A/C compressor - Qty: 1
• A/C compressor manifold O-ring set - Qty: 1
• Honda-approved PAG A/C oil (R-134a compatible) - Qty: 1
• R-134a refrigerant - Qty: As required (by under-hood label)
• Serpentine belt - Qty: 1 (recommended if worn or oil-soaked)

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear wheels.
• Have the A/C system recovered before opening any lines.
• Open the hood and disconnect the battery using a 10mm socket (negative terminal first).
• Gather new O-rings and keep them clean; dirt in the A/C system can kill the new compressor.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Recover the refrigerant

• Connect the A/C manifold gauge set (specialty) to the high/low service ports.
• Use a refrigerant recovery machine (specialty) to pull all refrigerant out of the system. Never crack a line “to check.”

Step 2: Raise the front of the car and remove the splash shield

• Lift the front with a floor jack (rated 2-ton minimum) and set it on jack stands (rated 2-ton minimum).
• Remove the lower engine cover/splash shield using a 10mm socket, Phillips screwdriver, and trim clip remover.

Step 3: Release the serpentine belt tension

• Use a serpentine belt tool or 14mm long-handled wrench on the belt tensioner and rotate to relieve tension (the tensioner is spring-loaded).
• Slip the belt off the A/C compressor pulley and let the belt rest out of the way.

Step 4: Unplug the compressor clutch/control connector

• Find the electrical connector on the compressor and disconnect it by hand (use a Phillips screwdriver gently if the lock tab is stubborn).

Step 5: Disconnect the A/C lines from the compressor

• Place a drain pan under the compressor and have shop rags ready for residual oil.
• Remove the suction/discharge line retaining bolt(s) using a 10mm socket.
• Carefully wiggle the manifold block off the compressor (do not pry on aluminum lines).
• Remove old O-rings and install new O-rings, lightly lubricated with Honda-approved PAG A/C oil.
• Torque to 12 Nm (9 ft-lbs) for the line/manifold retaining bolt(s).

Step 6: Remove the compressor

• Support the compressor with one hand and remove the mounting bolts using a 12mm socket and 3/8" ratchet.
• Lower the compressor out from below.
• Torque to 22 Nm (16 ft-lbs) for compressor mounting bolts during installation.

Step 7: Set the correct oil amount in the new compressor

• Drain the old compressor oil into a drain pan and note the amount.
• Add the same amount of fresh Honda-approved PAG A/C oil to the new compressor (follow the compressor instructions if it comes pre-filled).
• Rotate the compressor hub by hand a few turns to distribute oil (if the hub is accessible). Slow turns only—no tools.

Step 8: Install the new compressor

• Position the compressor and start bolts by hand to avoid cross-threading.
• Tighten with a 12mm socket and finish with a 3/8" torque wrench (10–80 Nm range).
• Torque to 22 Nm (16 ft-lbs).

Step 9: Reconnect A/C lines and electrical connector

• Reinstall the line manifold with new O-rings using a 10mm socket.
• Torque to 12 Nm (9 ft-lbs).
• Reconnect the compressor electrical connector until it clicks.

Step 10: Reinstall the belt and splash shield

• Route the belt correctly and rotate the tensioner using the serpentine belt tool or 14mm long-handled wrench.
• Confirm the belt is fully seated in every pulley groove.
• Reinstall the splash shield using a 10mm socket, Phillips screwdriver, and trim clip remover.

Step 11: Evacuate the system (vacuum) and leak check

• Reconnect the A/C manifold gauge set (specialty).
• Use the vacuum pump (specialty) to pull vacuum for 30–45 minutes.
• Close the valves and watch the gauges for 10 minutes; if vacuum drops, you have a leak that must be fixed before charging.

Step 12: Recharge with R-134a by weight

• Charge using a refrigerant scale (specialty) to the exact amount listed on the under-hood A/C label.
• Reconnect the battery using a 10mm socket.
• Start the engine, set A/C to MAX, and continue the charge procedure per your manifold/recovery equipment instructions.

---

✅ After Repair

• Start the engine and confirm the A/C blows cold and the compressor cycles normally.
• Check for unusual noises (grinding/squeal) and shut down immediately if heard.
• Inspect the compressor area for oily residue that could indicate a refrigerant/oil leak.
• If cooling is weak, recheck charge weight and ensure the condenser fans run with A/C on.

---

💰 DIY vs Shop Cost

Shop Cost: $900-$1,800 (parts + labor + evac/recharge)

DIY Cost: $250-$700 (parts only, assuming you already have A/C service equipment)

You Save: $650-$1,100 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-4 hours.

---
