🔧 Escape - A/C Compressor Replacement

Replacing the A/C compressor on your Escape involves removing the drive belt, disconnecting the refrigerant lines, swapping the compressor, and then evacuating and recharging the A/C system. The A/C system is a sealed, high-pressure refrigerant system, so the refrigerant must be recovered properly before any lines are opened.

Difficulty Level: Advanced | Estimated Time: 3-6 hours

---

⚠️ Safety & Precautions

• ⚠️ Do not vent refrigerant to the air—have the system recovered with proper A/C equipment before disconnecting any lines.
• ⚠️ Wear safety glasses and gloves—refrigerant can cause frostbite and eye injury.
• ⚠️ Work on a cool engine; keep hands clear of the belt path.
• ⚠️ Support the vehicle with jack stands on a level surface—never rely on a jack.
• Disconnect the negative battery cable before unplugging the compressor connector.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Wheel chocks
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Breaker bar (1/2")
• Ratchet (3/8")
• Socket set (8mm, 10mm, 13mm, 15mm)
• Extension set (3", 6")
• Torque wrench (inch-pound, 20–200 in-lb)
• Torque wrench (foot-pound, 10–150 ft-lb)
• Trim clip remover
• Drain pan
• Shop rags
• A/C manifold gauge set (specialty)
• Vacuum pump (specialty)
• Refrigerant scale (specialty)
• R-134a recovery machine (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• A/C compressor - Qty: 1
• A/C compressor manifold O-ring seals - Qty: 1 set
• PAG A/C compressor oil (PAG spec as listed on underhood A/C label) - Qty: 1
• R-134a refrigerant (charge amount per underhood A/C label) - Qty: 1
• A/C accumulator/receiver-drier (if required due to compressor failure/contamination) - Qty: 1
• A/C orifice tube (if equipped and accessible; replace if contaminated) - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear wheels.
• Have a shop recover the refrigerant, or use an R-134a recovery machine (specialty) before you open the system.
• Disconnect the negative battery cable using a 10mm socket.
• Find the underhood A/C label and note the factory R-134a charge weight and PAG oil spec—you’ll need these for correct recharging.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Recover refrigerant (must be done before opening lines)

• Connect an A/C manifold gauge set (specialty) to the high and low service ports.
• Use an R-134a recovery machine (specialty) to recover the refrigerant completely per the machine prompts.

Step 2: Raise the vehicle and remove access panels

• Use a floor jack (rated 3-ton minimum) to lift the front-right side and support with jack stands (rated 3-ton minimum).
• Remove any lower splash shield/undertray fasteners using an 8mm socket and a trim clip remover.

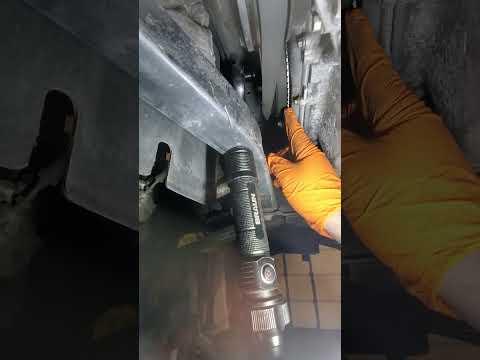

Step 3: Remove the serpentine belt from the A/C compressor pulley

• Relieve belt tension using a 15mm socket and a breaker bar (1/2") on the belt tensioner.
• Slip the belt off the A/C compressor pulley and slowly release the tensioner.
• Tip: Take a quick belt-routing photo first.

Step 4: Disconnect the compressor electrical connector

• Unplug the connector at the compressor using your hand and, if needed, gently assist with a trim clip remover.

Step 5: Disconnect the A/C refrigerant lines from the compressor

• Place a drain pan underneath and wrap the area with shop rags.
• Remove the line/manifold retaining bolt(s) using a 10mm socket.
• Carefully wiggle the manifold free (do not pry hard on the aluminum lines).
• Remove and discard the old O-rings. Install new O-rings (lightly coat with clean PAG A/C compressor oil).
• Torque to 10 Nm (89 in-lb) for the refrigerant line/manifold retaining bolt(s).

Step 6: Remove the A/C compressor

• Remove the compressor mounting bolts using a 13mm socket with a ratchet (3/8") and extensions as needed.
• Support the compressor with one hand while removing the last bolt, then lower it out carefully.
• Torque to 25 Nm (18 ft-lb) for the A/C compressor mounting bolts during installation.

Step 7: Set up the new compressor (oil balancing)

• Drain the old compressor oil into a drain pan (rotate the hub by hand and let it drain).
• Drain the shipping oil from the new compressor into the drain pan.
• Add fresh PAG A/C compressor oil into the new compressor to match the amount you measured from the old compressor (unless a Ford service procedure calls for a different amount due to replaced components).
• Tip: Measure in a marked container for accuracy.

Step 8: Install the new compressor

• Position the compressor and start all mounting bolts by hand.
• Tighten mounting bolts evenly using a 13mm socket and finish with a torque wrench (foot-pound, 10–150 ft-lb).
• Torque to 25 Nm (18 ft-lb) for the A/C compressor mounting bolts.

Step 9: Reconnect A/C lines and electrical connector

• Install the refrigerant manifold with new, oiled O-rings using a 10mm socket.
• Torque to 10 Nm (89 in-lb) for the line/manifold retaining bolt(s).
• Reconnect the compressor electrical connector by hand until it clicks.

Step 10: Reinstall the belt and shields

• Route the belt correctly, relieve tension with a 15mm socket and breaker bar (1/2"), and slip the belt back onto the compressor pulley.
• Reinstall splash shield/undertray fasteners using an 8mm socket and trim clip remover.
• Lower the vehicle using a floor jack (rated 3-ton minimum).

Step 11: Evacuate and recharge the A/C system

• Reconnect the battery negative terminal using a 10mm socket.
• Connect the A/C manifold gauge set (specialty) and pull vacuum using a vacuum pump (specialty) for at least 30–45 minutes.
• Verify it holds vacuum (no rise) for 10 minutes to check for leaks.
• Recharge with R-134a using a refrigerant scale (specialty) to the exact weight listed on the underhood A/C label.

---

✅ After Repair

• Start the engine and set A/C to MAX with the blower high. Confirm cold air and that the compressor engages smoothly.
• Check for leaks at the compressor line connection (look for oily residue) and recheck gauge pressures with the A/C manifold gauge set (specialty).
• Test drive 10–15 minutes and confirm the A/C stays cold at idle and while driving.

---

💰 DIY vs Shop Cost

Shop Cost: $1,100-$1,900 (parts + labor)

DIY Cost: $350-$850 (parts only, assuming you already have A/C equipment)

You Save: $250-$1,000 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2.5-4.0 hours.

---
