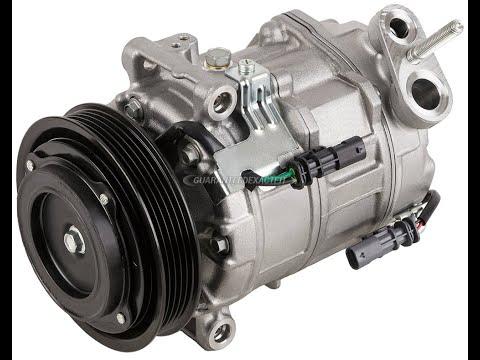

🔧 Equinox - A/C Compressor Replacement

To replace the A/C compressor on your Equinox, you must remove the drive belt, disconnect the refrigerant lines, unbolt the compressor, and install a new, properly oiled unit. The system then needs to be vacuumed and recharged to the correct pressure and weight.

Difficulty Level: Advanced | Estimated Time: 4-6 hours

---

⚠️ Safety & Precautions

• ⚠️ Do NOT vent refrigerant (A/C gas) to the atmosphere. It is illegal and dangerous. The system must be evacuated with a recovery machine by a licensed A/C shop.
• ⚠️ Refrigerant can cause severe frostbite and eye injury. Always wear safety glasses and gloves.
• ⚠️ Work on a cool engine. Hot engine parts and exhaust can burn you.
• ⚠️ Disconnect the negative battery cable before working near the starter, alternator, or compressor wiring.
• ⚠️ Support the vehicle with jack stands if you raise it. Never rely only on a jack.
• ⚠️ A/C work requires accurate charging by weight. Plan to have a shop recover the refrigerant before you start and evacuate/recharge after you finish, if you don’t have professional A/C equipment.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 🛠️ Metric socket set (8mm–19mm)
• 🛠️ Metric combination wrench set (8mm–19mm)
• 🛠️ 3/8" drive ratchet
• 🛠️ 3/8" drive torque wrench (10–100 Nm range)
• 🛠️ Breaker bar 3/8" or 1/2" drive
• 🛠️ Serpentine belt tool or long-handled 3/8" drive ratchet
• 🛠️ Flathead screwdriver (medium)
• 🛠️ Trim clip removal tool
• 🛠️ Floor jack (rated 3-ton minimum)
• 🛠️ Jack stands (rated 3-ton minimum)
• 🛠️ Wheel chocks
• 🛠️ Manifold gauge set for R-134a (specialty)
• 🛠️ Vacuum pump for A/C systems (specialty)
• 🛠️ Digital scale for refrigerant charging (specialty)
• 🛠️ Oil measuring syringe or small measuring cup (clean)
• 🛠️ Pick tool or small pick set
• 🛠️ Shop rags
• 🛠️ Safety glasses
• 🛠️ Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 🔩 A/C compressor (pre-filled with correct PAG oil if available) - Qty: 1
• 🔩 A/C compressor mounting bolts (if single-use per service info) - Qty: 4
• 🔩 A/C compressor manifold gasket or O-rings (suction and discharge) - Qty: 1 set
• 🔩 A/C refrigerant R-134a - Qty: Correct charge by weight for 2015 Equinox 2.4L (check under-hood label)
• 🔩 PAG A/C oil (GM-spec viscosity for 2.4L compressor) - Qty: As specified on compressor label or service manual
• 🔩 Serpentine drive belt - Qty: 1 (recommended while you are there)
• 🔩 New A/C line O-rings (green HNBR) for any opened connections - Qty: 1 set
• 🔩 Brake cleaner or A/C-safe solvent spray - Qty: 1 can
• 🔩 Dielectric grease (for electrical connector) - Qty: small tube

---

📋 Before You Begin

• Park your Equinox on level ground, shift to Park, and set the parking brake.
• Place wheel chocks behind the rear wheels.
• Have an A/C shop or mobile A/C technician recover all refrigerant from the system before loosening any A/C lines.
• Open the hood and let the engine bay cool completely.
• Disconnect the negative battery terminal using a 10mm socket and move the cable aside so it cannot spring back.
• If you plan to charge the system yourself, read the instructions for your manifold gauge set and vacuum pump so you understand basic operation.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Safely raise and prepare the vehicle

• Use the floor jack to lift the front of your Equinox at the front jacking point (behind the front subframe center).
• Place jack stands under the left and right front pinch welds or frame points and slowly lower the vehicle onto them.
• Leave the floor jack in place as a backup if possible.
• Shake the vehicle slightly to confirm it is stable.

Step 2: Remove lower splash shield for access

• From underneath, locate the plastic splash shield under the engine and A/C compressor area.
• Use the trim clip removal tool to pop out the plastic clips along the front and sides.
• Use the appropriate metric socket (often 10mm) to remove any screws or bolts holding the shield.
• Lower the splash shield and set it aside.

Step 3: Relieve belt tension and remove serpentine belt

• Locate the serpentine belt and the belt tensioner on the front of the engine.
• Use the serpentine belt tool or long-handled 3/8" ratchet in the tensioner square hole to rotate the tensioner and relieve belt tension.
• While holding tension off, slide the belt off the A/C compressor pulley first, then slowly release the tensioner.
• Carefully remove the belt from the rest of the pulleys, noting the routing. Take a picture as a reference.
• Now is a good time to install a new belt.

Step 4: Disconnect A/C compressor electrical connector

• Locate the A/C compressor on the lower front of the engine (passenger side area).
• Find the electrical connector going to the compressor clutch or control valve.
• Use your fingers or a pick tool gently on the locking tab (do not pry hard).
• Pull the connector straight off and inspect for corrosion. Clean with brake cleaner if needed and let it dry.

Step 5: Disconnect A/C refrigerant lines from compressor

• Confirm the A/C system has been professionally evacuated (zero pressure) before this step.
• Locate the suction and discharge manifold attached to the rear/top of the compressor.
• Use the correct metric socket (usually 13mm or 15mm) with a ratchet to remove the bolt that holds the line manifold to the compressor.
• Gently wiggle the line manifold free; use a flathead screwdriver very lightly only if needed, being careful not to damage the sealing surface.
• Remove the old O-rings using a pick tool, taking care not to scratch the metal.
• Cover the open lines and compressor ports with clean shop rags to keep dirt out.

Step 6: Unbolt and remove the old compressor

• Identify the compressor mounting bolts (usually three or four) attaching it to the engine block or bracket.
• Use a metric socket (commonly 13mm or 15mm) and ratchet to loosen all the mounting bolts.
• Support the compressor with one hand while removing the last bolt so it does not drop.
• Lower the compressor out through the bottom of the engine bay.
• Note the exact orientation of the old compressor.

Step 7: Prepare the new compressor (oil balancing)

• A/C compressors need the correct amount of PAG oil. This is a special lubricant for A/C systems.
• Check the new compressor label or instructions for the specified oil amount.
• If the new compressor is pre-filled: drain the oil from the old compressor into a clean cup and measure it. Then confirm the new one has the same total amount, adjusting with a measuring syringe if required.
• If oil is not pre-filled: pour the required amount of the correct-spec PAG oil into the new compressor through the ports, rotating the compressor by hand a few turns to distribute the oil.
• Do not mix different types or viscosities of PAG oil.

Step 8: Install new O-rings on A/C lines

• Select new O-rings that match the originals in size and thickness from your O-ring set.
• Lightly coat each new O-ring with clean PAG oil using your finger. This helps sealing and prevents tearing.
• Install the lubricated O-rings onto the line fittings, making sure they sit in their grooves and are not twisted.

Step 9: Install the new compressor

• Position the new compressor in the same orientation as the old one and lift it into place from underneath.
• Start all compressor mounting bolts by hand to avoid cross-threading.
• Use a metric socket and ratchet to snug the bolts evenly in a crisscross pattern.
• Use the torque wrench with the correct socket to tighten the mounting bolts to manufacturer specification (refer to GM service data).
• Do not over-tighten; the housing can crack.

Step 10: Reconnect A/C lines to compressor

• Align the A/C line manifold with the compressor ports carefully so the new O-rings do not pinch.
• Install the manifold retaining bolt by hand first.
• Use the correct metric socket and ratchet to tighten the bolt until snug.
• Finish tightening with a torque wrench to manufacturer specification (refer to GM service data).

Step 11: Reconnect compressor electrical connector

• Apply a very small amount of dielectric grease to the terminals if recommended.
• Push the connector onto the compressor until it clicks and locks in place.
• Lightly tug the connector to confirm it is fully seated.

Step 12: Reinstall serpentine belt

• Use your belt routing picture or the under-hood diagram to route the belt around all pulleys, leaving it off the A/C compressor pulley last.
• Rotate the tensioner again using the serpentine belt tool or long-handled ratchet.
• Slip the belt over the A/C compressor pulley, then slowly release the tensioner.
• Visually check that the belt sits properly in the grooves on every pulley.

Step 13: Reinstall splash shield and lower vehicle

• Lift the splash shield into place under the engine.
• Install any bolts with the correct metric socket and snug them down.
• Reinstall the plastic clips using the trim clip tool or your fingers.
• Use the floor jack to raise the vehicle slightly, remove the jack stands, and lower the vehicle back to the ground.

Step 14: Evacuate the A/C system with vacuum pump

• Reconnect the negative battery terminal using a 10mm socket.
• Connect your manifold gauge set to the low and high service ports under the hood (blue to low side, red to high side). Attach the center hose to the vacuum pump.
• Open both low and high valves on the manifold gauges and turn on the vacuum pump.
• Allow the pump to run for at least 30–45 minutes to pull deep vacuum and remove moisture.
• Close both valves, turn off the pump, and let the system sit for 10–15 minutes to check for vacuum loss (which would indicate a leak).
• If vacuum will not hold, stop and leak-check connections.

Step 15: Recharge the system with the correct amount of refrigerant

• Check the under-hood A/C label for the exact R-134a charge amount for your 2.4L Equinox (listed in grams or ounces).
• Place the refrigerant cylinder on a digital scale and zero the scale.
• Connect the refrigerant cylinder to the center hose of the manifold gauge set.
• Start the engine, set the A/C to MAX cold, fan on high, and open windows.
• Slowly open the low-side valve only and let refrigerant flow into the system while watching the scale. Close the valve when the correct weight has been added.
• Do not open the high-side valve while charging with the engine running.
• Monitor pressures and vent temperature. Compare against typical R-134a pressure charts for your ambient temperature.

Step 16: Final checks for leaks and operation

• With the A/C running, inspect the compressor, line manifold, and service ports for any signs of oil or refrigerant leaks.
• Listen for abnormal noises such as grinding or loud knocking from the new compressor.
• Use the manifold gauges to confirm stable pressures and that the compressor cycles or modulates as expected.
• Once satisfied, close the valves, remove the gauge set, and install the service port caps snugly by hand.

---

✅ After Repair

• Check cabin vent temperature at the center vents with the A/C on MAX after a few minutes; it should be noticeably cold.
• Verify the A/C clutch engages or the compressor runs smoothly without unusual noises or vibrations.
• Look again under the vehicle and around the compressor area after a short drive to confirm there are no oil or refrigerant leaks.
• If the air is not cold or pressures are off, have an A/C specialist check for correct charge amount and system health.

---

💰 DIY vs Shop Cost

Shop Cost: $800-$1,300 (parts + labor)

DIY Cost: $350-$650 (parts, oil, refrigerant)

You Save: $450-$650 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 3-4 hours.

---
