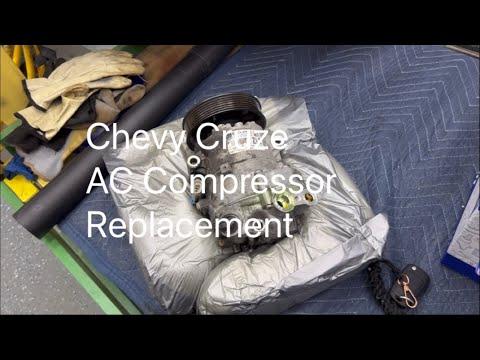

🔧 Cruze - A/C Compressor Replacement

Replacing the A/C compressor on your Cruze involves safely recovering the refrigerant, removing the drive belt, swapping the compressor, then evacuating and recharging the A/C system. This job is very doable at home, but only if you have the proper A/C service equipment—refrigerant must not be vented.

Difficulty Level: Advanced | Estimated Time: 3-6 hours

Assumption: Your Cruze uses R-134a (verify underhood label).

---

⚠️ Safety & Precautions

• ⚠️ Refrigerant is high-pressure and can freeze skin/eyes on contact—wear gloves and safety glasses.
• ⚠️ Do not vent refrigerant to the air. Use proper recovery equipment (many parts stores/shops can recover it for you).
• ⚠️ Keep hands/clothes clear of the belt path; the belt can pinch severely.
• ⚠️ Disconnect the negative battery cable before unplugging the compressor connector.
• ⚠️ If the old compressor failed internally (metal debris), the system usually needs additional parts cleaning/replacement to prevent repeat failure.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• Metric socket set (8mm-15mm)
• Ratchet (3/8")
• Torque wrench (3/8", 10-80 Nm range)
• Serpentine belt tool (specialty)
• Flat trim clip tool
• Phillips screwdriver
• Pry bar (12")
• Line/flare-nut wrench set (metric)
• A/C manifold gauge set (specialty)
• Vacuum pump (A/C) (specialty)
• Refrigerant recovery machine (specialty)
• Refrigerant scale (specialty)
• PAG oil measuring cup
• Shop rags
• Drain pan

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• A/C compressor - Qty: 1
• A/C compressor clutch/coil (if not included with compressor) - Qty: 1
• A/C line O-ring set - Qty: 1
• PAG A/C oil (correct type per underhood label) - Qty: 1
• R-134a refrigerant (amount per underhood label) - Qty: 1
• Receiver/drier or condenser (if receiver/drier is integrated) - Qty: 1
• Expansion valve (TXV) or orifice component (if contaminated) - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear wheels.
• Have the refrigerant professionally recovered, or use a refrigerant recovery machine (this pulls refrigerant into a storage tank—do not vent).
• Disconnect the battery: use a 10mm socket to remove the negative terminal and isolate it so it can’t spring back.
• If you suspect compressor failure with debris (grinding noise, black oil, seized), plan on replacing the receiver/drier and possibly the expansion valve to protect the new compressor.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Recover the refrigerant

• Connect the A/C manifold gauge set (specialty) to the low and high service ports.
• Use the refrigerant recovery machine (specialty) to recover all refrigerant from the system.
• Confirm both gauges read 0 psi before opening any A/C lines.

Step 2: Raise the front of the car and remove the splash shield

• Lift the front with a floor jack (rated 2-ton minimum) and support with jack stands (rated 2-ton minimum).
• Remove the lower engine splash shield using a flat trim clip tool and metric sockets as needed.

Step 3: Release the drive belt

• Use a serpentine belt tool (specialty) to rotate the belt tensioner and slip the belt off the A/C compressor pulley.
• Tip: Take a quick belt-routing photo first.

Step 4: Unplug the compressor electrical connector

• Locate the compressor connector and release the lock tab.
• Unplug it by hand; use a small pry bar (12") gently only if stuck.

Step 5: Remove the A/C refrigerant lines from the compressor

• Place a drain pan under the compressor area and keep shop rags handy.
• Use the correct metric socket set (8mm-15mm) or line/flare-nut wrench set (metric) (as equipped) to remove the line retaining fasteners.
• Pull the lines straight off the compressor (don’t bend the pipes).
• Remove and discard the old O-rings from the line ends.

Step 6: Unbolt and remove the compressor

• Support the compressor with one hand.
• Remove the compressor mounting bolts using a ratchet (3/8") and metric sockets.
• Lower the compressor out carefully through the bottom.
• Torque to manufacturer specification using a torque wrench.

Step 7: Match and set the compressor oil amount

• Drain the old compressor oil into a PAG oil measuring cup and note the amount and appearance.
• If the oil is glittery/metallic or very dark, treat it as contamination (receiver/drier and expansion valve strongly recommended).
• Add the correct PAG A/C oil (correct type per underhood label) to the new compressor so the total system oil stays correct.
• Tip: Lightly oil new O-rings before assembly.

Step 8: Install the new compressor

• Position the new compressor and start all mounting bolts by hand.
• Tighten evenly using a ratchet (3/8"), then final-tighten with a torque wrench (3/8", 10-80 Nm range).
• Torque to manufacturer specification using a torque wrench.

Step 9: Reconnect the A/C lines with new O-rings

• Install new O-rings from the A/C line O-ring set onto the line ends.
• Lubricate O-rings with a small amount of PAG A/C oil.
• Push the lines straight into place and install the retaining fasteners using the appropriate metric socket or line/flare-nut wrench.
• Torque to manufacturer specification using a torque wrench.

Step 10: Reinstall the belt and splash shield

• Route the belt correctly and use the serpentine belt tool (specialty) to swing the tensioner and slip the belt back onto the compressor pulley.
• Reinstall the splash shield using a Phillips screwdriver and metric sockets, and press clips in with a flat trim clip tool.

Step 11: Evacuate (vacuum) the system

• Reconnect the A/C manifold gauge set (specialty).
• Connect the vacuum pump (A/C) (specialty) and pull vacuum for at least 30–45 minutes.
• Close the valves and verify it holds vacuum (no loss) for 10–15 minutes to check for leaks.

Step 12: Recharge with the correct amount of refrigerant by weight

• Use a refrigerant scale (specialty) to measure the exact charge amount listed on your Cruze’s underhood A/C label.
• Charge the system following standard manifold gauge procedures (by weight, not by pressure alone).
• Reconnect the negative battery cable using a 10mm socket.

---

✅ After Repair

• Start the engine and turn A/C on MAX; confirm the compressor engages and the air gets cold.
• Check for leaks at the compressor line connections (look for oily residue or listen for hiss).
• Verify the belt runs smoothly with no wobble or squeal.
• If cooling is weak or pressures look abnormal, stop and recheck charge amount and for leaks.

---

💰 DIY vs Shop Cost

Shop Cost: $900-$1,800 (parts + labor, including recover/evac/recharge)

DIY Cost: $250-$900 (parts only, assuming you already have A/C service equipment)

You Save: $650-$900 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2.5-4.0 hours.

---
