🔧 A/C Compressor - Replacement

Your A/C compressor pumps refrigerant through the system. If it has seized, leaks, or makes noise, it must be replaced and the system must be evacuated and recharged correctly afterward.

Difficulty Level: Advanced | Estimated Time: 4-6 hours

---

⚠️ Safety & Precautions

• Have the refrigerant recovered by approved equipment before opening the system. Refrigerant can cause severe frostbite and eye injury.
• Do not run the A/C system with a failed compressor. Metal debris can contaminate the entire system.
• Disconnect the negative battery cable before working near the accessory drive and A/C electrical connectors.
• Keep dirt and moisture out of the open A/C lines. Cap all open fittings immediately.
• Wear safety glasses and gloves. Refrigerant oil can irritate skin and eyes.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 8mm socket
• 10mm socket
• 13mm socket
• 15mm socket
• Ratchet
• Extensions
• Belt tensioner tool (specialty)
• Trim clip removal tool
• Pick set
• Torque wrench
• Manifold A/C gauge set (specialty)
• Vacuum pump (specialty)
• Refrigerant recovery machine (specialty)
• Safety glasses
• Nitrile gloves
• Drain pan
• Fender cover

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• A/C compressor - Qty: 1
• A/C compressor oil - Qty: 1 bottle
• A/C line O-ring kit - Qty: 1
• Serpentine belt - Qty: 1
• Refrigerant (R-134a) - Qty: 1 system charge
• Receiver/drier or desiccant service component - Qty: 1

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Recover the refrigerant with approved equipment before disconnecting any A/C line.
• Disconnect the negative battery cable.
• If the compressor failed catastrophically, flush the system and replace the receiver/drier or desiccant component.
• Use only the oil type specified for the A/C system. Wrong oil can damage the compressor.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Recover the refrigerant

• Use a refrigerant recovery machine to remove all refrigerant from the A/C system.
• Do not open any A/C lines until the system is fully recovered.

Step 2: Disconnect the battery

• Use a 10mm socket to remove the negative battery cable.
• Move the cable aside so it cannot touch the terminal.

Step 3: Remove the intake ducting if needed

• Use a 8mm socket and trim clip removal tool to remove any air ducting that blocks access to the compressor or belt path.
• Set the parts aside in order.

Step 4: Remove the serpentine belt

• Use a belt tensioner tool (specialty) to rotate the tensioner and relieve belt tension.
• Slip the serpentine belt off the compressor pulley and slowly release the tensioner.
• Take a quick belt routing photo first.

Step 5: Disconnect the A/C compressor electrical connector

• Use a pick set if needed to release the connector lock.
• Unplug the compressor connector and move the harness away from the work area.

Step 6: Disconnect the refrigerant lines

• Use a 13mm socket or the correct line fastener tool for the A/C line retaining bolts if equipped.
• Carefully separate the suction and discharge lines from the compressor.
• Remove and discard the old A/C line O-rings.
• Cap the open lines immediately.

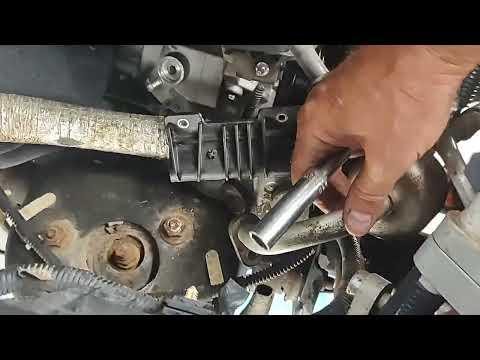

Step 7: Remove the compressor

• Use a 13mm socket and 15mm socket with extensions to remove the compressor mounting bolts.
• Support the compressor as you remove the last bolt, then lower it out of the engine bay.
• If the old compressor failed hard, inspect for metal debris in the ports and lines.

Step 8: Prepare the new compressor

• Drain any shipping oil from the new compressor if required.
• Add the correct amount of fresh A/C oil to the new compressor.
• Rotate the compressor clutch/pulley by hand several turns before installation.
• Do not overfill the oil.

Step 9: Install the new compressor

• Position the new compressor and start all mounting bolts by hand.
• Use a torque wrench to tighten the compressor bolts to factory specification.
• Reconnect the A/C refrigerant lines with new O-rings lightly lubricated with clean A/C oil.
• Use a torque wrench to tighten the line fasteners to factory specification.

Step 10: Reinstall the belt and connectors

• Use a belt tensioner tool (specialty) to route the serpentine belt back onto all pulleys.
• Reconnect the compressor electrical connector until it clicks.
• Reinstall any intake ducting removed earlier using the 8mm socket.

Step 11: Evacuate and recharge the system

• Use a vacuum pump (specialty) and manifold A/C gauge set (specialty) to evacuate the system for at least 30 minutes.
• Verify the system holds vacuum. If it does not, check for leaks before recharging.
• Recharge the system with the correct amount of R-134a refrigerant and the correct total oil balance.

Step 12: Reconnect power and inspect

• Reconnect the negative battery cable with a 10mm socket.
• Start the engine and turn the A/C on max.
• Check for normal compressor operation, cold vent air, and any leaks at the fittings.

---

✅ After Repair

• Verify both A/C lines get cool and the compressor cycles normally.
• Inspect all line connections for leaks.
• Listen for belt noise or pulley wobble.
• If the old compressor failed with metal debris, consider a full system flush and replacement of the receiver/drier or desiccant component.

---

💰 DIY vs Shop Cost

Shop Cost: $1,100-$1,900 (parts + labor)

DIY Cost: $350-$850 (parts only)

You Save: $750-$1,050 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 4-6 hours.

---
