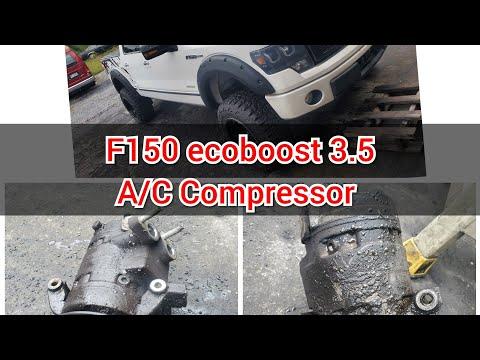

🔧 A/C Compressor - Replacement

The A/C compressor on your F-150 is part of a sealed refrigerant system, so the refrigerant must be recovered before any lines are opened. After the new compressor is installed, the system must be evacuated and recharged to the correct spec to avoid damage and poor cooling.

Difficulty Level: Advanced | Estimated Time: 3-5 hours

---

⚠️ Safety & Precautions

• Refrigerant can cause frostbite and eye injury. Do not loosen any A/C fitting until the refrigerant has been professionally recovered.
• Do not vent refrigerant to the atmosphere.
• Keep hands clear of the serpentine belt and fan area.
• Disconnect the negative battery cable before unplugging compressor wiring.
• If the old compressor failed internally, the system may need flushing and the condenser may need replacement.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 8mm socket
• 3/8-inch ratchet
• 3/8-inch extension set
• Serpentine belt tool (specialty)
• Line wrench set
• Torque wrench
• Trim clip tool
• Drain pan
• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands
• A/C manifold gauge set (specialty)
• Vacuum pump (specialty)
• R-134a recharge machine or recovery/recharge service

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• A/C compressor - Qty: 1
• A/C compressor clutch field connector seal - Qty: 1
• Compressor mounting bolts - Qty: 1 set
• A/C line O-ring kit - Qty: 1
• Refrigerant oil compatible with R-134a system - Qty: 1 bottle
• R-134a refrigerant - Qty: 1 service fill

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Have the refrigerant recovered by approved equipment before opening the system.
• Disconnect the negative battery cable.
• Raise the front of the truck safely if you need more access from below.
• If the old compressor failed badly, plan to replace the receiver/drier or condenser if contamination is found.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Recover the refrigerant

• Use an approved recovery machine to remove all refrigerant from the A/C system.
• Do not start any disassembly until the system is fully empty.

Step 2: Disconnect the battery

• Use a 10mm socket to remove the negative battery cable.
• Move the cable aside so it cannot touch the terminal.

Step 3: Remove the intake ducting and covers

• Use a trim clip tool and 8mm socket to remove the air intake duct or any cover blocking access.
• Set the parts aside in order.

Step 4: Remove the serpentine belt

• Use a serpentine belt tool (specialty) to rotate the belt tensioner and release belt tension.
• Slip the belt off the compressor pulley and slowly release the tensioner.
• Take a belt routing photo first.

Step 5: Unplug the compressor and open the lines

• Use your hands to unplug the compressor electrical connector.
• Use a line wrench set to remove the A/C suction and discharge lines from the compressor.
• Cap or cover the openings right away to keep dirt out.

Step 6: Remove the compressor

• Use a 10mm socket and 3/8-inch ratchet to remove the compressor mounting bolts.
• Support the compressor as the last bolt comes out.
• Lower it out carefully from the engine bay.

Step 7: Prepare the new compressor

• Check the replacement compressor for the correct oil amount before installation.
• Rotate the compressor by hand a few turns.
• Install new A/C line O-rings and lightly oil them with the correct refrigerant oil.

Step 8: Install the new compressor

• Position the new compressor and start all mounting bolts by hand.
• Use a torque wrench to tighten the compressor bolts to Torque to 25 Nm (18 ft-lbs).
• Reconnect the electrical connector.

Step 9: Reconnect the A/C lines

• Use a line wrench set to reinstall the suction and discharge lines with new O-rings.
• Tighten the line fittings to Torque to 13 Nm (115 in-lbs).
• Make sure the fittings seat straight and do not cross-thread.

Step 10: Reinstall the belt and removed parts

• Use a serpentine belt tool (specialty) to install the belt back onto the pulleys.
• Reinstall the intake ducting and covers using the 8mm socket and trim clip tool.
• Reconnect the negative battery cable with a 10mm socket.

Step 11: Evacuate and recharge the system

• Use an A/C manifold gauge set (specialty) and vacuum pump (specialty) to evacuate the system for at least 30 minutes.
• Check that the system holds vacuum before charging.
• Recharge with the exact refrigerant amount specified on the under-hood label.

Step 12: Verify operation

• Start the engine and turn the A/C on max.
• Check that the compressor engages smoothly and that vent temperature drops.
• Inspect all fittings for leaks with a leak detector or UV light.

---

✅ After Repair

• Confirm the belt tracks correctly and does not squeal.
• Check for refrigerant leaks at every opened connection.
• Verify cold air output on both front vents.
• If cooling is weak, recheck the refrigerant charge amount.

---

💰 DIY vs Shop Cost

Shop Cost: $950-$1,700 (parts + labor)

DIY Cost: $350-$850 (parts only)

You Save: $600-$850 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 3-5 hours.

---
