🔧 Santa Fe - A/C Compressor Replacement

Replacing the A/C compressor on your Santa Fe involves safely recovering the refrigerant, removing the drive belt, swapping the compressor and seals, then evacuating and recharging the system to the exact factory refrigerant weight. This is critical because venting refrigerant is illegal and dangerous, and an incorrect recharge can ruin the new compressor.

Difficulty Level: Advanced | Estimated Time: 3-6 hours

Assumption: Your Santa Fe uses R-134a; confirm on the under-hood A/C label.

---

⚠️ Safety & Precautions

• ⚠️ Do not vent refrigerant: it can cause frostbite/blindness and is illegal; refrigerant must be recovered with proper equipment.
• ⚠️ Keep hands/clothes away from the belt path; the serpentine belt can pinch and injure.
• ⚠️ Work on a cold engine; hot exhaust parts can burn you.
• ⚠️ Support the vehicle with jack stands; never rely on a floor jack alone.
• ⚠️ Disconnect the negative battery terminal to prevent accidental fan/engine cranking.
• ⚠️ If the old compressor failed internally (metal debris), the system must be flushed and the condenser/drier may need replacement to prevent immediate failure.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Trim clip removal tool
• Ratchet (3/8")
• Ratchet (1/2")
• Socket set (8mm-19mm)
• Wrench set (10mm-19mm)
• Torque wrench (10-80 ft-lbs)
• Serpentine belt tool or 1/2" breaker bar
• Line/flare-nut wrench set (14mm-19mm)
• Pick set
• Shop rags
• Drain pan
• A/C manifold gauge set for R-134a
• Refrigerant recovery machine (specialty)
• Vacuum pump (specialty)
• Refrigerant scale (specialty)
• UV dye/flashlight kit (optional)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• A/C compressor - Qty: 1
• A/C compressor clutch (if not included with compressor) - Qty: 1
• A/C line O-ring seal set (HNBR green A/C O-rings) - Qty: 1
• PAG A/C compressor oil (vehicle-correct viscosity) - Qty: 1
• Serpentine belt (recommended while removed) - Qty: 1
• Receiver/drier or condenser with integrated drier (if specified for your system) - Qty: 1
• Expansion valve (recommended if compressor failure debris suspected) - Qty: 1
• R-134a refrigerant (charge by weight per under-hood label) - Qty: as needed

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear wheels.
• Recover the refrigerant using a refrigerant recovery machine (specialty) connected through your A/C manifold gauge set for R-134a.
• Disconnect the negative battery terminal using a 10mm wrench.
• Raise the front safely with a floor jack and support on jack stands.
• Take photos before disassembly.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Recover refrigerant (required)

• Connect the A/C manifold gauge set for R-134a to the high/low service ports.
• Use a refrigerant recovery machine (specialty) to fully recover the refrigerant from the system.
• After recovery, close the valves on the manifold gauge set and disconnect.

Step 2: Remove lower splash shield for access

• Use a trim clip removal tool and 10mm socket to remove the under-engine splash shield fasteners.
• Set the shield and clips aside in a small pile so nothing gets lost.

Step 3: Remove the serpentine belt

• Locate the belt tensioner and rotate it with a serpentine belt tool or 1/2" breaker bar to relieve tension.
• Slip the belt off the A/C compressor pulley, then remove the belt from the other pulleys.
• Sketch the belt routing first.

Step 4: Disconnect the compressor electrical connector

• Unplug the compressor clutch/control connector by pressing the tab with your fingers (use a pick set gently only if stuck).
• Move the harness aside so it can’t get pinched during removal.

Step 5: Disconnect the A/C refrigerant lines from the compressor

• Place a drain pan under the compressor area and use shop rags to catch residual oil.
• Use line/flare-nut wrench set (14mm-19mm) to loosen the line fittings/retainers (flare-nut wrenches grip more sides of the nut to reduce rounding).
• Remove the lines and immediately cover/plug the open ends with clean shop rags to keep dirt/moisture out.
• Remove and discard the old O-rings using a pick set.

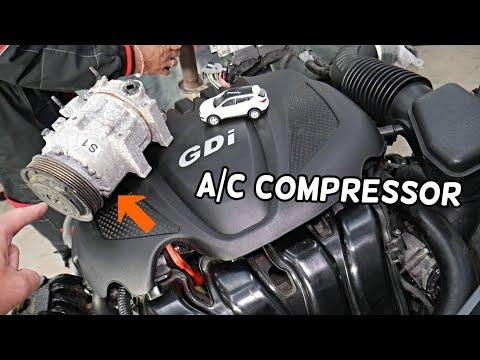

Step 6: Unbolt and remove the A/C compressor

• Support the compressor with one hand.
• Remove the compressor mounting bolts using a ratchet (3/8") and appropriate socket set (12mm-14mm typical).
• Lower the compressor out carefully from underneath.
• Torque on installation: Torque to 25-30 Nm (18-22 ft-lbs) for compressor mounting bolts (verify with factory service info for your exact bolt locations).

Step 7: Prep the new compressor (oil balancing)

• Drain the shipping oil from the new compressor into a drain pan (rotate the hub by hand if needed).
• Measure what came out (use markings on the bottle). Add the correct amount/type of PAG A/C compressor oil per the compressor instructions and system requirements.
• Hand-rotate the compressor hub a few turns to distribute oil.
• Too much oil reduces cooling.

Step 8: Install new O-rings and reinstall A/C lines

• Lightly coat new A/C line O-ring seal set O-rings with clean PAG A/C compressor oil.
• Install O-rings onto the line ends, then reinstall the lines onto the compressor.
• Tighten the fittings/retainers with a line/flare-nut wrench set (14mm-19mm).
• Torque (typical): Torque to 18-22 Nm (13-16 ft-lbs) for line fasteners/fittings (verify with factory service info).

Step 9: Reinstall compressor, connector, and belt

• Position the compressor and start all bolts by hand to avoid cross-threading.
• Tighten bolts with a torque wrench (10-80 ft-lbs) to the spec listed in Step 6.
• Reconnect the electrical connector by hand until it clicks.
• Install the belt using the serpentine belt tool or 1/2" breaker bar on the tensioner.

Step 10: Evacuate (vacuum) the system

• Reconnect the A/C manifold gauge set for R-134a.
• Connect a vacuum pump (specialty) to the manifold and pull vacuum for at least 30-45 minutes.
• Close the manifold valves and verify it holds vacuum for 10-15 minutes (a loss indicates a leak).

Step 11: Recharge by weight (not by pressure)

• Find the exact refrigerant weight on the under-hood A/C label.
• Charge the system using R-134a refrigerant measured on a refrigerant scale (specialty) through the manifold per standard charging procedure.
• Do not overcharge; overcharge can increase pressures and reduce cooling.

Step 12: Reinstall splash shield and reconnect battery

• Reinstall the splash shield using a 10mm socket and trim clip removal tool (for clips).
• Reconnect the negative battery terminal using a 10mm wrench.

---

✅ After Repair

• Start the engine and set A/C to MAX, recirculation ON, and blower on high; confirm the compressor engages and cold air blows.
• Check for leaks at the compressor line connections (oil residue is a common clue); use a UV dye/flashlight kit (optional) if needed.
• Listen for abnormal noises (grinding/squealing); shut down immediately if heard.
• If the old compressor failed catastrophically (metal debris), plan on replacing the receiver/drier (or condenser with integrated drier) and flushing lines to protect the new compressor.

---

💰 DIY vs Shop Cost

Shop Cost: $1,200-$2,200 (parts + labor + recover/evac/recharge)

DIY Cost: $350-$900 (parts only; specialty A/C equipment not included)

You Save: $300-$1,300 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 3-5 hours.

---
