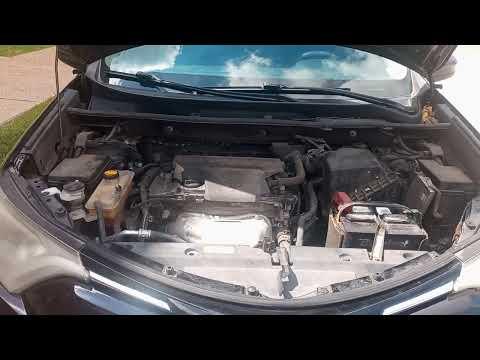

🔧 RAV4 - A/C Compressor Replacement

You’ll be removing the A/C compressor from your RAV4 and installing a new one, along with new seals and oil. The physical job is very doable at home, but the refrigerant must be evacuated and recharged with proper equipment.

Difficulty Level: Advanced | Estimated Time: 3-5 hours (plus shop time for evac/recharge)

---

⚠️ Safety & Precautions

• ⚠️ Refrigerant safety: Never vent A/C refrigerant to the air; it can cause frostbite and eye injury and is illegal. Have a shop recover it with a machine before you start.
• ⚠️ Work on a fully cooled engine; hot parts and moving belts can cause burns or injury.
• ⚠️ Disconnect the negative battery cable before working near the compressor and belt to prevent accidental starts.
• ⚠️ Wear safety glasses and gloves; refrigerant oil can irritate skin and eyes.
• ⚠️ Support the vehicle securely with jack stands if you lift it to access the compressor from underneath.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 🛠️ Floor jack (rated 3-ton minimum)
• 🛠️ Jack stands (rated 3-ton minimum)
• 🛠️ Wheel chocks
• 🛠️ 10mm socket
• 🛠️ 12mm socket
• 🛠️ 14mm socket
• 🛠️ 3/8" drive ratchet
• 🛠️ 3/8" drive torque wrench (5-80 ft-lbs range)
• 🛠️ Serpentine belt tool or 14mm box wrench
• 🛠️ Extension bar set (3"–6")
• 🛠️ Flathead screwdriver (medium)
• 🛠️ Plastic trim clip remover
• 🛠️ Needle-nose pliers
• 🛠️ Shop rags
• 🛠️ Safety glasses
• 🛠️ Mechanic gloves
• 🛠️ A/C manifold gauge set (R-134a, specialty)
• 🛠️ A/C recovery/recharge machine (specialty)
• 🛠️ Vacuum pump (A/C rated, specialty)
• 🛠️ Small oil measuring cup or syringe (for PAG oil)
• 🛠️ UV leak detection light (optional, specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 🔩 A/C compressor assembly (with clutch) for 2.5L engine - Qty: 1
• 🔩 A/C compressor mounting O-rings or gaskets (if required) - Qty: 1 set
• 🔩 A/C refrigerant line O-rings (compressor suction and discharge) - Qty: 1 set
• 🔩 PAG A/C compressor oil (Toyota ND-OIL 8 equivalent) - Qty: as required for compressor
• 🔩 R-134a refrigerant - Qty: per under-hood label (usually about 500–700 g)
• 🔩 Serpentine drive belt - Qty: 1 (recommended while you are there)
• 🔩 A/C receiver/drier or condenser with integrated drier - Qty: 1 (recommended when replacing compressor)
• 🔩 Engine undercover clips (if any break during removal) - Qty: as needed
• 🔩 Dielectric grease (for electrical connectors) - Qty: small tube

---

📋 Before You Begin

• Park the RAV4 on level ground, set the parking brake, and chock the rear wheels.
• Have a licensed A/C shop recover the refrigerant with a machine before you loosen any A/C lines.
• Open the hood and locate the battery; use a 10mm socket to loosen the negative terminal and set the cable aside so it cannot spring back.
• Gather all tools and parts; once the compressor is off, you do not want to leave the A/C system open to air for long.
• Check the under-hood A/C label for the exact refrigerant type and capacity; you’ll need this for charging later.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise and secure the vehicle

• Use the floor jack to lift the front of your RAV4 at the front center jacking point (behind the front bumper crossmember).
• Place jack stands under the factory pinch welds on both sides and lower the vehicle gently onto them.
• Leave the jack in place as a backup, but do not rely on it alone.

Step 2: Remove the engine undercover (splash shield)

• Use a 10mm socket to remove the bolts holding the plastic engine undercover in place under the front of the engine.
• Use the plastic trim clip remover to gently pop out any plastic clips; if they are stubborn, use a flathead screwdriver carefully.
• Lower the undercover and set it aside.

Step 3: Remove the serpentine belt

• From the front of the engine bay, locate the serpentine belt routing diagram decal; if missing, take a clear photo of the belt routing.
• Place a 14mm box wrench or serpentine belt tool on the belt tensioner bolt (center of tensioner pulley).
• Rotate the tensioner clockwise to release belt tension, then slip the belt off one of the upper pulleys with your other hand.
• Gently release the tensioner and fully remove the belt from all pulleys.
• Good time to install a new belt

Step 4: Access the A/C compressor

• The compressor is mounted low on the front of the engine, toward the passenger side.
• From underneath, with the undercover removed, you will see the compressor body, pulley, and the two A/C lines bolted to the rear of the compressor.
• Use shop rags to wipe dirt around the line connections so debris does not enter the system.

Step 5: Disconnect the A/C compressor electrical connector

• Locate the electrical connector on the compressor (for the clutch/control).
• Press the plastic locking tab with your fingers or needle-nose pliers and pull the connector straight off.
• If needed, use a flathead screwdriver gently to help release the tab; do not break it.

Step 6: Remove A/C lines from the compressor

• Confirm again the system has been evacuated by a shop before this step.
• Use a 10mm or 12mm socket (depending on your line block bolts) to remove the bolts securing the suction and discharge lines to the rear of the compressor.
• Carefully pull the lines straight back off the compressor ports; gently wiggle if they stick.
• Immediately cover the open ends of the lines and the compressor ports with clean shop rags to limit moisture entry.
• Remove and discard the old O-rings from the line ends.
• Torque for line bolts (on reassembly): 10 Nm (89 in-lbs)

Step 7: Remove the compressor mounting bolts

• From underneath, locate the four compressor mounting bolts that attach it to the engine block.
• Use a 14mm socket with an extension and ratchet to loosen and remove all mounting bolts.
• Support the compressor with your hand as you remove the last bolt so it does not drop.
• Carefully lower the compressor out of the engine bay.
• Torque for compressor mounting bolts (on reassembly): 24 Nm (18 ft-lbs)

Step 8: Prepare the new compressor

• Check the new compressor for shipping plugs in the ports and remove them just before installation.
• Drain the oil from the old compressor into a clean measuring cup by tilting and rotating it; note the amount.
• Check the new compressor instructions for the correct oil charge. Typically, you will add an amount of PAG oil equal to what came out of the old unit, adjusted for any other components you replace (like the drier).
• Measure the correct amount of PAG oil with the measuring cup or syringe and pour it into the new compressor ports.
• Gently rotate the compressor clutch/pulley by hand several turns to distribute the oil inside.
• Follow compressor manufacturer’s oil instructions

Step 9: Install new O-rings on the A/C lines

• Match the new O-rings to the old ones in size.
• Lightly coat each new O-ring with clean PAG oil (just a thin film using your fingertip).
• Install the O-rings into their grooves on the A/C line ends; do not twist them.

Step 10: Install the new compressor

• Position the new compressor in place from underneath, aligning it with the mounting holes on the engine block.
• Start all four mounting bolts by hand to avoid cross-threading.
• Use the 14mm socket and ratchet to snug the bolts evenly.
• Use the torque wrench with 14mm socket to tighten all compressor mounting bolts to 24 Nm (18 ft-lbs).

Step 11: Reattach A/C lines to the compressor

• Align the suction and discharge lines with their ports on the compressor; make sure O-rings stay in place.
• Push the lines straight onto the ports until they sit flush.
• Install the line bolts by hand first.
• Use a 10mm or 12mm socket and ratchet to snug the bolts evenly.
• Use the torque wrench to tighten the line bolts to 10 Nm (89 in-lbs); do not overtighten or you can crush the O-rings.

Step 12: Reconnect electrical connector

• Inspect the compressor electrical connector for corrosion or damage; apply a tiny amount of dielectric grease if you have it.
• Push the connector onto the compressor terminal until it clicks and is locked.

Step 13: Reinstall the serpentine belt

• Route the belt around the pulleys using your photo or the under-hood diagram as a guide, leaving the easiest upper pulley for last.
• Place the 14mm box wrench or belt tool on the tensioner and rotate clockwise to release tension.
• Slip the belt over the last pulley, then slowly release the tensioner so it takes up the slack.
• Check from all angles to be sure the belt is fully seated in the grooves on every pulley.

Step 14: Reinstall the engine undercover

• Lift the engine undercover into position.
• Install any plastic clips by hand first, then use the 10mm socket to reinstall and snug all bolts.
• Torque spec is not critical here; just snug them with the 10mm socket (do not overtighten and strip the plastic).

Step 15: Lower the vehicle and reconnect the battery

• Use the floor jack to lift the front slightly, remove the jack stands, then lower the vehicle fully to the ground.
• Use the 10mm socket to reinstall and tighten the negative battery terminal.
• Torque for battery terminal clamp: about 5 Nm (44 in-lbs) – just snug.

Step 16: Evacuate and recharge the A/C system

• If you have an A/C recovery/recharge machine and vacuum pump, connect your manifold gauges to the high and low service ports.
• Pull a deep vacuum (about -29 inHg) for at least 30 minutes to remove moisture and air.
• Close valves and verify the vacuum holds steady for 10–15 minutes; if it rises, you may have a leak.
• Charge the system with R-134a to the exact amount listed on the under-hood label, using the machine’s scale.
• If you do not have this equipment, have a shop perform the evacuation, vacuum, and recharge; tell them you installed a new compressor and O-rings.

---

✅ After Repair

• Start the engine, set the A/C to MAX cold, blower on high, and recirculation ON.
• Verify the A/C clutch engages and disengages smoothly and that no unusual noises come from the compressor or belt area.
• Check for leaks at the compressor line connections using a UV light if dye is present or soapy water for obvious bubbling (do not spray on hot exhaust).
• Confirm the air from the center vents gets cold and stays consistent after 10–15 minutes of driving.
• After a short test drive, recheck under the hood for any oil or refrigerant signs at the new joints.

---

💰 DIY vs Shop Cost

Shop Cost: $900-$1,400 (parts + labor, including evac/recharge)

DIY Cost: $350-$650 (compressor, belt, seals, plus shop evac/recharge)

You Save: $250-$800 by doing the mechanical work yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-3 hours plus A/C machine time.

---
