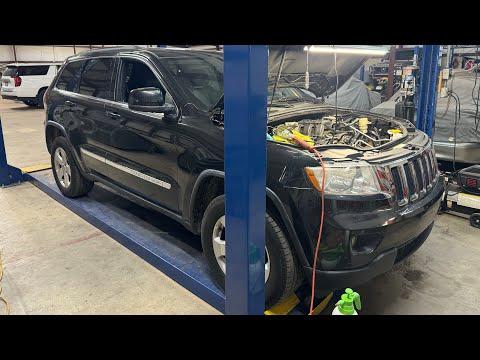

🔧 Grand Cherokee - A/C Compressor Replacement

Replacing the A/C compressor on your Grand Cherokee means removing the drive belt, disconnecting the refrigerant lines, swapping the compressor, then vacuuming and recharging the system. The biggest “gotcha” is the refrigerant: it must be recovered properly and the system must be evacuated (vacuumed) before recharging, or cooling and compressor life will suffer.

Difficulty Level: Advanced | Estimated Time: 3-6 hours

---

⚠️ Safety & Precautions

• ⚠️ Do not vent refrigerant to the air—have the system professionally recovered first.
• ⚠️ Wear safety glasses and gloves—liquid refrigerant can freeze skin/eyes instantly.
• ⚠️ Keep fingers/tools clear of the belt drive while routing the belt.
• ⚠️ Support the SUV with jack stands on solid, level ground—never rely on a jack alone.
• ⚠️ Disconnect the negative battery terminal before unplugging the compressor connector.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Nitrile gloves
• Metric socket set (8mm–18mm)
• 3/8" drive ratchet
• 1/2" drive breaker bar
• Torque wrench (10–150 ft-lbs range)
• Serpentine belt tool or long 3/8" drive ratchet
• Trim clip remover tool
• Flathead screwdriver
• Pry bar
• Line pick set
• Drain pan
• R-134a manifold gauge set (specialty)
• Vacuum pump (specialty)
• Refrigerant scale (specialty)
• Electronic leak detector (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• A/C compressor - Qty: 1
• A/C compressor O-ring seal kit - Qty: 1
• PAG A/C oil (R-134a compatible) - Qty: 1
• R-134a refrigerant - Qty: As specified on under-hood label
• Serpentine belt - Qty: 1 (recommended if belt is cracked/glazed)
• Condenser with receiver/drier - Qty: 1 (recommended if compressor failed with metal/debris)

---

📋 Before You Begin

• 🅿️ Park on level ground, set the parking brake, and chock the rear wheels.
• 🔌 Disconnect the negative battery terminal using a 10mm socket.
• 🧊 Confirm the refrigerant has been recovered. If the system still has pressure, stop and have it evacuated professionally.
• ❓Two quick questions that change the “right” way to do this:
  • Did the old compressor seize or make grinding noises (possible metal debris)?
  • Is the A/C system currently empty (already recovered/leaked down) or still charged?

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Verify the system is empty (no pressure)

• Remove the service port caps by hand (low side is the larger line fitting).
• Connect the R-134a manifold gauge set (specialty) to the low and high service ports.
• If gauges show any pressure, do not open any lines—have the refrigerant recovered first.
• Never “crack” a line to check pressure.

Step 2: Raise the front and remove the lower splash shield

• Lift the front with a floor jack (rated 3-ton minimum) and support with jack stands (rated 3-ton minimum).
• Remove shield fasteners using a trim clip remover tool and 8mm socket.
• Reinstall fasteners later: Torque to 10 Nm (89 in-lbs).

Step 3: Release serpentine belt tension and move the belt off the compressor

• Use a serpentine belt tool or long 3/8" drive ratchet on the belt tensioner to relieve tension.
• Slip the belt off the A/C compressor pulley and let it rest out of the way.
• Take a belt routing photo first.

Step 4: Unplug the compressor electrical connector

• Press the lock tab and disconnect the connector by hand (use a flathead screwdriver gently if stuck).
• Inspect for oil saturation or corrosion at the connector.

Step 5: Disconnect the refrigerant lines from the compressor

• Place a drain pan under the compressor area.
• Remove the line retaining bolt(s) using a 10mm socket.
• Carefully wiggle the line block/manifold straight out (use a pry bar very gently if needed).
• Discard old seals. Do not reuse O-rings.
• Reinstall later: Torque to 12 Nm (106 in-lbs).

Step 6: Remove the A/C compressor

• Support the compressor with one hand and remove the mounting bolts using a 13mm socket.
• Lower and remove the compressor from below.
• Reinstall later: Torque to 28 Nm (21 ft-lbs).

Step 7: Match and prep the new compressor (oil setup)

• If the new compressor comes pre-filled, follow the compressor instructions exactly.
• If you must transfer oil, drain the old compressor into a measuring container (use a drain pan) and measure what came out.
• Add the same amount of fresh oil to the new compressor using PAG A/C oil (R-134a compatible).
• Rotate the compressor hub by hand a few turns to distribute oil (do not use power tools).
• Too much oil reduces cooling performance.

Step 8: Install new O-rings and reinstall the refrigerant lines

• Install new O-rings from the A/C compressor O-ring seal kit.
• Lightly coat each O-ring with clean PAG A/C oil (R-134a compatible) before assembly.
• Insert the line block/manifold straight in to avoid cutting an O-ring.
• Install the retaining bolt(s) using a 10mm socket and torque wrench: Torque to 12 Nm (106 in-lbs).

Step 9: Reinstall the compressor and belt

• Position the compressor and start all mounting bolts by hand.
• Tighten compressor mounting bolts with a 13mm socket and torque wrench: Torque to 28 Nm (21 ft-lbs).
• Route the belt correctly and use the serpentine belt tool or long 3/8" drive ratchet to relieve tension while seating the belt.

Step 10: Reinstall splash shield and reconnect battery

• Reinstall the lower splash shield using the 8mm socket and trim clip remover tool.
• Tighten fasteners with a torque wrench: Torque to 10 Nm (89 in-lbs).
• Reconnect the negative battery terminal using a 10mm socket: Torque to 9 Nm (80 in-lbs).

Step 11: Vacuum the system (evacuate) and recharge by weight

• Connect the R-134a manifold gauge set (specialty) and vacuum pump (specialty).
• Pull vacuum for at least 30–45 minutes, then close valves and verify it holds vacuum (leak check).
• Recharge using R-134a refrigerant on a refrigerant scale (specialty) by the exact weight shown on the under-hood A/C label.
• Do not charge by “can pressure” or guesses.

Step 12: Leak-check and performance-check

• Start the engine and turn A/C to MAX with blower on high.
• Use an electronic leak detector (specialty) around compressor line fittings and service ports.
• Verify the compressor cycles correctly and vents blow cold once stabilized.

---

✅ After Repair

• 🧪 Recheck for leaks after a short drive and another A/C run cycle.
• 🔍 If cooling is weak, verify charge weight and condenser fan operation.
• 🧼 If the old compressor failed loudly or seized, strongly consider flushing/parts replacement (condenser/receiver-drier) to prevent repeat failure.

---

💰 DIY vs Shop Cost

Shop Cost: $900-$1,800 (parts + labor)

DIY Cost: $300-$900 (parts only, assuming you already have specialty A/C equipment)

You Save: $300-$900 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2.5-4.5 hours.

---
