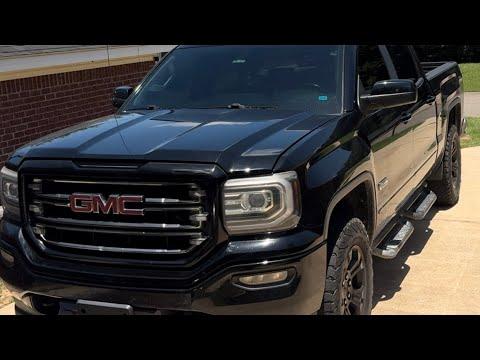

🔧 Sierra 1500 - A/C Compressor Replacement

Replacing the A/C compressor on your Sierra 1500 involves safely recovering the refrigerant, removing the drive belt and compressor, replacing the seals (O-rings), then vacuuming and recharging the system to the exact factory specification.

This job is very doable, but refrigerant handling and correct recharge amounts are the “make-or-break” parts of the repair.

Difficulty Level: Advanced | Estimated Time: 3-6 hours

---

⚠️ Safety & Precautions

• ⚠️ Do not vent refrigerant to the air—have the system professionally recovered first.
• ⚠️ Wear safety glasses and gloves; liquid refrigerant can cause frostbite instantly.
• ⚠️ Keep hands/tools clear of the belt drive; remove the key and disconnect the battery.
• ⚠️ If the old compressor failed internally (metal debris), you may need additional parts (condenser/orifice tube) to prevent repeat failure.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 1/2" drive breaker bar
• 3/8" drive ratchet
• Socket set (metric 8mm-15mm)
• Serpentine belt tool (specialty)
• Torque wrench (10-200 Nm range)
• A/C manifold gauge set for R-134a (specialty)
• Vacuum pump (specialty)
• Refrigerant scale (specialty)
• Trim clip removal tool
• Flathead screwdriver
• Fender cover
• Shop towels

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• A/C compressor (correct for your Sierra 1500) - Qty: 1
• A/C compressor clutch (only if not included with compressor) - Qty: 1
• A/C compressor manifold O-ring seal kit - Qty: 1
• PAG A/C compressor oil (correct type for your Sierra 1500) - Qty: 1
• R-134a refrigerant (recharge amount per underhood label) - Qty: 1
• Serpentine drive belt (recommended if worn/cracked) - Qty: 1

---

📋 Before You Begin

• 🧭 Park on level ground, set the parking brake, and chock the rear wheels.
• 🔌 Disconnect the negative battery cable using the correct socket.
• 🧊 Have an A/C shop recover the refrigerant first (this is required before any A/C line is opened).
• 📄 Check the underhood A/C label and write down the exact R-134a charge amount and oil specification/total oil listed.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Confirm the compressor failure type

• Look for signs of a “clean” failure vs “dirty” failure: squealing/seized pulley, clutch not engaging, or noisy compressor.
• If you see glitter/metal in the oil or lines, treat it as contamination (you’ll likely need more than just the compressor).
• Dirty systems often kill new compressors fast.

Step 2: Raise and support the front safely

• Use floor jack (rated 3-ton minimum) to lift the front at the proper lift point.
• Set the truck onto jack stands (rated 3-ton minimum) and confirm it’s stable before going underneath.

Step 3: Remove any lower splash shields if equipped

• Use a trim clip removal tool and socket set (metric 8mm-15mm) to remove the fasteners.
• Set the shield and fasteners aside in a tray so nothing is lost.

Step 4: Remove the serpentine belt

• Use a serpentine belt tool (specialty) (or a 1/2" drive breaker bar if it fits your tensioner) to rotate the belt tensioner and slip the belt off the A/C compressor pulley.
• Take a quick photo of belt routing before removal (or reference the underhood belt diagram).

Step 5: Disconnect the compressor electrical connector

• Use a flathead screwdriver carefully to release the connector lock (don’t break the tab).
• Move the harness out of the way.

Step 6: Disconnect the A/C lines from the compressor

• Place shop towels under the connection to catch any residual oil.
• Use your socket set (metric 8mm-15mm) to remove the compressor manifold retaining bolt(s).
• Pull the manifold straight off (don’t pry hard on the aluminum lines).
• Remove and discard the old O-rings.

Step 7: Remove the A/C compressor

• Support the compressor by hand.
• Use a socket set (metric 8mm-15mm) to remove the compressor mounting bolts.
• Remove the compressor from the bracket and lower it out carefully.

Step 8: Prepare the new compressor (oil + seals)

• Drain and measure oil from the old compressor into a clean container (if possible) to estimate what was in it.
• Add the correct amount/type of PAG A/C compressor oil to the new compressor as required by the factory label and compressor instructions.
• Lightly coat new O-rings with clean PAG oil before installation (this helps sealing and prevents tearing).
• Dry O-rings can pinch and leak.

Step 9: Install the new compressor

• Position the compressor and hand-start all mounting bolts using your socket set (metric 8mm-15mm).
• Tighten using a torque wrench (10-200 Nm range) to the factory compressor mounting bolt specification for your Sierra 1500.

Step 10: Reconnect the A/C lines with new O-rings

• Install the new O-rings onto the manifold.
• Push the manifold straight into the compressor port(s) and install the retaining bolt(s) using your socket set (metric 8mm-15mm).
• Tighten using a torque wrench (10-200 Nm range) to the factory manifold bolt specification for your Sierra 1500.

Step 11: Reconnect the compressor electrical connector

• Plug it in until it clicks and confirm the lock tab is engaged.

Step 12: Reinstall the serpentine belt

• Route the belt according to the underhood diagram.
• Use the serpentine belt tool (specialty) to rotate the tensioner and slip the belt fully onto the last pulley.
• Double-check every pulley groove is seated correctly.

Step 13: Reinstall splash shields and lower the truck

• Reinstall shields using the trim clip removal tool and socket set (metric 8mm-15mm).
• Lower the truck using the floor jack (rated 3-ton minimum) and remove the jack stands (rated 3-ton minimum).

Step 14: Evacuate and recharge the A/C system correctly

• Connect the A/C manifold gauge set for R-134a (specialty) to the high and low service ports.
• Connect the vacuum pump (specialty) and pull vacuum long enough to remove air/moisture, then verify it holds (no leaks).
• Recharge by weight using a refrigerant scale (specialty) to the exact underhood label specification for your Sierra 1500.
• Charging by pressure is inaccurate.

---

✅ After Repair

• 🔎 Start the engine and set A/C to MAX. Confirm the compressor engages and the center vents blow cold.
• 🔍 Check for leaks at the compressor manifold connection (oily residue is a clue).
• 🧪 Verify vent temperature and that pressures look normal on the manifold gauges.
• 🛑 If cooling is weak or the compressor cycles rapidly, stop and re-check charge amount and for leaks.

---

💰 DIY vs Shop Cost

Shop Cost: ₹18,000-₹45,000 (parts + labor, varies with compressor brand and contamination)

DIY Cost: ₹10,000-₹30,000 (parts only, assuming you can vacuum/recharge correctly)

You Save: ₹8,000-₹15,000 by doing it yourself!

Shop labor rates vary. This repair takes a shop approximately 2-4 hours.

---
