🔧 Fusion - A/C Compressor Replacement

Your Fusion Energi uses an electric (high-voltage) A/C compressor so the car can make cold air even when the gas engine is off. Replacing it involves safely disabling the hybrid high-voltage system, recovering the refrigerant, swapping the compressor and seals, then vacuuming and recharging the A/C system.

Difficulty Level: Advanced | Estimated Time: 4-7 hours

Assumption: stock electric HV compressor with R-134a refrigerant.

---

⚠️ Safety & Precautions

• ⚠️ High voltage: The A/C compressor is HV-powered; disable the HV system before touching orange cables or the compressor.
• ⚠️ Refrigerant hazard: R-134a can cause frostbite and eye injury; wear gloves and safety glasses.
• ⚠️ Legal/required equipment: Refrigerant must be recovered with proper equipment—do not vent to atmosphere.
• ⚠️ Correct oil only: Hybrid/electric compressors typically require non-conductive A/C oil (commonly ND-11 type). Using the wrong oil can damage the compressor and HV system.
• ⚠️ Battery disconnect: Disconnect the 12V battery and remove the HV service disconnect before starting.
• ⚠️ Wait time: After HV disable, wait at least 5–10 minutes before working near HV components.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Insulated mechanic gloves (high-voltage rated)
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 10mm socket
• 13mm socket
• 15mm socket
• 3/8" drive ratchet
• 3/8" drive torque wrench (10–80 Nm range)
• Trim clip removal tool
• Flat-blade screwdriver
• Serpentine belt tool (specialty)
• A/C manifold gauge set for R-134a
• Refrigerant recovery machine (specialty)
• Vacuum pump (A/C)
• Refrigerant scale
• O-ring pick set
• Shop rags

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• A/C compressor (electric, hybrid-specific) - Qty: 1
• A/C line O-ring set (HNBR green) - Qty: 1
• Receiver/drier or desiccant element (if serviced separately) - Qty: 1
• R-134a refrigerant - Qty: 1 full system charge
• Hybrid/electric A/C compressor oil (ND-11 type) - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and chock the rear wheels.
• Let the car cool down; keep hands away from hot radiator components.
• Plan for A/C recovery/evac/recharge: if you don’t have a recovery machine (it pulls refrigerant into a tank), have a shop recover the refrigerant first.
• Disable power:
  • Open the trunk and access the 12V battery area.
  • Disconnect the 12V negative cable using a 10mm socket.
  • Remove the high-voltage service disconnect (the safety plug) per the vehicle’s procedure, then wait 5–10 minutes.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Recover the refrigerant

• Connect the A/C manifold gauge set for R-134a to the low and high service ports.
• Use the refrigerant recovery machine (specialty) to fully recover the refrigerant from the system.
• If you can’t recover refrigerant, stop here.

Step 2: Raise the front of the car and remove the lower splash shield

• Lift the front using a floor jack (rated 3-ton minimum) and support with jack stands (rated 3-ton minimum).
• Remove the lower engine splash shield fasteners using a trim clip removal tool and 10mm socket.
• Set fasteners aside in a tray so you don’t lose them.

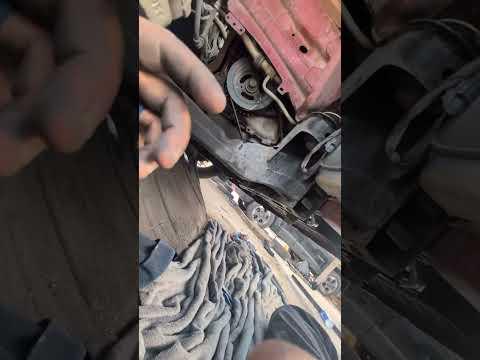

Step 3: Remove the serpentine belt from the A/C compressor

• Use a serpentine belt tool (specialty) to rotate the belt tensioner and relieve tension.
• Slip the belt off the A/C compressor pulley area and carefully release the tensioner.
• Take a quick photo of belt routing.

Step 4: Disconnect the A/C lines from the compressor

• Clean the area around the line connection with shop rags to keep dirt out.
• Remove the A/C line retaining fastener using a 10mm socket (common on Ford line manifolds).
• Gently wiggle and pull the lines straight off the compressor ports.
• Immediately cover/open ports with a clean rag to keep moisture out.
• Remove old O-rings using an O-ring pick set (a small hook tool used to lift seals out).

Step 5: Disconnect the high-voltage electrical connector(s)

• Verify the HV service disconnect is removed and the 12V negative cable is disconnected.
• Release the connector lock(s) carefully using a flat-blade screwdriver as needed.
• Unplug the compressor electrical connector(s) without pulling on wires.

Step 6: Remove the A/C compressor mounting bolts and compressor

• Support the compressor by hand.
• Remove the compressor mounting bolts using a 13mm socket or 15mm socket (bolt head size varies by bracket).
• Lower and remove the compressor from underneath.

Step 7: Prepare the new compressor (oil and seals)

• Confirm the replacement compressor is the hybrid/electric type for your Fusion.
• Install new O-rings on the A/C lines.
• Lightly lubricate O-rings with hybrid/electric A/C compressor oil (ND-11 type).
• If the new compressor is not pre-filled to spec, add oil only as directed by the compressor instructions. Wrong oil can ruin the system.

Step 8: Install the new compressor

• Position the compressor and hand-start the mounting bolts.
• Tighten mounting bolts using a 3/8" drive torque wrench (10–80 Nm range).
• Torque to 25 Nm (18 ft-lbs) for compressor mounting bolts (common Ford spec range).

Step 9: Reconnect electrical connector(s)

• Reconnect the compressor connector(s) until fully seated and locked.
• Double-check that wiring is clipped away from the belt path.

Step 10: Reinstall A/C lines with new O-rings

• Align the lines squarely and push them onto the compressor ports.
• Install the retaining fastener using a 10mm socket.
• Torque to 10 Nm (89 in-lbs) for the line retaining bolt (typical Ford manifold bolt spec).

Step 11: Reinstall the serpentine belt

• Route the belt correctly.
• Use the serpentine belt tool (specialty) to move the tensioner and slip the belt on.
• Visually confirm the belt is seated in every pulley groove.

Step 12: Reinstall splash shield and lower the car

• Reinstall the splash shield using the trim clip removal tool and 10mm socket.
• Lower the car from jack stands using the floor jack.

Step 13: Evacuate (vacuum) and recharge the A/C system

• Connect the A/C manifold gauge set for R-134a.
• Run the vacuum pump (A/C) for at least 30–45 minutes to remove air/moisture.
• Close valves and verify it holds vacuum (leak check).
• Recharge using a refrigerant scale with the exact under-hood label charge amount.

Step 14: Restore power (12V and high-voltage)

• Reinstall the high-voltage service disconnect fully seated.
• Reconnect the 12V negative cable using a 10mm socket.

---

✅ After Repair

• Start the car (READY mode) and turn A/C on MAX.
• Verify cold air at the vents and that the compressor runs smoothly (no loud grinding).
• Check for leaks at the compressor line connections.
• If you have warning lights or A/C faults, a scan tool may be needed to clear codes after repair.
• Recheck belt seating after a short test drive.

---

💰 DIY vs Shop Cost

Shop Cost: $1,200-$2,500 (parts + labor)

DIY Cost: $500-$1,600 (parts only)

You Save: $700-$900 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 3-5 hours.

---
