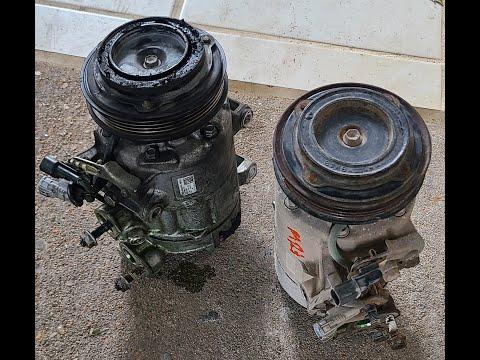

🔧 Focus - A/C Compressor Replacement

Replacing your A/C compressor on your Focus involves removing the drive belt, disconnecting the refrigerant lines, swapping the compressor, and then vacuuming/recharging the A/C system. The critical part is handling refrigerant correctly—refrigerant must be recovered with proper equipment (it cannot be vented).

Difficulty Level: Advanced | Estimated Time: 3-6 hours

---

⚠️ Safety & Precautions

• ⚠️ Do not vent refrigerant: have the system professionally recovered before opening any A/C lines.
• ⚠️ Wear safety glasses and gloves: refrigerant/oil can cause frostbite and eye injury.
• ⚠️ Work on a cold engine: avoid burns from the exhaust/manifold area.
• ⚠️ Support the vehicle securely: never work under a car held only by a jack.
• ⚠️ Keep dirt out of A/C lines: cap/plug lines immediately after disconnecting.
• 🔋 Battery disconnect is recommended before unplugging the compressor clutch connector.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Nitrile gloves
• Metric socket set (8mm-15mm)
• 3/8" ratchet
• 3/8" torque wrench
• Serpentine belt tool (specialty)
• Torx bit set
• Flat trim clip tool
• Line/flare-nut wrench set (metric)
• A/C line plug/cap kit
• Shop rags
• Brake cleaner or parts cleaner
• A/C manifold gauge set (specialty)
• Vacuum pump (specialty)
• Refrigerant scale (specialty)
• Refrigerant recovery machine (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• A/C compressor - Qty: 1
• A/C compressor manifold O-ring set - Qty: 1
• PAG A/C compressor oil (correct spec for your Focus) - Qty: 1
• R-134a refrigerant (charge to under-hood label amount) - Qty: 1
• Serpentine belt - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Have the refrigerant professionally recovered before you start disassembly.
• Disconnect the negative battery cable using a 10mm socket.
• Locate and write down the A/C charge amount from the under-hood A/C label (you’ll need this for the recharge).
• Take photos before removing connectors/lines.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Recover the refrigerant (required)

• Use an A/C refrigerant recovery machine (specialty) to recover the refrigerant completely.
• If you don’t have this machine, stop here and have an A/C shop recover the refrigerant before you continue.

Step 2: Raise the front of the car and remove the splash shield

• Lift the front with a floor jack (rated 3-ton minimum) and support it on jack stands (rated 3-ton minimum).
• Remove the lower splash shield/undertray fasteners using a flat trim clip tool and metric socket set (8mm-15mm) as needed.

Step 3: Remove serpentine belt tension

• Use a serpentine belt tool (specialty) to rotate the belt tensioner and slip the belt off the A/C compressor pulley.
• Route a quick sketch of the belt path.

Step 4: Disconnect the compressor electrical connector

• Unplug the compressor connector by releasing the lock tab by hand (or gently with a flat trim clip tool).

Step 5: Disconnect the A/C lines from the compressor

• Place shop rags under the connection to catch any residual oil.
• Use the correct-size line/flare-nut wrench set (metric) to loosen the A/C line fasteners/manifold bolts (depending on your compressor style).
• Immediately cap the open lines and compressor ports using an A/C line plug/cap kit.
• Remove and discard the old O-rings.

Step 6: Unbolt and remove the A/C compressor

• Support the compressor with one hand and remove the mounting bolts using a metric socket set (8mm-15mm) and 3/8" ratchet.
• Remove the compressor from below.
• Reinstall later using a 3/8" torque wrench and Torque to factory specification (don’t “guess-tighten”).

Step 7: Prep the new compressor (oil balancing)

• Confirm whether the new compressor is shipped with oil. Drain and measure oil from the old compressor (into a clean container) and match the amount in the new unit as required.
• Add the correct amount/type using PAG A/C compressor oil (correct spec for your Focus) (pour into the compressor and rotate the hub by hand several turns).
• Keep oil container sealed to avoid moisture.

Step 8: Install the new compressor

• Position the compressor and start all mounting bolts by hand to prevent cross-threading.
• Tighten mounting bolts using a 3/8" torque wrench and Torque to factory specification.

Step 9: Reconnect A/C lines with new O-rings

• Lightly coat new O-rings with a thin film of PAG A/C compressor oil (correct spec for your Focus).
• Install the new O-rings, reconnect the lines, and tighten using a line/flare-nut wrench set (metric).
• Tighten fasteners using a 3/8" torque wrench and Torque to factory specification.

Step 10: Reinstall the belt and splash shield

• Route the belt correctly and use a serpentine belt tool (specialty) to release tension and seat the belt on all pulleys.
• Reinstall the splash shield using a metric socket set (8mm-15mm) and any removed clips with a flat trim clip tool.

Step 11: Evacuate (vacuum) the A/C system

• Connect an A/C manifold gauge set (specialty) to the high and low service ports.
• Connect the center hose to a vacuum pump (specialty).
• Pull vacuum (typically 30–45 minutes) and verify it holds vacuum (no leak).

Step 12: Recharge with the correct amount of R-134a by weight

• Put the refrigerant on a refrigerant scale (specialty) and charge by weight only (use the under-hood label amount).
• Start the engine, set A/C to MAX, and complete the charge through the low side per your gauge set instructions.

Step 13: Reconnect the battery and final check

• Reconnect the negative battery cable using a 10mm socket.
• Check for abnormal belt noise, verify the compressor engages, and ensure vent temps drop normally.
• Inspect the compressor/line area for oil residue that would indicate a leak.

---

✅ After Repair

• Confirm steady cold air at idle and at 1,500–2,000 rpm.
• Verify both radiator fans operate when A/C is on.
• Recheck for leaks after a short drive (look for fresh oil at fittings).
• If cooling is weak or pressures look wrong, stop and have the system leak-checked before adding more refrigerant.

---

💰 DIY vs Shop Cost

Shop Cost: $900-$1,600 (parts + labor)

DIY Cost: $250-$650 (parts only)

You Save: $650-$950 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 3-5 hours.

---
