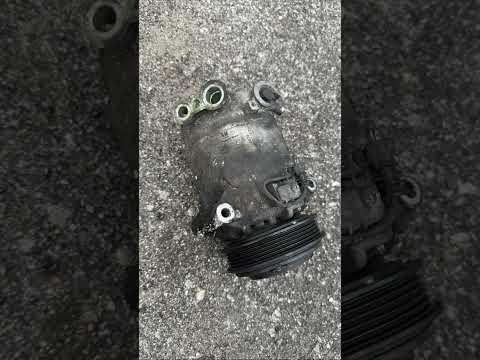

🔧 Malibu - A/C Compressor Replacement

Replacing the A/C compressor on your Malibu means safely recovering the refrigerant, removing the drive belt and compressor, then installing the new unit with fresh O-rings, correct oil amount, and a proper vacuum/recharge. The “must-do” part is evacuating and recharging by weight—otherwise the A/C can cool poorly or the new compressor can fail early.

Difficulty Level: Advanced | Estimated Time: 3-6 hours

---

⚠️ Safety & Precautions

• ⚠️ Refrigerant must be professionally recovered—do not vent R-134a to the air.
• ⚠️ Wear eye protection and gloves; liquid refrigerant can freeze skin/eyes instantly.
• ⚠️ Keep hands/clothes clear of the belt drive; the engine bay has pinch points.
• ⚠️ Do not mix refrigerants or sealers; they can damage equipment and the system.
• 🔋 Battery disconnect is recommended before unplugging the compressor electrical connector.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Socket set 8mm-18mm
• Ratchet 3/8"
• Torque wrench 10-100 Nm
• Serpentine belt tool 3/8" drive
• Trim clip remover
• Flathead screwdriver
• Line wrench set (A/C fittings)
• A/C manifold gauge set for R-134a
• Refrigerant recovery machine (specialty)
• Vacuum pump (specialty)
• Refrigerant scale (specialty)
• Refrigerant leak detector (specialty)
• Shop rags

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• A/C compressor - Qty: 1
• A/C compressor O-ring set - Qty: 1
• PAG A/C compressor oil (GM-spec) - Qty: 1
• R-134a refrigerant - Qty: As specified on underhood label
• Serpentine belt - Qty: 1 (optional)

---

📋 Before You Begin

• Park on level ground, set the parking brake, and use wheel chocks.
• Have the refrigerant recovered with a recovery machine (specialty) before any lines are opened.
• Read the underhood A/C label for the factory refrigerant charge amount (you’ll recharge by weight using a refrigerant scale (specialty)).
• Disconnect the negative battery cable using a 10mm socket.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Recover the refrigerant (required)

• Connect your A/C manifold gauge set for R-134a to the high and low service ports.
• Use a refrigerant recovery machine (specialty) to recover the refrigerant completely.
• If you don’t have recovery equipment, stop here.

Step 2: Raise and support the front of the car

• Lift the front using a floor jack (rated 3-ton minimum) at the proper front lift point.
• Support with jack stands (rated 3-ton minimum) and gently shake-test for stability.
• Remove any lower splash shield panels using a socket set 8mm-18mm and trim clip remover.

Step 3: Remove the serpentine belt from the A/C compressor

• Use a serpentine belt tool 3/8" drive to rotate the belt tensioner and relieve tension.
• Slip the belt off the A/C compressor pulley and slowly release the tensioner.
• Take a photo of the belt routing first.

Step 4: Disconnect the compressor electrical connector

• Locate the compressor connector and release the lock with a flathead screwdriver (gentle pressure).
• Unplug the connector and move it aside.

Step 5: Remove the A/C refrigerant lines from the compressor

• Place shop rags under the compressor to catch any residual oil.
• Use the correct size line wrench set (A/C fittings) to loosen the line fittings/manifold fasteners.
• Remove the lines and immediately cap/cover the openings with clean shop rags to keep moisture/dirt out.
• Remove and discard the old O-rings.

Step 6: Unbolt and remove the compressor

• Support the compressor by hand.
• Remove the compressor mounting bolts using a ratchet 3/8" and socket set 8mm-18mm.
• Remove the compressor from the bracket and lower it out carefully.

Step 7: Set the oil amount in the new compressor

• Drain the old compressor oil into a measuring container (note the amount).
• Add the same amount of fresh PAG A/C compressor oil (GM-spec) into the new compressor (unless the new compressor instructions specify otherwise).
• Slowly rotate the compressor hub by hand a few turns to distribute oil evenly.
• Too much oil reduces cooling and can damage the compressor.

Step 8: Install the new compressor

• Position the compressor and start all mounting bolts by hand.
• Tighten mounting bolts evenly using a torque wrench 10-100 Nm: Torque to 25 Nm (18 ft-lbs).
• Reconnect the electrical connector until it clicks.

Step 9: Reinstall the A/C lines with new O-rings

• Lightly coat new O-rings with clean PAG A/C compressor oil (GM-spec).
• Install the O-rings and reconnect the lines.
• Tighten line fasteners using a torque wrench 10-100 Nm: Torque to 10 Nm (89 in-lbs) for small manifold bolts, or 20 Nm (15 ft-lbs) for line fitting nuts (as applicable).
• Do not overtighten—A/C fittings strip easily.

Step 10: Reinstall the serpentine belt and shields

• Route the belt correctly and use the serpentine belt tool 3/8" drive to relieve tension and install the belt.
• Reinstall the splash shield panels using a socket set 8mm-18mm and trim clip remover.
• Lower the vehicle off the jack stands (rated 3-ton minimum) using the floor jack (rated 3-ton minimum).

Step 11: Evacuate the system (vacuum) and leak check

• Reconnect the A/C manifold gauge set for R-134a.
• Connect a vacuum pump (specialty) and pull vacuum for 30–45 minutes.
• Close the valves and verify it holds vacuum for 10–15 minutes.
• If vacuum drops, find leaks with a refrigerant leak detector (specialty) before charging.

Step 12: Recharge with R-134a by weight

• Reconnect the battery negative terminal using a 10mm socket.
• Place the refrigerant can/cylinder on a refrigerant scale (specialty).
• Charge the system with R-134a refrigerant to the exact amount listed on the underhood label.
• Run the engine and A/C on MAX, and continue charging per proper manifold-gauge procedure until the correct weight is in.

---

✅ After Repair

• Verify A/C performance: cold air at the vents and stable compressor operation.
• Listen for abnormal noises and confirm the belt tracks correctly.
• Check for leaks at the compressor line connections using a refrigerant leak detector (specialty).
• If cooling is weak, re-check charge weight and confirm condenser fan operation.

---
