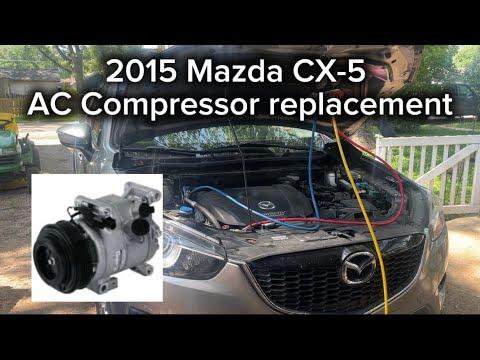

🔧 A/C Compressor - Replacement

The A/C compressor on your CX-5 is part of a sealed refrigerant system, so the refrigerant must be recovered before any lines are opened. After the compressor is replaced, the system must be evacuated, recharged, and leak-checked to avoid damage and poor cooling.

Difficulty Level: Advanced | Estimated Time: 4-6 hours

---

⚠️ Safety & Precautions

• Have the refrigerant professionally recovered before opening the A/C system.
• Wear safety glasses and gloves. Refrigerant can freeze skin instantly.
• Do not run the A/C system dry after replacement. Add the correct compressor oil amount before installation.
• Disconnect the negative battery cable before starting. The compressor and belt area are close to moving parts.
• Use jack stands if you need access from below. Never rely on a floor jack alone.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 12mm socket
• 14mm socket
• Ratchet
• Torque wrench
• Serpentine belt tool
• Line wrench set
• Trim clip tool
• Drain pan
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Safety glasses
• Nitrile gloves
• Refrigerant recovery machine (specialty)
• Vacuum pump (specialty)
• A/C manifold gauge set (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• A/C compressor - Qty: 1
• A/C compressor oil - Qty: 1 bottle
• A/C compressor O-rings - Qty: 2
• Serpentine belt - Qty: 1
• A/C receiver drier or desiccant element - Qty: 1

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Recover the refrigerant before opening any A/C lines.
• Disconnect the negative battery cable.
• Raise the front of the vehicle only if needed for lower access, then support it with jack stands.
• Keep dirt out of the A/C lines. Cap every open port right away.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Recover the refrigerant

• Use a refrigerant recovery machine (specialty) to remove all refrigerant from the system.
• Do not loosen any A/C line fittings until recovery is complete.

Step 2: Disconnect battery and gain access

• Use a 10mm socket to disconnect the negative battery cable.
• Remove the engine cover and any upper intake or splash shields that block access, using a 10mm socket and trim clip tool as needed.
• Keep fasteners organized.

Step 3: Remove the serpentine belt

• Use a serpentine belt tool to rotate the belt tensioner and relieve tension.
• Slip the belt off the compressor pulley and remove it from the engine bay.
• Inspect the belt now. Replace it if cracked, shiny, or stretched.

Step 4: Disconnect compressor electrical connector and lines

• Unplug the compressor electrical connector by hand.
• Use a line wrench set to loosen the A/C refrigerant line fittings.
• Remove the lines carefully and immediately cap or plug the openings.
• Replace the old O-rings with new ones lightly coated in compressor oil.

Step 5: Remove the compressor

• Use a 12mm socket and 14mm socket to remove the compressor mounting bolts.
• Support the compressor with one hand as you remove the final bolt.
• Lower the compressor out of the engine bay.

Step 6: Prepare the replacement compressor

• Drain and measure the oil from the old compressor if possible.
• Add the correct amount of new A/C compressor oil to the replacement unit. The oil amount must match the system specification for this compressor service.
• Do not overfill the compressor.

Step 7: Install the new compressor

• Position the compressor in place by hand.
• Install the mounting bolts first by hand, then tighten them with a torque wrench.
• Torque to factory specification for the compressor mounting bolts.
• Reconnect the refrigerant lines with new O-rings and tighten the fittings with a line wrench set.
• Torque to factory specification for the A/C line fittings.
• Reconnect the compressor electrical connector.

Step 8: Reinstall belt and removed parts

• Install the serpentine belt using the serpentine belt tool to rotate the tensioner.
• Make sure the belt is routed correctly on every pulley.
• Reinstall all covers, shields, and the engine cover with a 10mm socket and trim clip tool.
• Reconnect the negative battery cable with a 10mm socket.

Step 9: Evacuate and recharge the system

• Use a vacuum pump (specialty) and A/C manifold gauge set (specialty) to evacuate the system for at least 30 minutes.
• Verify the system holds vacuum before recharging.
• Recharge the system with the exact refrigerant amount listed for your CX-5.
• Torque to factory specification for any service port caps if removed.

---

✅ After Repair

• Start the engine and turn the A/C on MAX.
• Check that the compressor engages smoothly and the center vents get cold.
• Inspect all line connections for leaks.
• Listen for abnormal noise from the belt or compressor pulley.
• If cooling is weak, recheck refrigerant charge and leak-test the system.

---

💰 DIY vs Shop Cost

Shop Cost: $900-$1,600 (parts + labor)

DIY Cost: $350-$800 (parts only)

You Save: $550-$800 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 4-6 hours.

---
