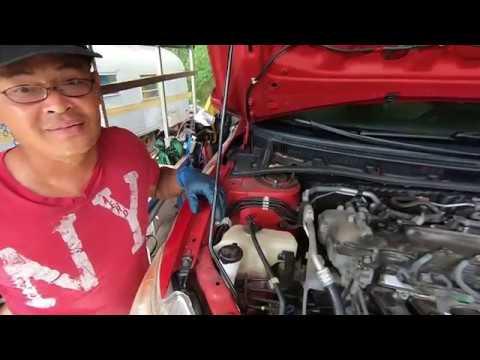

🔧 Corolla - A/C Compressor Replacement

The A/C compressor pumps refrigerant and oil through your A/C system. Replacing it requires safely recovering the refrigerant, swapping the compressor, then vacuuming and recharging the system to the correct spec so it cools properly and doesn’t leak.

Difficulty Level: Advanced | Estimated Time: 3-6 hours

Assumptions: This is the factory R-134a system; typical charge is about 0.45 kg (0.99 lb) and oil type is ND-OIL 8 (PAG). Use the under-hood A/C label as the final authority for charge amount and oil.

---

⚠️ Safety & Precautions

• ⚠️ Refrigerant is hazardous and under high pressure—do not vent to air; use certified recovery equipment.
• ⚠️ Wear safety glasses and nitrile gloves; refrigerant can cause frostbite on contact.
• ⚠️ Keep hands/tools clear of the belt path; never work near a running engine.
• ⚠️ Disconnect the negative battery terminal before unplugging the compressor connector.
• ⚠️ Don’t let dirt into open A/C lines—cap/plug fittings immediately.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 10mm socket
• 12mm socket
• 14mm socket
• 3/8" drive ratchet
• 3/8" drive torque wrench (10–80 Nm range)
• Socket extension set
• Serpentine belt tool or 14mm box wrench
• Trim clip remover
• Phillips screwdriver
• Pick set
• A/C manifold gauge set for R-134a (specialty)
• Refrigerant recovery machine for R-134a (specialty)
• Vacuum pump (specialty)
• Refrigerant scale (specialty)
• UV leak detection light (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• A/C compressor - Qty: 1
• A/C compressor clutch relay (optional) - Qty: 1
• A/C line O-ring set - Qty: 1
• ND-OIL 8 (PAG A/C compressor oil) - Qty: 1
• R-134a refrigerant - Qty: 2-3 cans (or equivalent by weight)
• Receiver/drier or condenser assembly (recommended if compressor failed internally) - Qty: 1
• Expansion valve (recommended if compressor failed internally) - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and install wheel chocks.
• Recover the refrigerant using an A/C recovery machine (a machine that pulls refrigerant into a sealed tank). Many DIYers have a shop recover it first.
• Disconnect the battery: use a 10mm socket to remove the negative terminal and isolate it.
• Raise the front safely with a floor jack and support with jack stands.
• Pro tip: Take photos before removing anything.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Recover refrigerant (must be done first)

• Connect the A/C manifold gauge set for R-134a (specialty) to the high/low service ports.
• Use the refrigerant recovery machine for R-134a (specialty) to recover refrigerant until the system is at 0 psi.
• Disconnect the gauges after recovery.

Step 2: Remove lower covers and gain access

• Use a trim clip remover and 10mm socket to remove the lower engine undercover/splash shield fasteners.
• Set clips/bolts aside in a tray.

Step 3: Remove the drive belt

• Use a serpentine belt tool or 14mm box wrench to rotate the belt tensioner and relieve belt tension.
• Slip the belt off the A/C compressor pulley, then remove the belt from the front of the engine.
• Pro tip: Sketch the belt routing first.

Step 4: Unplug the compressor electrical connector

• Press the lock tab and disconnect the compressor connector by hand.
• If stuck, use a pick set gently on the lock tab (don’t break it).

Step 5: Disconnect the A/C lines from the compressor

• Clean around the fittings with a dry rag so debris won’t fall inside.
• Use a 10mm socket to remove the line retaining bolt(s) at the compressor manifold.
• Carefully pull the lines straight off. Immediately cap/cover openings.
• Remove old O-rings using a pick set. Install new O-rings from the A/C line O-ring set.
• Lightly coat new O-rings with ND-OIL 8 (PAG A/C compressor oil) before assembly.
• Torque to 9 Nm (80 in-lbs) for the A/C line retaining bolt(s).

Step 6: Remove the compressor from the engine

• Support the compressor with one hand.
• Use a 12mm socket and socket extension set to remove the compressor mounting bolts.
• Lower and remove the compressor from underneath.
• Torque to 25 Nm (18 ft-lbs) for compressor mounting bolts during installation.

Step 7: Set the oil amount in the new compressor

• If the new compressor comes pre-filled, check included instructions and oil quantity.
• Drain the old compressor into a measuring container (rotate the hub by hand while draining).
• Add the same amount of ND-OIL 8 to the new compressor (unless your new unit instructions specify otherwise).
• Pro tip: Too much oil reduces cooling.

Step 8: Install the new compressor

• Position the compressor and hand-start mounting bolts.
• Use a 12mm socket to tighten, then use a 3/8" drive torque wrench: Torque to 25 Nm (18 ft-lbs).
• Reconnect A/C lines and tighten with a 10mm socket: Torque to 9 Nm (80 in-lbs).
• Reconnect the electrical connector until it clicks.

Step 9: Reinstall the drive belt and covers

• Route the belt correctly, then use a serpentine belt tool or 14mm box wrench to move the tensioner and slip the belt on.
• Double-check the belt is seated in every pulley groove.
• Reinstall the splash shield using a 10mm socket and trim clip remover.

Step 10: Evacuate (vacuum) the A/C system

• Connect the A/C manifold gauge set for R-134a (specialty).
• Connect the center hose to the vacuum pump (specialty).
• Run the vacuum pump for 30–45 minutes to remove air/moisture.
• Close valves and verify it holds vacuum for 10–15 minutes. If it doesn’t hold, you still have a leak.

Step 11: Recharge with the exact refrigerant weight

• Place the refrigerant on a refrigerant scale (specialty).
• Charge by weight to the under-hood label spec (commonly around 0.45 kg / 0.99 lb on this Corolla).
• Start the engine, A/C on MAX, blower high, and finish charging as directed by your manifold/recharge method.
• Pro tip: Charging “by pressure” is often wrong.

Step 12: Leak-check

• Use a UV leak detection light (specialty) to inspect all opened connections for signs of dye/oil.
• Verify vent temperature is cold and compressor cycles normally.

---

✅ After Repair

• Reconnect the battery negative terminal using a 10mm socket.
• Start the engine and confirm there are no belt noises or rubbing.
• With A/C running, confirm the radiator fans operate and air gets cold at idle.
• Recheck for leaks after a short drive, then again after 1–2 days.
• If the old compressor failed catastrophically (metal debris), plan to replace the receiver/drier and expansion valve and flush lines—otherwise the new compressor can fail quickly.

---
