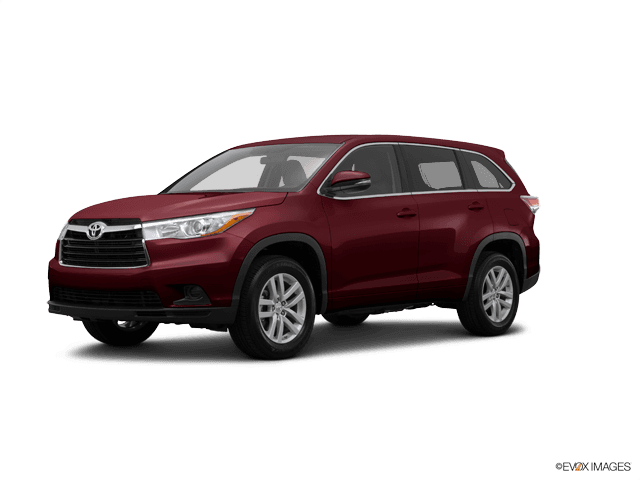

🔧 Highlander - A/C Compressor Replacement

The A/C compressor on your Highlander is the pump that moves refrigerant through the air conditioning system. Replacing it requires recovering the refrigerant, removing the drive belt and refrigerant lines, installing the new compressor, then evacuating and recharging the system by weight.

Difficulty Level: Advanced | Estimated Time: 3-5 hours

---

⚠️ Safety & Precautions

• ⚠️ Refrigerant must be recovered with an approved recovery machine before opening the A/C system. Do not vent refrigerant to the atmosphere.
• ⚠️ Refrigerant can cause frostbite and eye injury. Wear safety glasses and gloves.
• ⚠️ Disconnect the negative battery cable before unplugging the compressor electrical connector.
• ⚠️ Keep dirt and moisture out of open A/C lines. Cap the lines immediately after removal.
• ⚠️ If the old compressor failed internally, the condenser, receiver/drier, and expansion valve may need replacement and the system may need flushing.
• ⚠️ The system must be vacuumed and recharged with the exact refrigerant amount shown on the under-hood A/C label.

---

🔧 Required Tools

You'll need the following tools for this repair:

• A/C refrigerant recovery machine (specialty)
• A/C manifold gauge set for R-134a (specialty)
• Vacuum pump rated for automotive A/C (specialty)
• Refrigerant scale accurate to 0.1 oz (specialty)
• Serpentine belt tool (specialty)
• 10mm socket
• 12mm socket
• 14mm socket
• 10mm wrench
• Ratchet wrench
• 6-inch extension
• Torque wrench rated 5-80 ft-lbs
• Plastic line caps for A/C fittings
• Pick tool set
• Clean lint-free shop towels
• Floor jack rated 3-ton minimum
• Jack stands rated 3-ton minimum
• Wheel chocks
• Safety glasses
• Nitrile gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• A/C compressor - Qty: 1
• A/C compressor clutch assembly - Qty: Included if compressor is supplied complete
• A/C compressor O-ring seal kit - Qty: 1
• PAG compressor oil for R-134a system - Qty: As required by compressor instructions
• R-134a refrigerant - Qty: Charge by under-hood label weight
• Serpentine belt - Qty: 1 if worn, cracked, or contaminated
• A/C condenser with receiver/drier - Qty: 1 if compressor failed internally
• A/C expansion valve - Qty: 1 if compressor failed internally or debris is present

---

📋 Before You Begin

• Park your Highlander on level ground, set the parking brake, and let the engine cool completely.
• Write down the A/C refrigerant charge amount from the under-hood A/C label.
• Have the refrigerant professionally recovered before opening any A/C line.
• Compare the new compressor to the old one before installation. The pulley, connector, and mounting ears must match.
• Check whether the new compressor is pre-filled with oil. Too much or too little oil can damage the compressor.
• Use wheel chocks behind the rear wheels before lifting the front of the vehicle.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Recover the Refrigerant

• Use an A/C refrigerant recovery machine to remove the R-134a refrigerant from the system.
• Confirm both high-side and low-side gauges read 0 psi before loosening any A/C fitting.
• An A/C manifold gauge set connects to the high and low service ports so you can read system pressure safely.
• Never vent refrigerant into the air.

Step 2: Disconnect the Battery

• Use a 10mm wrench to loosen the negative battery cable clamp.
• Remove the negative cable and move it aside so it cannot touch the battery post.

Step 3: Raise and Support the Front

• Place wheel chocks behind the rear wheels.
• Use a floor jack rated 3-ton minimum to lift the front of your Highlander at the front center jacking point.
• Place jack stands rated 3-ton minimum under the front support points.
• Lower the vehicle gently onto the jack stands and shake it lightly to confirm it is stable.

Step 4: Remove the Lower Access Panels

• Use a 10mm socket and ratchet wrench to remove the lower engine splash shield fasteners.
• Use a trim removal tool if plastic clips are fitted.
• Set the splash shield and fasteners aside in order.

Step 5: Remove the Serpentine Belt from the Compressor Pulley

• Take a picture of the belt routing before removal.
• Use a serpentine belt tool on the belt tensioner to relieve belt tension.
• A serpentine belt tool is a long, thin wrench that gives extra reach and leverage on the belt tensioner.
• Slide the belt off the A/C compressor pulley.
• Slowly release the tensioner with the serpentine belt tool.
• If the belt is cracked, glazed, noisy, or oil-soaked, replace it.

Step 6: Disconnect the Compressor Electrical Connector

• Use your fingers or a small flathead screwdriver to release the compressor connector lock.
• Pull the connector straight off the compressor.
• Do not pull on the wires.

Step 7: Remove the Refrigerant Line Block from the Compressor

• Place clean lint-free shop towels under the compressor line connection.
• Use a 10mm socket and ratchet wrench to remove the refrigerant line block retaining bolt.
• Gently wiggle the line block straight away from the compressor.
• Use plastic line caps for A/C fittings to cap the open compressor ports and line ends immediately.
• Use a pick tool set to remove the old O-rings from the line fittings.
• Do not scratch the aluminum sealing surfaces.

Step 8: Remove the A/C Compressor Mounting Bolts

• Support the compressor with one hand.
• Use a 12mm or 14mm socket, ratchet wrench, and 6-inch extension to remove the compressor mounting bolts.
• Lower the compressor carefully from the engine bay.
• Keep the old compressor level if you plan to measure the oil that drains from it.

Step 9: Prepare the New Compressor

• Drain and measure the oil from the old compressor into a clean measuring container if required by the compressor instructions.
• Check the new compressor oil amount. Add or remove PAG compressor oil for R-134a system as instructed by the compressor manufacturer.
• Turn the new compressor hub by hand 10 times to distribute the oil.
• Install new O-rings from the A/C compressor O-ring seal kit onto the refrigerant line fittings.
• Lightly coat the new O-rings with clean PAG compressor oil.

Step 10: Install the New Compressor

• Position the new A/C compressor onto the engine bracket by hand.
• Start all mounting bolts by hand first to avoid cross-threading.
• Use a 12mm or 14mm socket and torque wrench to tighten the compressor mounting bolts evenly.
• Torque to Toyota service specification for your compressor mounting bolts.
• Do not overtighten aluminum bracket bolts.

Step 11: Reconnect the Refrigerant Lines

• Remove the plastic line caps for A/C fittings only when ready to connect the lines.
• Seat the refrigerant line block squarely onto the compressor.
• Use a 10mm socket to install the retaining bolt by hand first.
• Use a torque wrench to tighten the retaining bolt.
• Torque to Toyota service specification for the compressor line retaining bolt.

Step 12: Reconnect the Electrical Connector

• Push the compressor electrical connector onto the compressor until it clicks.
• Gently tug the connector body to confirm it is locked.

Step 13: Reinstall the Serpentine Belt

• Route the serpentine belt using the photo you took earlier.
• Use the serpentine belt tool to rotate the belt tensioner.
• Slip the belt over the final pulley and slowly release the tensioner.
• Check every pulley groove with a flashlight to make sure the belt is fully seated.

Step 14: Reinstall Lower Access Panels

• Raise the splash shield into position.
• Use a 10mm socket and ratchet wrench to reinstall the splash shield fasteners.
• Tighten the plastic clips and small bolts snugly only.

Step 15: Lower the Vehicle and Reconnect Battery

• Use the floor jack rated 3-ton minimum to lift the front slightly off the jack stands.
• Remove the jack stands rated 3-ton minimum.
• Lower the vehicle to the ground.
• Use a 10mm wrench to reconnect the negative battery cable.

Step 16: Evacuate the A/C System

• Connect the A/C manifold gauge set for R-134a to the high-side and low-side service ports.
• Connect the vacuum pump rated for automotive A/C to the center hose of the manifold gauge set.
• Run the vacuum pump for at least 30-45 minutes.
• Close the manifold valves and watch the gauges for at least 10 minutes.
• If vacuum drops, there is a leak that must be fixed before charging.

Step 17: Recharge the System by Weight

• Place the R-134a refrigerant cylinder on a refrigerant scale accurate to 0.1 oz.
• Charge the system with the exact amount listed on the under-hood A/C label.
• Use the A/C manifold gauge set for R-134a to charge through the low side as required by your charging equipment instructions.
• Do not guess the charge amount by gauge pressure alone.
• Correct refrigerant weight is critical.

---

✅ After Repair

• Start the engine and turn A/C to MAX cool with the blower on high.
• Confirm the compressor engages and the vents blow cold air.
• Use the A/C manifold gauge set for R-134a to verify system pressures are normal for the outside temperature.
• Use an electronic leak detector or UV leak check if available.
• Listen for belt squeal, rattling, or abnormal compressor noise.
• Recheck the compressor line fittings for oily residue after a short road test.

---

💰 DIY vs Shop Cost

Shop Cost: $900-$1,700 parts + labor

DIY Cost: $350-$900 parts only, plus A/C recovery/recharge equipment or service

You Save: $300-$700 by doing the mechanical replacement yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 3-5 hours including recovery, evacuation, and recharge.

---
