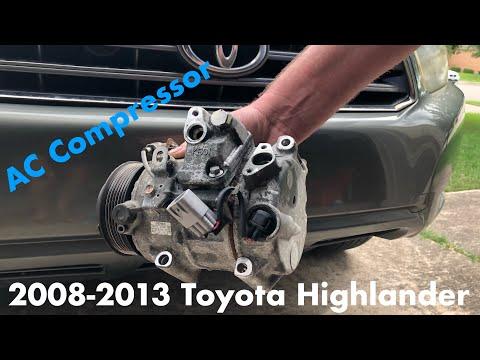

🔧 Highlander - A/C Compressor Replacement

On your Highlander, the A/C compressor is belt-driven and mounted low on the engine. Replacing it requires safely recovering the refrigerant, removing the drive belt and A/C lines, swapping the compressor (and O-rings), then vacuuming and recharging the system so it cools properly.

Difficulty Level: Advanced | Estimated Time: 3-6 hours

---

⚠️ Safety & Precautions

• ⚠️ Refrigerant is under high pressure—do not loosen A/C lines until the system is professionally recovered.
• ⚠️ Wear safety glasses and gloves; liquid refrigerant can cause frostbite burns.
• ⚠️ Keep hands/clothing clear of the belt and pulleys when checking operation.
• ⚠️ Support the vehicle with jack stands before working underneath.
• ⚠️ If the old compressor failed internally (metal debris), more parts must be replaced/cleaned or the new compressor can fail quickly.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Nitrile gloves
• 10mm socket
• 12mm socket
• 14mm socket
• 3/8" drive ratchet
• 3/8" drive torque wrench
• Serpentine belt tool (specialty)
• Trim clip remover
• Flat-blade screwdriver
• Catch pan
• A/C manifold gauge set for R-134a (specialty)
• Vacuum pump (specialty)
• Refrigerant recovery machine (specialty)
• Refrigerant scale (specialty)
• PAG oil measuring cup (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• A/C compressor - Qty: 1
• A/C compressor O-ring set (A/C line O-rings) - Qty: 1
• PAG compressor oil (ND-OIL 8 equivalent) - Qty: 1
• R-134a refrigerant - Qty: 1 (enough to meet factory charge)
• Receiver/drier or condenser/receiver assembly - Qty: 1 If compressor failed internally
• Expansion valve - Qty: 1 If metal contamination found

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Have the A/C refrigerant recovered with an approved recovery machine before you disconnect any A/C lines.
• Let the engine cool fully; the compressor sits near hot components.
• Plan your recharge method: you must vacuum and recharge by weight (using a scale) for correct cooling.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Recover the refrigerant (required)

• Connect the A/C manifold gauge set for R-134a (specialty) to the high and low service ports.
• Use a refrigerant recovery machine (specialty) to fully recover the refrigerant from your Highlander.
• Never vent refrigerant to air.

Step 2: Raise the front of the vehicle

• Use a floor jack (rated 3-ton minimum) to lift the front.
• Set the vehicle securely on jack stands (rated 3-ton minimum) and keep wheel chocks in place.

Step 3: Remove the lower splash shield

• Use a trim clip remover and 10mm socket to remove the clips/bolts holding the lower engine cover.
• Use a flat-blade screwdriver to help pop stubborn clips without breaking them.

Step 4: Remove the serpentine belt from the compressor

• Use a serpentine belt tool (specialty) (or appropriate socket on the tensioner) to rotate the belt tensioner and slip the belt off the A/C compressor pulley.
• Take a photo of belt routing.

Step 5: Disconnect the A/C lines at the compressor

• Place a catch pan underneath to catch any oil that may drip out.
• Use a 10mm socket to remove the A/C line retaining bolt(s) at the compressor manifold block.
• Carefully wiggle the lines free; do not pry hard on the aluminum tubes.
• Remove and discard the old O-rings.
• Immediately cover/open ports to keep dirt and moisture out.
• Torque to 9.8 Nm (87 in-lbs) for the A/C line retaining bolt(s).

Step 6: Unbolt and remove the A/C compressor

• Support the compressor by hand while removing bolts.
• Use a 12mm socket and 3/8" drive ratchet to remove the compressor mounting bolts.
• Lower and remove the compressor from underneath.
• Torque to 25 Nm (18 ft-lbs) for the compressor mounting bolts.

Step 7: Prepare the new compressor (oil balancing)

• Measure and adjust oil so the system has the correct amount; use a PAG oil measuring cup (specialty).
• If you’re only replacing the compressor (no other A/C parts), match the oil amount drained from the old compressor (what came out) and add that same amount to the new one using PAG compressor oil (ND-OIL 8 equivalent).
• Slowly turn the compressor hub by hand a few rotations to distribute oil.
• Too much oil reduces cooling.

Step 8: Install the new compressor

• Position the compressor and hand-start all bolts to avoid cross-threading.
• Use a 12mm socket to install bolts, then tighten evenly.
• Use a 3/8" drive torque wrench to finish tightening.
• Torque to 25 Nm (18 ft-lbs) for the compressor mounting bolts.

Step 9: Install new O-rings and reconnect the A/C lines

• Install new O-rings from the A/C compressor O-ring set (A/C line O-rings).
• Lightly lubricate each O-ring with clean PAG compressor oil (ND-OIL 8 equivalent) so it doesn’t tear.
• Push the line block in straight, then install the retaining bolt(s) with a 10mm socket.
• Torque to 9.8 Nm (87 in-lbs) for the A/C line retaining bolt(s).

Step 10: Reinstall the serpentine belt

• Route the belt correctly, then use the serpentine belt tool (specialty) to rotate the tensioner and slip the belt back onto the compressor pulley.
• Double-check the belt is seated in every pulley groove.

Step 11: Reinstall the splash shield and lower the vehicle

• Use a trim clip remover and 10mm socket to reinstall the lower engine cover hardware.
• Raise slightly with the floor jack (rated 3-ton minimum), remove jack stands (rated 3-ton minimum), and lower the vehicle.

Step 12: Vacuum test and recharge the A/C system

• Connect the A/C manifold gauge set for R-134a (specialty) and vacuum pump (specialty).
• Pull vacuum for at least 30–45 minutes, then close valves and verify it holds vacuum (leak check).
• Recharge using a refrigerant scale (specialty) and R-134a refrigerant by factory weight (use the under-hood A/C label for the exact charge amount).
• Charging “by pressure” causes poor cooling.

---

✅ After Repair

• Start your Highlander and set A/C to MAX, blower high, and verify the compressor engages and the air gets cold.
• Use the A/C manifold gauge set for R-134a (specialty) to confirm pressures look normal for ambient temperature.
• Check for leaks at the compressor line connection area (listen/inspect for oil residue).
• If cooling is weak or the clutch cycles rapidly, stop and re-check charge amount and for leaks.

---

💰 DIY vs Shop Cost

Shop Cost: $1,200-$2,200 (parts + labor)

DIY Cost: $350-$900 (parts only)

You Save: $850-$1,300 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2.5-4.0 hours.

---
