🔧 Corolla - A/C Compressor Replacement

On your Corolla, replacing the A/C compressor is a mechanical job plus an A/C system service job. The compressor sits low on the engine and is driven by the serpentine belt; it must be removed and reinstalled with new sealing O-rings, correct oil amount, and then the system must be vacuum-evacuated and recharged.

Difficulty Level: Advanced | Estimated Time: 3-6 hours

---

⚠️ Safety & Precautions

• ⚠️ Refrigerant is under high pressure—do not open A/C lines until refrigerant is properly recovered.
• ⚠️ Use approved A/C recovery equipment or have a shop recover/recharge; venting refrigerant is unsafe and illegal.
• ⚠️ Keep hands/tools clear of the belt drive and cooling fans.
• ⚠️ Wear eye protection; refrigerant/oil can cause frostbite and eye injury.
• Disconnect the battery negative cable before unplugging the compressor connector.
• Replace every disturbed A/C O-ring and lubricate with the correct PAG oil before assembly.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Metric socket set 8mm-19mm
• 3/8" drive ratchet
• 3/8" drive torque wrench (10-100 ft-lbs range)
• 1/4" drive torque wrench (50-200 in-lbs range)
• Extensions set (3", 6", 12")
• Metric combination wrench set 10mm-19mm
• Trim clip remover tool
• Flat-blade screwdriver
• Fender cover
• Drain pan
• Shop rags
• A/C manifold gauge set for R-134a (specialty)
• Vacuum pump (specialty)
• Refrigerant recovery machine (specialty)
• Refrigerant scale (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• A/C compressor - Qty: 1
• A/C compressor manifold O-ring set - Qty: 1
• PAG A/C oil (Toyota ND-OIL 8 equivalent) - Qty: 1
• R-134a refrigerant - Qty: 1 (system charge by weight)
• Receiver/drier (if serviced separately on your setup) - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Have the refrigerant recovered first using a recovery machine, or schedule a shop to recover it before you start turning wrenches.
• Let the engine cool fully; the compressor sits near hot components.
• Disconnect the battery negative terminal using a 10mm socket.
• Tip: Take photos of routing and connectors.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Recover the refrigerant (required)

• Connect the A/C manifold gauge set for R-134a (specialty) to the high and low service ports.
• Use a refrigerant recovery machine (specialty) to recover the refrigerant completely until the system is at zero pressure.
• If you don’t have recovery equipment, stop here and have a shop recover it before continuing.

Step 2: Disconnect battery and raise the front of the car

• Disconnect the negative battery cable using a 10mm socket.
• Lift the front with a floor jack (rated 3-ton minimum) and support it with jack stands (rated 3-ton minimum).
• Remove the RH front lower splash shield/under cover fasteners using a trim clip remover tool and 10mm socket.

Step 3: Remove the serpentine belt from the compressor

• Locate the belt tensioner.
• Use a 14mm socket and 3/8" drive ratchet to rotate the tensioner and relieve belt tension.
• Slip the belt off the A/C compressor pulley, then slowly release the tensioner.
• Tip: Sketch belt routing before removal.

Step 4: Unplug the compressor electrical connector

• Press the lock tab and unplug the compressor connector by hand.
• If it’s stuck, use a flat-blade screwdriver gently to release the tab.

Step 5: Disconnect the A/C lines from the compressor

• Place a drain pan under the compressor and have shop rags ready (a small amount of oil may drip).
• Remove the compressor line/manifold retaining bolt(s) using a 10mm socket.
• Pull the manifold straight off the compressor.
• Remove and discard the old O-rings. Install new O-rings lubricated with PAG A/C oil (Toyota ND-OIL 8 equivalent).
• Reinstall line/manifold bolt(s) and Torque to 9 N·m (80 in-lbs).

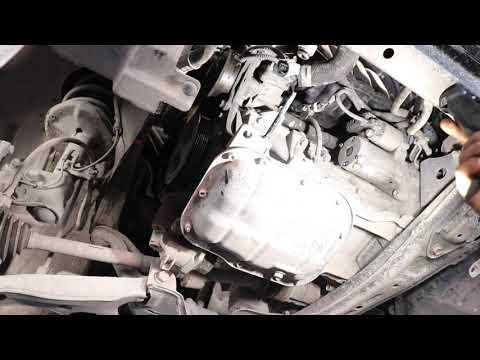

Step 6: Remove the A/C compressor

• Support the compressor by hand as you remove the mounting bolts.
• Use a 12mm socket with extensions set (3", 6", 12") as needed to remove the compressor mounting bolts.
• Lower and remove the compressor from underneath.
• Reinstall the mounting bolts for the new compressor and Torque to 25 N·m (18 ft-lbs).

Step 7: Set the correct compressor oil amount

• Pour the oil from the old compressor into a measuring container over a drain pan.
• Add the same amount of fresh PAG A/C oil (Toyota ND-OIL 8 equivalent) into the new compressor (unless the new compressor instructions specify otherwise).
• Rotate the compressor hub by hand a few turns to distribute oil evenly.
• Tip: Too much oil reduces cooling.

Step 8: Reinstall belt and shields

• Route the belt correctly and use a 14mm socket and 3/8" drive ratchet to rotate the tensioner.
• Slip the belt fully onto the compressor pulley, then release the tensioner slowly.
• Reinstall the under cover/splash shield using a 10mm socket and trim clip remover tool for clips.

Step 9: Evacuate and recharge the A/C system

• Reconnect the battery negative cable using a 10mm socket.
• Connect the A/C manifold gauge set for R-134a (specialty) and pull a deep vacuum using a vacuum pump (specialty).
• Vacuum-hold test: close valves and confirm it holds vacuum (no leaks).
• Recharge by weight using a refrigerant scale (specialty) with R-134a refrigerant.
• Charge amount for your Corolla is typically about 0.45 kg (0.99 lb) of R-134a; verify the exact spec on the under-hood A/C label and charge to that number.

---

✅ After Repair

• Start the engine and set A/C to MAX with recirculation; confirm the compressor cycles and the center vents blow cold.
• Check for refrigerant/oil leaks at the compressor manifold connection.
• Listen for belt squeal or grinding noises; shut down immediately if heard.
• If cooling is weak, pressures are abnormal, or the vacuum won’t hold, the system likely has a leak that must be fixed before recharge.

---

💰 DIY vs Shop Cost

Shop Cost: $900-$1,800 (parts + labor)

DIY Cost: $250-$700 (parts only, not counting specialty A/C equipment)

You Save: $650-$1,100 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 3-5 hours.

---
