🔧 Camry - A/C Compressor Replacement

You’ll be removing the old A/C compressor from your Camry, installing a new one with the correct oil, and then having the system properly evacuated and recharged. This job is mostly mechanical, but the refrigerant work must be done with professional A/C equipment.

Difficulty Level: Advanced | Estimated Time: 4-6 hours (plus shop time for A/C recharge)

---

⚠️ Safety & Precautions

• ⚠️ Never release A/C refrigerant (R134a) into the air; it must be recovered with proper A/C equipment at a shop.
• ⚠️ Refrigerant can cause severe frostbite and eye injury; avoid opening any A/C lines until the system is professionally evacuated.
• ⚠️ Disconnect the negative battery cable before working near the serpentine belt and compressor electrical connector.
• ⚠️ Support the car securely on jack stands; never work under a vehicle supported only by a jack.
• ⚠️ Keep hands and tools away from the belt and pulleys when rotating the engine manually.
• ⚠️ Wear safety glasses and gloves; A/C oil and dirt can irritate skin and eyes.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 🛠️ Floor jack (rated 3-ton minimum)
• 🛠️ Jack stands (rated 3-ton minimum)
• 🛠️ Wheel chocks
• 🛠️ 10mm socket
• 🛠️ 12mm socket
• 🛠️ 14mm socket
• 🛠️ 3/8" drive ratchet
• 🛠️ 3/8" drive extension (3"-6")
• 🛠️ 1/2" drive ratchet
• 🛠️ 1/2" drive torque wrench (up to 100 ft-lbs)
• 🛠️ 3/8" drive torque wrench (up to 30 ft-lbs)
• 🛠️ Serpentine belt tool or long-handled 14mm wrench
• 🛠️ Flathead screwdriver (medium)
• 🛠️ Trim clip removal tool
• 🛠️ Needle-nose pliers
• 🛠️ Pick tool (small hook type)
• 🛠️ Drain pan (for any oil drips)
• 🛠️ Shop rags
• 🛠️ Safety glasses
• 🛠️ Mechanic gloves
• 🛠️ UV-safe flashlight
• 🛠️ OBD2 scan tool (basic)
• 🛠️ Manifold gauge set for R134a (specialty)
• 🛠️ Vacuum pump for A/C systems (specialty)
• 🛠️ Refrigerant recovery/recycling machine (specialty, usually shop-only)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 🔩 A/C compressor (pre-filled or compatible with R134a) - Qty: 1
• 🔩 A/C compressor mounting bolt set (if originals are corroded) - Qty: 1 set
• 🔩 A/C compressor clutch connector pigtail - Qty: 1 (only if your connector is damaged)
• 🔩 A/C O-ring kit (high and low side compressor fittings) - Qty: 1 set
• 🔩 PAG A/C compressor oil (Toyota-compatible spec) - Qty: as required by new compressor
• 🔩 Serpentine drive belt - Qty: 1 (recommended if worn or cracked)
• 🔩 R134a refrigerant - Qty: correct system charge amount
• 🔩 A/C system dye (R134a compatible) - Qty: 1 (optional for future leak checks)
• 🔩 Brake cleaner spray - Qty: 1 (for cleaning oily residue)

---

📋 Before You Begin

• Park your Camry on a flat surface, engage the parking brake, and place wheel chocks behind the rear wheels.
• Have a licensed A/C shop recover the refrigerant from the system before you disconnect any A/C lines.
• After refrigerant recovery, disconnect the negative battery terminal using a 10mm socket.
• Let the engine cool completely before working near the belt and compressor.
• Plan ahead: you will need a shop (or proper A/C equipment) to evacuate and recharge the system after installing the new compressor.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise and support the front of the car

• Use the floor jack (rated 3-ton minimum) to lift the front of the car at the front center jacking point behind the radiator support.
• Place jack stands (rated 3-ton minimum) under the factory pinch welds on both sides and lower the car gently onto them.
• Leave the floor jack lightly touching the jacking point as a backup.
• Always shake the car slightly to confirm stability.

Step 2: Remove lower engine splash shield

• From underneath, use a 10mm socket and 3/8" drive ratchet to remove the bolts holding the plastic splash shield.
• Use the trim clip removal tool to pop out any plastic clips.
• Lower the splash shield and set it aside.

Step 3: Relieve serpentine belt tension and remove belt from compressor

• From the top, locate the belt tensioner (spring-loaded pulley assembly).
• Place a 14mm socket on the tensioner bolt and use a serpentine belt tool or long-handled 14mm wrench to rotate the tensioner and relieve tension.
• While holding tension off, slide the belt off the A/C compressor pulley only, then gently release the tensioner.
• You can leave the belt looped around the other pulleys if you’re not replacing it.
• Take a photo of belt routing before removal.

Step 4: Disconnect A/C compressor electrical connector

• Locate the electrical connector on the compressor body (for the clutch and control).
• Press the tab with your fingers or use a pick tool gently to lift the locking tab.
• Pull the connector straight off; do not yank on the wires.
• If the connector is dirty, wipe it with a shop rag.

Step 5: Disconnect A/C lines from the compressor

• Confirm that refrigerant has been professionally recovered before this step.
• Place a drain pan under the compressor area to catch any oil drips.
• Use a 12mm socket and 3/8" drive ratchet to remove the bolts securing the suction and discharge lines to the compressor.
• Gently pull the lines away; slight twisting by hand can help break the seal.
• Immediately plug or cap the open lines and compressor ports with clean caps or tape to keep moisture and dirt out.
• Do not bend or stress the aluminum lines.

Step 6: Remove the A/C compressor mounting bolts

• Identify the compressor mounting bolts (usually 4) securing it to the engine block.
• Use a 14mm socket, 3/8" drive ratchet, and extension if needed to remove each bolt.
• Support the compressor with one hand as you remove the last bolt so it does not drop.
• Lower the compressor out from the bottom of the engine bay.
• Keep track of bolt locations and lengths.

Step 7: Prepare the new compressor (oil and O-rings)

• A/C compressor oil (PAG) is a special lubricant for A/C compressors.
• Check the new compressor instructions for the required oil amount; some come pre-filled, others do not.
• If oil must be added or adjusted, remove the shipping plugs and drain any shipping oil into a measuring container.
• Add the correct amount of PAG A/C compressor oil (Toyota-compatible spec) as specified by the compressor manufacturer.
• Install new A/C O-rings on the suction and discharge line fittings: lightly coat each new O-ring with fresh PAG oil using a clean finger.
• Never reuse old A/C O-rings.

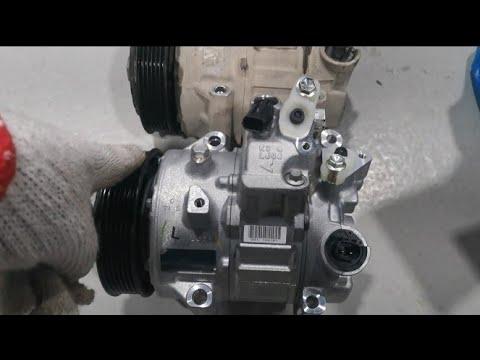

Step 8: Install the new compressor

• Position the new compressor in place from below, aligning it with the mounting holes.
• Install the mounting bolts by hand to avoid cross-threading.
• Use a 14mm socket and 3/8" drive torque wrench to tighten the bolts evenly.
• Torque to factory specification per service manual (do not overtighten).
• Tighten each bolt a little at a time in sequence.

Step 9: Reconnect A/C lines to the compressor

• Remove the temporary caps or tape from the compressor ports and lines.
• Carefully align the suction and discharge lines with the correct ports on the compressor.
• Install the line retaining bolts by hand first.
• Use a 12mm socket and 3/8" drive torque wrench to tighten the bolts.
• Torque to factory specification per service manual.
• Wipe away any spilled oil with a shop rag and a little brake cleaner spray.

Step 10: Reconnect the electrical connector

• Plug the compressor electrical connector back in until you hear or feel a click.
• Make sure the wiring harness is routed away from any moving parts or hot exhaust components.

Step 11: Reinstall or replace the serpentine belt

• If you are installing a new belt, route it according to the under-hood belt routing diagram or the photo you took earlier.
• Use the serpentine belt tool or long-handled 14mm wrench on the tensioner to relieve tension again.
• Slide the belt over the A/C compressor pulley last, then slowly release the tensioner.
• Visually confirm the belt is seated correctly in all pulley grooves.
• Misrouted belts can cause noise or no charging.

Step 12: Reinstall the splash shield and lower the car

• Lift the plastic splash shield into place.
• Install all bolts with a 10mm socket and any clips using the trim clip removal tool to push them in fully.
• Use the floor jack to raise the car slightly, remove the jack stands, and lower the car to the ground.

Step 13: Evacuate and recharge the A/C system

• This step requires a refrigerant recovery/recycling machine, vacuum pump, and manifold gauge set for R134a.
• If you do not have professional A/C equipment, take the car to an A/C shop for this step.
• At the shop, have them:
  • Pull a deep vacuum on the system to remove air and moisture.
  • Confirm the system holds vacuum (no major leaks).
  • Charge with the specified amount of R134a refrigerant and add any required oil and dye.
• Always follow the exact refrigerant charge amount on the under-hood label.

Step 14: Reconnect battery and initial test

• Reconnect the negative battery cable using a 10mm socket.
• Torque to factory specification per service manual (snug but not over-tight).
• Start the engine and allow it to idle.
• Turn the A/C to MAX COOL with the blower on high and recirculation ON.
• Listen for unusual noises from the compressor area.

Step 15: Check A/C performance and for leaks

• Let the system run for 5–10 minutes.
• Check that the air from the center vents is cold and steady.
• Use a UV-safe flashlight if dye was added to inspect around the compressor fittings and lines for leaks.
• If you have an OBD2 scan tool, scan for any stored A/C-related codes and clear them if the repair is successful.

---

✅ After Repair

• Verify the A/C cycles on and off smoothly with no grinding, squealing, or rattling noises from the compressor area.
• Check for belt noise; a chirp or squeal may indicate a misrouted or loose belt.
• Inspect the compressor and line connections after a day or two of driving for any signs of oil or dye leaks.
• If the A/C is not cooling well, have the shop recheck the refrigerant charge and system pressures with their gauges.

---

💰 DIY vs Shop Cost

Shop Cost: $900-$1,300 (parts + labor + recharge)

DIY Cost: $350-$600 (parts) + $80-$150 (shop evac/recharge)

You Save: $300-$700 by doing the mechanical work yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 3-4 hours plus A/C machine time.

---
