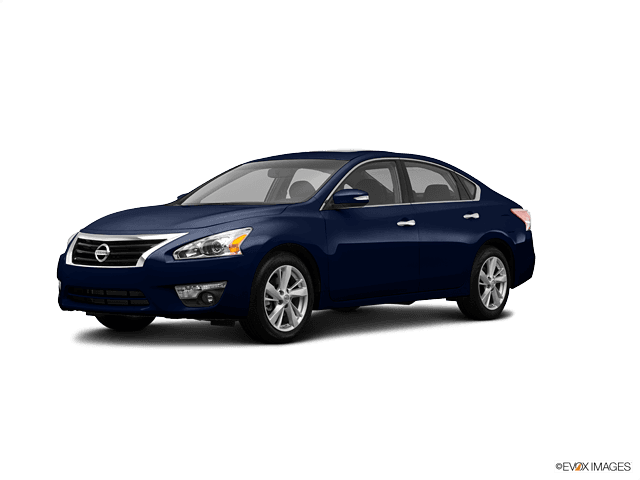

🔧 Altima - A/C Compressor Replacement

Replacing your A/C compressor on your Altima involves safely recovering the refrigerant, removing the drive belt and compressor, then installing the new compressor and evacuating/recharging the system. Because torque specs and oil/refrigerant amounts must be exact for your specific A/C setup, I need 2 quick details before I give the torque-accurate step-by-step.

Difficulty Level: Advanced | Estimated Time: 3-6 hours

Quick questions (reply with just 1-2 lines):

• ❓ Is the A/C system currently empty, or will you have a shop recover the refrigerant first?
• ❓ Are you replacing only the compressor, or also the receiver/drier (often part of the condenser on many Nissans) and the expansion valve?

---

⚠️ Safety & Precautions

• ⚠️ Refrigerant must be recovered with approved equipment—do not vent R-134a to the air.
• ⚠️ Wear eye protection; liquid refrigerant can cause severe frostbite.
• ⚠️ Keep hands/tools clear of the belt path; the belt tensioner is spring-loaded.
• ⚠️ If the compressor failed internally, metal debris can contaminate the system and quickly ruin the new compressor.
• ⚠️ Battery disconnect is recommended before unplugging the compressor clutch/control connector.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 3/8" drive ratchet
• 1/2" drive ratchet
• Socket set 8mm-19mm
• Serpentine belt tool 14mm
• Torque wrench 10-100 ft-lbs
• Trim clip removal tool
• Flathead screwdriver
• Line/flare-nut wrench set 12mm-17mm
• A/C manifold gauge set for R-134a (specialty)
• Vacuum pump (specialty)
• Refrigerant scale (specialty)
• Refrigerant recovery machine (specialty)
• UV dye and UV light (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• A/C compressor assembly - Qty: 1
• A/C compressor O-ring kit - Qty: 1
• Receiver/drier - Qty: 1
• Expansion valve - Qty: 1
• Serpentine drive belt - Qty: 1
• R-134a refrigerant - Qty: 1
• PAG A/C oil (Nissan-compatible) - Qty: 1
• A/C system flush solvent - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Let the engine cool completely so you don’t work near hot exhaust parts.
• Have the refrigerant professionally recovered if the system still has pressure.
• Disconnect the negative battery terminal using a 10mm socket.
• If you’ll be flushing the system: plan to keep the A/C lines capped to prevent moisture entry (moisture turns into acid inside the system).

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Confirm refrigerant is safely recovered

• Use an A/C manifold gauge set for R-134a (specialty) to verify system pressure is at/near zero before opening any lines.
• If pressure is present, stop and use a refrigerant recovery machine (specialty) (or a shop) to recover the refrigerant.

Step 2: Raise the front and remove splash shielding

• Lift the front using a floor jack (rated 3-ton minimum) and support with jack stands (rated 3-ton minimum).
• Remove the lower engine undercover/splash shield using a trim clip removal tool and socket set 8mm-19mm.

Step 3: Remove the drive belt from the A/C compressor

• Relieve belt tension using a serpentine belt tool 14mm, then slip the belt off the A/C compressor pulley.
• Tip: Take a photo of belt routing.

Step 4: Disconnect the compressor electrical connector

• Unplug the compressor connector by hand; if needed, use a flathead screwdriver gently on the lock tab.

Step 5: Remove the A/C suction and discharge lines from the compressor

• Use line/flare-nut wrench set 12mm-17mm to loosen the line fasteners to reduce rounding.
• Remove the lines, then immediately cap/cover the open ends to keep dirt and moisture out.
• Remove and discard old O-rings; install new ones during reassembly.

Step 6: Unbolt and remove the compressor

• Support the compressor with one hand and remove mounting bolts using a socket set 8mm-19mm and ratchet.
• Lower and remove the compressor from below.

Step 7: Prep the new compressor (oil balancing)

• Drain and measure oil from the old compressor into a clean container.
• Add the same amount of correct PAG A/C oil (Nissan-compatible) into the new compressor unless Nissan’s procedure calls for a different total oil amount based on which components are replaced.
• Rotate the compressor hub by hand several turns to distribute oil (never power it dry).

Step 8: Install the new compressor and reconnect lines

• Install the compressor and start bolts by hand, then tighten using a torque wrench 10-100 ft-lbs.
• Install new lubricated O-rings (light coat of PAG A/C oil (Nissan-compatible)) and reconnect the suction/discharge lines using line/flare-nut wrench set 12mm-17mm.
• Reconnect the electrical connector by hand until it clicks.
• Torque to Nissan factory specification (I’ll provide exact Nm/ft-lbs after your 2 answers).

Step 9: Reinstall belt and shields

• Reinstall the belt using a serpentine belt tool 14mm.
• Reinstall the splash shield using a trim clip removal tool and socket set 8mm-19mm.

Step 10: Evacuate and recharge

• Pull vacuum using a vacuum pump (specialty) and A/C manifold gauge set for R-134a (specialty) to remove air/moisture.
• Verify it holds vacuum (leak check).
• Recharge by weight using a refrigerant scale (specialty) and the correct amount of R-134a refrigerant.
• Refrigerant charge amount must match the under-hood label (I’ll confirm the correct spec once you answer the 2 questions above).

---

✅ After Repair

• Reconnect the battery using a 10mm socket.
• Start the engine and set A/C to MAX; confirm the compressor engages and vents get cold.
• Check for leaks at the compressor line connections using UV dye and UV light (specialty) if dye is used.
• If cooling is weak or pressures are abnormal, stop and re-check charge amount and leaks.

---

💰 DIY vs Shop Cost

Shop Cost: $1,200-$2,200 (parts + labor)

DIY Cost: $350-$950 (parts only)

You Save: $850-$1,250 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 3-5 hours.

---
