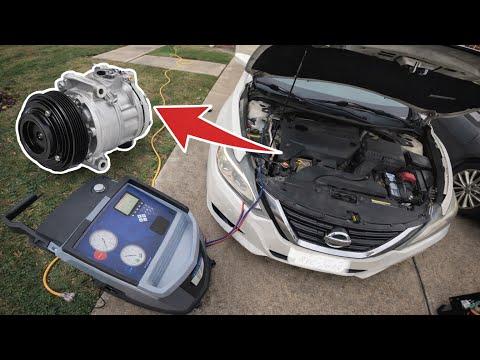

🔧 Altima - A/C Compressor Replacement

Replacing the A/C compressor on your Altima means recovering the refrigerant, removing the drive belt, disconnecting the A/C lines and electrical connector, then installing a new compressor with fresh O-rings and the correct amount of refrigerant oil.

This repair involves pressurized refrigerant, so the refrigerant must be recovered with proper A/C service equipment before any lines are opened.

Difficulty Level: Advanced | Estimated Time: 3-5 hours

---

⚠️ Safety & Precautions

• ⚠️ Do not vent refrigerant into the air. The A/C system must be professionally recovered before opening any A/C line.
• ⚠️ Wear safety glasses and gloves. Refrigerant can cause instant frostbite if it contacts skin or eyes.
• ⚠️ Disconnect the negative battery cable before unplugging the compressor electrical connector.
• ⚠️ Support your Altima with jack stands before working underneath. Never rely on a floor jack alone.
• ⚠️ The A/C system must be vacuum-tested and recharged by weight after repair. Guessing the charge can damage the compressor.
• ⚠️ Replace the receiver/drier or condenser assembly if the compressor failed internally or sent metal debris through the system.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 12mm socket
• 14mm socket
• 3/8-inch ratchet
• 3/8-inch drive extension set
• Serpentine belt tool (specialty)
• Torque wrench rated 5-80 ft-lbs
• Trim clip removal tool
• Flathead screwdriver
• A/C manifold gauge set for R-134a (specialty)
• A/C refrigerant recovery machine (specialty)
• A/C vacuum pump (specialty)
• Refrigerant scale (specialty)
• UV leak detection light (specialty)
• Floor jack rated 2-ton minimum
• Jack stands rated 2-ton minimum
• Wheel chocks
• Nitrile gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• A/C compressor - Qty: 1
• A/C compressor O-ring seal kit - Qty: 1
• PAG A/C compressor oil for R-134a systems - Qty: As required
• R-134a refrigerant - Qty: Recharge by under-hood label specification
• Serpentine drive belt - Qty: 1
• A/C condenser with receiver/drier - Qty: 1 if compressor failed internally
• A/C line flush solvent - Qty: 1 if debris is present

---

📋 Before You Begin

• 🚗 Park your Altima on level ground, set the parking brake, and chock the rear wheels.
• ❄️ Have the refrigerant recovered first using an A/C refrigerant recovery machine. Recovery means safely removing and storing refrigerant from the system.
• 🔋 Use a 10mm socket to disconnect the negative battery cable before unplugging the compressor.
• 🧴 Identify whether the old compressor failed mechanically. If the oil has metal flakes, the condenser/receiver-drier should be replaced and the lines should be flushed.
• 📌 The refrigerant amount must be charged by weight using the under-hood A/C label, not by pressure alone.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Recover the Refrigerant

• Connect the A/C manifold gauge set for R-134a to the high-side and low-side service ports.
• Use the A/C refrigerant recovery machine to fully recover the refrigerant from the system.
• Confirm both gauges read 0 psi before opening any A/C line.
• Never loosen A/C lines under pressure.

Step 2: Disconnect the Battery

• Use a 10mm socket to loosen the negative battery terminal clamp.
• Move the cable aside so it cannot spring back onto the battery post.

Step 3: Raise and Support the Front of the Vehicle

• Place wheel chocks behind the rear wheels.
• Use a floor jack rated 2-ton minimum to lift the front of your Altima at the front center jacking point.
• Set the vehicle securely on jack stands rated 2-ton minimum.
• Gently shake the vehicle by hand to confirm it is stable before working underneath.

Step 4: Remove the Lower Splash Shield

• Use a trim clip removal tool to remove the plastic push clips from the lower engine splash shield.
• Use a 10mm socket to remove any splash shield bolts.
• Lower the splash shield and set it aside.
• A trim clip tool is a small pry tool that removes plastic clips without breaking them.

Step 5: Remove the Serpentine Drive Belt

• Locate the automatic belt tensioner at the front of the engine.
• Use a serpentine belt tool on the tensioner to rotate it and release belt tension.
• Slide the belt off the A/C compressor pulley first, then slowly release the tensioner.
• Remove the belt from the engine if you are replacing it.
• Take a belt-routing photo first.

Step 6: Disconnect the Compressor Electrical Connector

• From underneath, locate the A/C compressor on the lower front side of the engine.
• Use your fingers or a flathead screwdriver to release the connector lock tab.
• Pull the electrical connector straight off the compressor.

Step 7: Remove the A/C Line Bolts

• Use a 12mm socket with a 3/8-inch drive extension set to remove the suction and discharge line retaining bolts from the compressor.
• Carefully pull the A/C lines away from the compressor.
• Remove and discard the old O-rings from the line fittings.
• Cover the open A/C lines with clean caps or tape to keep dirt and moisture out.
• Keep every opening clean and dry.

Step 8: Remove the A/C Compressor

• Support the compressor with one hand.
• Use a 14mm socket and 3/8-inch ratchet to remove the compressor mounting bolts.
• Lower the compressor carefully out from the bottom of the engine bay.
• Note the position of any brackets or spacers before removal.

Step 9: Prepare the New Compressor

• Drain the shipping oil from the new compressor into a clean measuring container.
• Drain the oil from the old compressor into a separate clean measuring container.
• Add the same amount of fresh PAG A/C compressor oil for R-134a systems to the new compressor unless the compressor supplier gives a different instruction.
• Rotate the compressor clutch plate by hand several turns to distribute the oil.
• If the old compressor failed internally, replace the A/C condenser with receiver/drier and flush reusable lines with A/C line flush solvent.

Step 10: Install the New Compressor

• Position the new compressor onto the engine bracket by hand.
• Start all mounting bolts by hand to avoid cross-threading.
• Use a 14mm socket and torque wrench rated 5-80 ft-lbs to tighten the compressor mounting bolts evenly.
• Torque to 25 Nm (18 ft-lbs).

Step 11: Reconnect the A/C Lines

• Install new O-rings from the A/C compressor O-ring seal kit onto the suction and discharge line fittings.
• Lightly coat the new O-rings with clean PAG A/C compressor oil for R-134a systems.
• Push the line fittings squarely into the compressor ports.
• Use a 12mm socket and torque wrench rated 5-80 ft-lbs to tighten the A/C line retaining bolts.
• Torque to 8 Nm (71 in-lbs).

Step 12: Reconnect the Electrical Connector

• Push the compressor electrical connector on until it clicks.
• Gently tug the connector by hand to confirm it is locked.

Step 13: Reinstall the Serpentine Belt

• Route the serpentine drive belt around the pulleys using your belt-routing photo.
• Use the serpentine belt tool to rotate the tensioner.
• Slide the belt over the A/C compressor pulley last.
• Release the tensioner slowly and inspect that the belt sits centered in every pulley groove.

Step 14: Reinstall the Lower Splash Shield

• Raise the splash shield into position.
• Use a 10mm socket to reinstall the bolts.
• Use a trim clip removal tool or your fingers to reinstall the plastic push clips.

Step 15: Reconnect the Battery

• Use a 10mm socket to reconnect the negative battery terminal.
• Tighten the clamp snugly. Do not over-tighten it.

Step 16: Evacuate the A/C System

• Connect the A/C manifold gauge set for R-134a to the service ports.
• Connect the A/C vacuum pump to the manifold gauge set.
• Run the vacuum pump for at least 30-45 minutes to remove air and moisture.
• Close the manifold valves and verify the system holds vacuum for at least 10 minutes.
• If vacuum drops, use a UV leak detection light after adding dye-compatible refrigerant to locate leaks.

Step 17: Recharge the A/C System

• Place the refrigerant container on a refrigerant scale.
• Charge the system with R-134a refrigerant by the exact weight shown on the under-hood A/C label.
• Start the engine and set A/C to MAX cooling with the blower on high.
• Watch the A/C manifold gauge set for R-134a and confirm pressures stabilize normally for the current outside temperature.
• Correct weight matters more than pressure.

---

✅ After Repair

• ✅ Confirm the A/C blows cold from the center vents after several minutes of running.
• ✅ Listen for abnormal compressor noise, belt squeal, or rapid clutch cycling.
• ✅ Inspect both compressor line fittings for oil residue, which can indicate a leak.
• ✅ Recheck that the serpentine belt is centered on all pulleys.
• ✅ If the battery was disconnected, reset the clock and one-touch window function if needed.
• ✅ If cooling is weak, do not add refrigerant blindly. Recheck charge weight and leak-test the system.

---

💰 DIY vs Shop Cost

Shop Cost: $950-$1,700 (parts + labor)

DIY Cost: $350-$800 (parts only)

You Save: $600-$900 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2.5-4.0 hours, plus evacuation and recharge time.

---
