🔧 Escape - A/C Compressor Replacement

The A/C compressor pumps refrigerant through the air conditioning system. To replace it on your Escape, the refrigerant must be recovered first, then the compressor, seals, and refrigerant charge are replaced.

Difficulty Level: Advanced | Estimated Time: 3-5 hours

---

⚠️ Safety & Precautions

• ⚠️ A/C refrigerant is under high pressure and can cause frostbite or eye injury.
• ⚠️ Do not vent refrigerant into the air. Have the system recovered with proper A/C recovery equipment before opening any lines.
• ⚠️ Disconnect the negative battery cable before unplugging the compressor connector.
• ⚠️ Always support your Escape with jack stands. Never work under a vehicle held only by a jack.
• ⚠️ Cap open A/C lines right away to keep dirt and moisture out.
• ⚠️ If the old compressor failed internally, replace the condenser/receiver-drier and expansion valve before recharging.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Wheel chocks
• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• 8mm socket
• 10mm socket
• 13mm socket
• 15mm wrench
• 3/8-inch drive ratchet
• 3/8-inch drive extension
• Torque wrench (inch-pound)
• Torque wrench (foot-pound)
• Flat trim clip remover
• Serpentine belt tool (specialty)
• A/C manifold gauge set (specialty)
• A/C vacuum pump (specialty)
• Refrigerant recovery machine (specialty)
• Digital refrigerant scale (specialty)
• PAG oil measuring cup
• Clean plastic caps or plugs

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• A/C compressor assembly - Qty: 1
• A/C compressor line O-ring seal kit - Qty: 1
• PAG refrigerant oil - Qty: As needed
• R-134a refrigerant - Qty: Charge by under-hood label specification
• Serpentine belt - Qty: 1 if worn, cracked, or oil-soaked
• A/C condenser with receiver/drier - Qty: 1 if compressor failed internally
• A/C expansion valve - Qty: 1 if compressor failed internally

---

📋 Before You Begin

• Park your Escape on level ground, shift to Park, set the parking brake, and chock the rear wheels.
• Have the refrigerant professionally recovered before loosening any A/C line.
• Let the engine cool completely before working near the belt and compressor.
• Disconnect the negative battery cable with a 10mm socket.
• Read the under-hood A/C label for the exact R-134a charge amount.
• An A/C manifold gauge set has hoses and gauges used to vacuum and charge the system.
• A vacuum pump removes air and moisture so the A/C can cool correctly.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Recover the Refrigerant

• Use a refrigerant recovery machine to remove the R-134a from the A/C system.
• If you do not own recovery equipment, have a shop recover the refrigerant first.
• Do not open any A/C fittings until the system is fully recovered.

Step 2: Disconnect the Battery

• Use a 10mm socket to loosen the negative battery terminal.
• Move the cable away from the battery post so it cannot touch.
• Tip: Take photos before unplugging parts.

Step 3: Raise and Support Your Escape

• Place wheel chocks behind the rear tires.
• Use a floor jack to lift the front of your Escape.
• Set the vehicle securely on jack stands.
• Gently shake the vehicle to confirm it is stable before working underneath.

Step 4: Remove the Lower Splash Shield

• Use an 8mm socket to remove the lower shield screws.
• Use a flat trim clip remover to remove any plastic push clips.
• Lower the splash shield and set the fasteners aside.

Step 5: Remove the Serpentine Belt

• Use a serpentine belt tool or 15mm wrench on the belt tensioner.
• A belt tensioner is the spring-loaded pulley that keeps the belt tight.
• Rotate the tensioner to loosen the belt.
• Slide the belt off the A/C compressor pulley first.
• Remove the belt fully if you are replacing it.
• Tip: Photograph the belt routing first.

Step 6: Unplug the Compressor Connector

• Find the compressor at the lower front of the engine.
• Press the plastic lock tab by hand and unplug the electrical connector.
• Pull on the connector body, not the wires.

Step 7: Remove the A/C Lines

• Use a 10mm socket to remove the A/C line retaining bolt from the compressor manifold block.
• The manifold block is the small metal block where both A/C lines attach to the compressor.
• Pull the line block straight away from the compressor.
• Remove and discard the old O-rings.
• Cap the open lines with clean plastic caps or plugs.

Step 8: Remove the Old Compressor

• Support the compressor with one hand.
• Use a 13mm socket, 3/8-inch drive ratchet, and 3/8-inch drive extension to remove the compressor mounting bolts.
• Lower the compressor out from underneath your Escape.

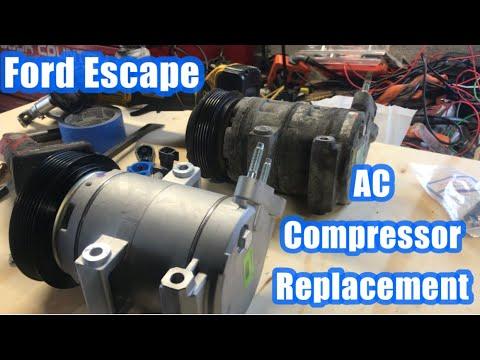

• Compare the old and new compressors before installing the new one.

Step 9: Set the Compressor Oil Amount

• Use a PAG oil measuring cup to drain oil from the old compressor and measure it.
• Drain the shipping oil from the new compressor into a clean container.
• Add fresh PAG refrigerant oil to the new compressor equal to the amount removed from the old compressor, unless the compressor instructions say otherwise.
• Turn the compressor hub by hand 8-10 turns to spread the oil inside.
• Tip: Do not guess oil quantity.

Step 10: Install the New Compressor

• Lift the new compressor into place from underneath.
• Start all mounting bolts by hand first.
• Use a 13mm socket and foot-pound torque wrench to tighten the compressor bolts to Torque to 25 Nm (18 ft-lbs).

Step 11: Install New O-Rings and A/C Lines

• Coat the new O-rings lightly with clean PAG refrigerant oil using a gloved finger.
• Install the new O-rings on the A/C line fittings.
• Push the A/C line block straight onto the compressor.
• Use a 10mm socket and inch-pound torque wrench to tighten the retaining bolt to Torque to 9 Nm (80 in-lbs).

Step 12: Reconnect the Compressor Connector

• Push the compressor electrical connector on until it clicks.
• Lightly tug the connector body to confirm it is locked.

Step 13: Reinstall the Serpentine Belt

• Route the belt around the pulleys using your photo or the belt routing label.
• Use the serpentine belt tool or 15mm wrench to rotate the tensioner.
• Slide the belt onto the compressor pulley last.
• Make sure the belt ribs sit fully in all pulley grooves.

Step 14: Reinstall the Splash Shield

• Raise the splash shield into place.
• Use a flat trim clip remover to help reinstall the plastic clips.
• Use an 8mm socket to reinstall the screws snugly.

Step 15: Lower the Vehicle and Reconnect Battery

• Use the floor jack to raise your Escape slightly off the stands.
• Remove the jack stands.
• Lower the vehicle slowly.
• Use a 10mm socket to reconnect the negative battery cable.

Step 16: Vacuum the A/C System

• Connect the A/C manifold gauge set to the high-side and low-side service ports.
• Connect the center hose to the A/C vacuum pump.
• Open both manifold valves and run the pump for 30-45 minutes.
• Close both valves and turn the pump off.
• Wait 10-15 minutes. If vacuum drops, there is a leak that must be fixed before charging.

Step 17: Recharge the A/C System

• Place the R-134a refrigerant container on a digital refrigerant scale.
• Charge the system with the exact amount listed on your Escape’s under-hood A/C label.
• Use the A/C manifold gauge set and charge by weight, not by pressure alone.
• Start the engine only when the charging process calls for low-side vapor charging.
• Set A/C to coldest setting and blower to medium-high.
• Close the manifold valves once the correct refrigerant weight has been added.

---

✅ After Repair

• Start your Escape and turn the A/C to Max.
• Confirm the compressor clutch engages.
• Check for cold air at the center vents after a few minutes.
• Inspect the compressor line fittings for oily residue or leaks.
• Listen for belt squeal or grinding noises.
• If cooling is weak, recheck charge weight, leaks, belt routing, and the compressor connector.

---

💰 DIY vs Shop Cost

Shop Cost: $850-$1,400 (parts + labor)

DIY Cost: $300-$650 (parts only, not including recovery/recharge equipment)

You Save: $400-$750 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2.5-4.0 hours.

---
