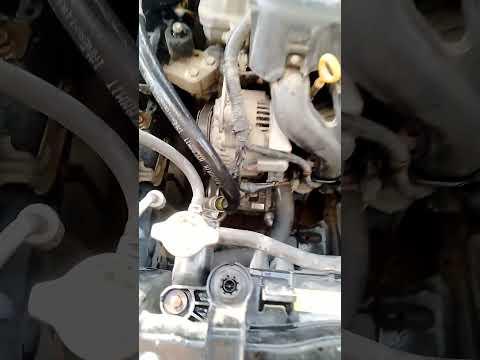

🔧 Corolla - A/C Compressor Replacement

Replacing the A/C compressor on your Corolla involves removing the drive belt, disconnecting the refrigerant lines, swapping the compressor, then pulling a vacuum and recharging the system. The most important part is handling refrigerant correctly and keeping dirt/moisture out of the A/C lines.

Difficulty Level: Advanced | Estimated Time: 3-6 hours

---

⚠️ Safety & Precautions

• ⚠️ Do not vent refrigerant to the air—have the system professionally recovered first.
• ⚠️ Wear safety glasses and gloves; refrigerant/oil can cause frostbite and eye injury.
• ⚠️ Keep all A/C openings capped; moisture/dirt can damage the new compressor.
• ⚠️ Disconnect the negative battery cable before working near the belt and compressor wiring.
• ⚠️ Support the car with jack stands on a level surface; never rely on a jack alone.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• Metric socket set (8mm-19mm)
• 3/8" drive ratchet
• 3/8" drive torque wrench (10-100 Nm range)
• Extensions (3" and 6")
• Metric wrench set (10mm-19mm)
• Trim clip remover
• Flathead screwdriver
• Fender cover
• Manifold gauge set for R-134a (specialty)
• Vacuum pump (specialty)
• Refrigerant scale (specialty)
• Refrigerant recovery machine (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• A/C compressor assembly - Qty: 1
• A/C compressor clutch/coil (if not included with compressor) - Qty: 1
• A/C line O-ring set - Qty: 1
• PAG A/C oil (ND-OIL 8 / equivalent PAG46) - Qty: 1
• R-134a refrigerant - Qty: 2-3 cans
• Serpentine drive belt - Qty: 1
• Receiver/drier or condenser assembly (if required due to compressor failure debris) - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Have an A/C shop recover the refrigerant first (or confirm the system is already empty).
• Disconnect the negative battery cable using a 10mm socket.
• Uncommon tools: a manifold gauge set measures A/C pressures; a vacuum pump removes air/moisture before recharge.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Confirm the refrigerant is safely recovered

• If you do not have a refrigerant recovery machine (specialty), stop here and have a shop recover the refrigerant.
• Do not loosen A/C line bolts until recovery is confirmed.

Step 2: Raise the front of the car and remove lower covers

• Lift the front with a floor jack and support with jack stands.
• Remove the lower engine splash shield using a 10mm socket and trim clip remover.

Step 3: Remove the drive belt

• Relieve belt tension using a 19mm wrench on the belt tensioner.
• Slip the belt off the A/C compressor pulley and remove it from the engine bay.
• Tip: Snap a belt-routing photo first.

Step 4: Disconnect the compressor electrical connector

• Unplug the compressor clutch connector by releasing the lock tab with a flathead screwdriver.

Step 5: Disconnect the A/C refrigerant lines at the compressor

• Place a rag under the connection area.
• Remove the suction/discharge line retaining bolt(s) using a 10mm socket.
• Gently wiggle the manifold block off the compressor (do not pry on the aluminum lines).
• Remove and discard the old O-rings. Install new O-rings lightly coated with PAG A/C oil.
• Reinstall the line/manifold retaining bolt(s) and Torque to 9 Nm (80 in-lbs).

Step 6: Remove the A/C compressor

• Support the compressor by hand while removing mounting bolts using a 12mm socket and extension.
• Remove the compressor from below.
• Install the new compressor and start all bolts by hand to avoid cross-threading.
• Tighten the compressor mounting bolts and Torque to 25 Nm (18 ft-lbs).

Step 7: Verify compressor oil amount (critical)

• If the new compressor is pre-filled, verify it matches what the compressor manufacturer specifies for your Corolla.
• If you drained the old compressor, measure what came out and add the same amount to the new unit using PAG A/C oil (ND-OIL 8 / equivalent PAG46).
• Tip: Too much oil reduces cooling.

Step 8: Reinstall the drive belt

• Route the belt correctly, then relieve tension with a 19mm wrench and slip the belt onto the last pulley.
• Double-check the belt is fully seated in every pulley groove.

Step 9: Reinstall splash shields and lower the car

• Reinstall the splash shield using a 10mm socket and trim clip remover.
• Lower the car safely.

Step 10: Evacuate and recharge the A/C system

• Connect the manifold gauge set for R-134a (specialty) and pull vacuum with the vacuum pump (specialty) for at least 30 minutes.
• Verify vacuum holds (no leak) for 10-15 minutes with the pump off.
• Recharge by weight using a refrigerant scale (specialty) with R-134a refrigerant (charge amount is under-hood label specific to your Corolla).
• If you cannot recharge by weight, have a shop evacuate/recharge to factory spec.

---

✅ After Repair

• Reconnect the battery negative terminal using a 10mm socket.
• Start the engine and turn A/C on MAX; confirm the compressor clutch engages and the air gets cold.
• Check for leaks at the compressor line connection (oil residue usually means a leak).
• If cooling is weak or pressures look abnormal, stop and re-check charge amount and for leaks.

---

💰 DIY vs Shop Cost

Shop Cost: ₹25,000-₹60,000 (parts + labor + evac/recharge)

DIY Cost: ₹12,000-₹40,000 (parts only, assuming you can evac/recharge)

You Save: ₹13,000-₹20,000 by doing it yourself!

Shop labor rates vary but typically run ₹1,000-₹2,500/hour. This repair takes a shop approximately 2-4 hours.

---
