🔧 AC Compressor - Replacement

Replacing the AC compressor means removing the belt-driven pump, recovering the refrigerant, and installing the new unit with fresh seals and the correct oil amount. On your F-150, the system must be properly evacuated before any lines are opened, then vacuum-tested and recharged after installation.

Difficulty Level: Advanced | Estimated Time: 4-7 hours

---

⚠️ Safety & Precautions

• The AC system contains refrigerant under pressure. It must be recovered with proper equipment before any line is disconnected.
• Wear safety glasses and gloves. Refrigerant and oil can cause frostbite and eye injury.
• Disconnect the negative battery cable before starting. The engine bay has moving belt-driven parts and electrical connectors.
• Do not run the compressor dry. Add the correct amount of PAG oil to the new compressor before installation.
• Replace any opened O-rings and keep dirt out of the AC lines.
• If the compressor failed internally, replace the accumulator and orifice tube as well.

---

🔧 Required Tools

You'll need the following tools for this repair:

• R-134a recovery machine (specialty)
• Manifold gauge set (specialty)
• Vacuum pump (specialty)
• 10mm socket
• 13mm socket
• 15mm socket
• 8mm socket
• Ratchet
• Breaker bar
• Belt tensioner tool
• Line wrench set
• Torque wrench
• Drain pan
• Trim tool
• Safety glasses
• Nitrile gloves
• Jack stands

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• AC compressor - Qty: 1
• AC compressor clutch/pulley assembly - Qty: 1 if not included with compressor
• Receiver drier / accumulator - Qty: 1
• Orifice tube - Qty: 1
• PAG refrigerant oil - Qty: 1 bottle
• R-134a refrigerant - Qty: as required for recharge
• AC O-ring kit - Qty: 1
• Serpentine belt - Qty: 1 if worn or contaminated

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Make sure the ignition is off and the key is removed.
• Have the refrigerant professionally recovered before opening the AC system.
• If the old compressor failed badly, plan to replace the accumulator and orifice tube.
• Disconnect the negative battery cable before loosening any belt or compressor hardware.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Recover the refrigerant

• Use an R-134a recovery machine (specialty) to remove all refrigerant from the system.
• Do not open any AC lines until the system is fully recovered.

Step 2: Disconnect the battery

• Use a 10mm socket to remove the negative battery cable.
• Move the cable aside so it cannot touch the terminal.

Step 3: Remove the serpentine belt

• Use a belt tensioner tool to relieve tension on the belt.
• Slip the belt off the compressor pulley and remove it from the engine.
• Take a photo of the belt routing first.

Step 4: Remove access components if needed

• Use an 8mm socket and 10mm socket to remove any splash shields, intake ducting, or covers blocking access.
• Set all fasteners aside in order.

Step 5: Disconnect the AC lines

• Use a line wrench set to loosen the refrigerant line fittings at the compressor.
• Cap or cover the open lines right away to keep out moisture and dirt.
• Remove and discard the old O-rings.

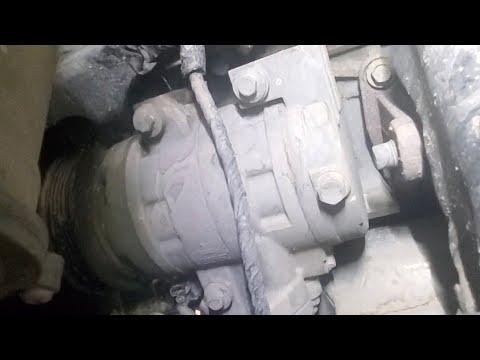

Step 6: Remove the compressor

• Use a 13mm socket and 15mm socket to remove the compressor mounting bolts.
• Support the compressor with one hand while removing the last bolt.
• Lower the compressor out of the engine bay.

Step 7: Prepare the new compressor

• Add the correct amount of PAG refrigerant oil to the new compressor.
• Rotate the compressor hub by hand a few turns to spread the oil.
• Install new O-rings on the line fittings using clean oil as lubricant.

Step 8: Install the new compressor

• Position the new compressor in place and hand-start all mounting bolts.
• Use a 13mm socket and 15mm socket to tighten the bolts.
• Torque to factory specification.
• Reconnect the refrigerant lines with a line wrench set.
• Torque to factory specification.

Step 9: Replace the accumulator and orifice tube

• Use a line wrench set to remove the accumulator if accessible.
• Install the new accumulator and new orifice tube.
• Use new O-rings and torque to factory specification on all fittings.

Step 10: Reinstall the belt and covers

• Use the belt tensioner tool to install the serpentine belt.
• Make sure the belt is seated in every pulley groove.
• Reinstall any covers, ducts, or shields with an 8mm socket and 10mm socket.

Step 11: Evacuate and recharge the system

• Use a vacuum pump (specialty) and manifold gauge set (specialty) to pull a deep vacuum for at least 30 minutes.
• Verify the system holds vacuum before charging.
• Recharge with the correct amount of R-134a refrigerant.
• Charge to factory specification.

---

✅ After Repair

• Start the engine and turn the AC on.
• Check for cold air, unusual noises, and compressor cycling.
• Inspect all fittings for leaks.
• Confirm belt tracking is straight and smooth.
• If cooling is weak, recheck refrigerant charge and system pressures with the gauge set.

---

💰 DIY vs Shop Cost

Shop Cost: $1,100-$1,900 (parts + labor)

DIY Cost: $350-$750 (parts only)

You Save: $750-$1,150 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 4-7 hours.

---
