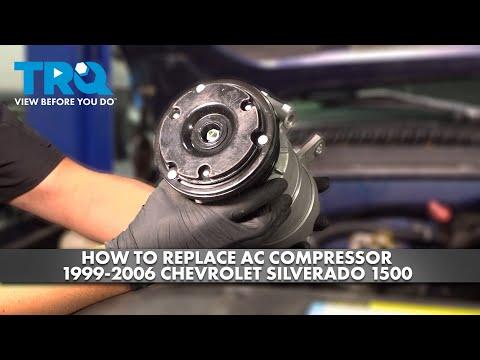

🔧 A/C Compressor - Replacement

The A/C compressor on your Silverado drives refrigerant through the air conditioning system. Replacing it requires recovering the refrigerant, removing the belt and lines, swapping the compressor, then evacuating and recharging the system with the correct oil and refrigerant amount.

Difficulty Level: Intermediate | Estimated Time: 3-5 hours

---

⚠️ Safety & Precautions

• Refrigerant must be recovered before opening the system. Do not vent it to the air.
• Wear safety glasses and gloves. Refrigerant can freeze skin and eyes.
• Work with the engine off and cool. The belt and pulleys can cause serious injury.
• If the old compressor failed internally, the system should be flushed and the orifice tube/accumulator replaced.
• Use the correct PAG oil type and amount for this A/C system.
• Battery disconnect is recommended before starting work near the compressor and belt drive.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• 10mm socket
• 13mm socket
• 15mm socket
• Ratchet
• Long extension
• Belt tensioner tool (specialty)
• Torque wrench
• Line wrench set
• Drain pan
• A/C manifold gauge set (specialty)
• Vacuum pump (specialty)
• R134a recharge machine or refrigerant cans with scale
• Floor jack (rated 3-ton minimum)
• Jack stands

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• A/C compressor - Qty: 1
• A/C compressor clutch relay - Qty: 1
• Compressor oil (PAG 46) - Qty: 1 bottle
• New O-rings for A/C line connections - Qty: 1 set
• Serpentine belt - Qty: 1
• A/C accumulator or receiver drier - Qty: 1
• Orifice tube - Qty: 1
• R134a refrigerant - Qty: 1 system charge

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Recover the refrigerant with proper A/C recovery equipment before opening any line.
• Disconnect the negative battery cable before removing the belt or compressor.
• If the compressor seized or sent debris through the system, plan to replace the accumulator and orifice tube and flush the lines/condenser as needed.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Recover the refrigerant

• Use an A/C recovery machine to remove all refrigerant from the system.
• Do not start any disassembly until the system is fully evacuated.

Step 2: Disconnect the battery

• Use a 10mm socket to remove the negative battery cable.
• Prevents accidental short circuits.

Step 3: Remove the serpentine belt

• Use a belt tensioner tool to rotate the tensioner and slip the belt off the compressor pulley.
• Inspect the belt for cracks or glazing. Replace it if worn.

Step 4: Raise the vehicle

• Use a floor jack and secure the truck on jack stands.
• Remove the right front wheel if needed for access.

Step 5: Remove the A/C line bolts

• Use a 13mm socket or line wrench set to remove the A/C line retaining bolt(s) at the compressor.
• Cap or cover the lines right away to keep dirt out.
• Replace the O-rings with new ones lubricated with clean PAG oil.

Step 6: Remove the compressor

• Use a 15mm socket and ratchet with an extension to remove the compressor mounting bolts.
• Support the compressor as you remove the last bolt.
• Lower it out carefully from the engine bay.

Step 7: Prep the new compressor

• Drain any shipping oil from the new compressor if instructed by the part supplier.
• Add the correct amount of PAG 46 compressor oil to the new unit.
• Turn the compressor hub by hand several times to distribute oil.

Step 8: Install the new compressor

• Position the compressor and start all mounting bolts by hand.
• Use a 15mm socket and torque wrench to tighten the bolts.
• Torque to 25 Nm (18 ft-lbs).

Step 9: Reconnect the A/C lines

• Install new lubricated O-rings on the line fittings.
• Use a 13mm socket or line wrench set to reinstall the line retaining bolt(s).
• Torque to 18 Nm (13 ft-lbs).
• Keep the fittings clean.

Step 10: Reinstall the belt

• Route the belt correctly and use the belt tensioner tool to reinstall it.
• Double-check belt alignment on every pulley.

Step 11: Evacuate and recharge the system

• Use an A/C manifold gauge set and vacuum pump to evacuate the system for at least 30 minutes.
• Hold vacuum and verify there are no leaks.
• Recharge with the correct amount of R134a refrigerant specified on the underhood label.

Step 12: Reconnect the battery and test

• Reconnect the negative battery cable with a 10mm socket.
• Start the engine and turn the A/C on MAX.
• Check for cold air, abnormal noise, and leaks at the compressor fittings.

---

✅ After Repair

• Verify compressor clutch engagement and smooth operation.
• Check vent temperature after 5-10 minutes of operation.
• Inspect all A/C connections for oil or dye seepage.
• If the old compressor failed hard, recheck the system after a short drive for contamination symptoms.

---

💰 DIY vs Shop Cost

Shop Cost: $900-$1,600 (parts + labor)

DIY Cost: $350-$800 (parts only)

You Save: $550-$800 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 3-5 hours.

---
